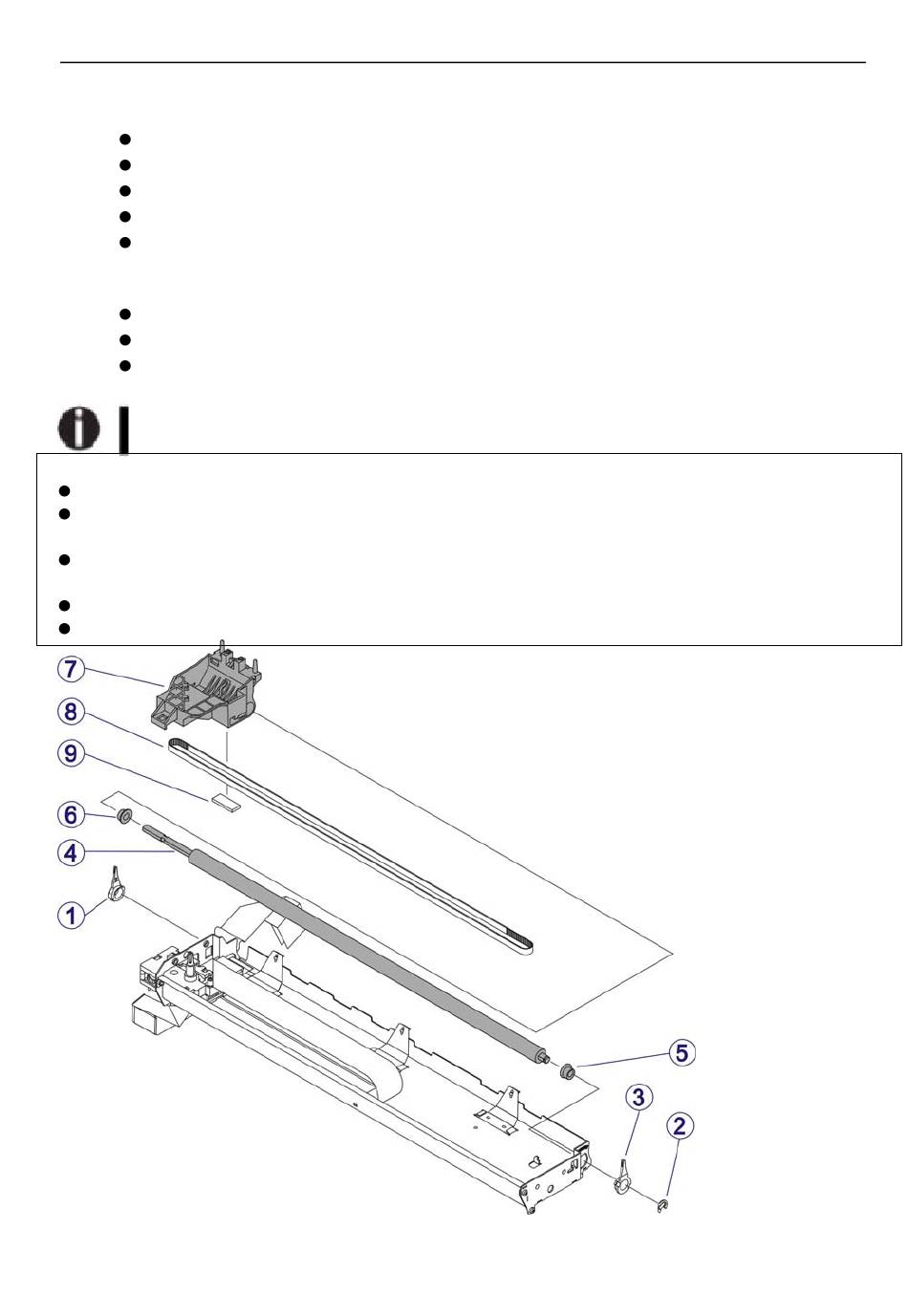

3.2.25 Disassemble the Carriage
1) Disassemble the Carriage Guide Shaft D14.0
Pull out the Head Gap Sleeve. →①
Take out the E-ring. →②
Pull out the Head Gap Sleeve.→③
Pull out the Carriage Guide Shaft D14.0.→④
Take out the Parallelism Sleeves.→⑤,⑥
2) Disassemble the Carriage
Take out the Carriage. →⑦
Take out the Timing Belt. →⑧
Take out the Felt TW43. →⑨
Precautions on assembling the Carriage and its Shaft:
The longer portions (axially) of the Parallelism Sleeves are facing outwards.
Wipe the hole of the Carriage with a lint-free cloth soaked with alcohol. Ensure the
Carriage can move within the Shaft freely.
Guide the Shaft through the circular hole on the Side Plate Left and then guide the right
end of the Shaft through the Side Plate Right.
Ensure the Timing Belt is not press during the whole process.
Cap the two ends of the Shaft with Head Gap Sleeves.
