3.2.6 Disassemble the Head Gap Lever

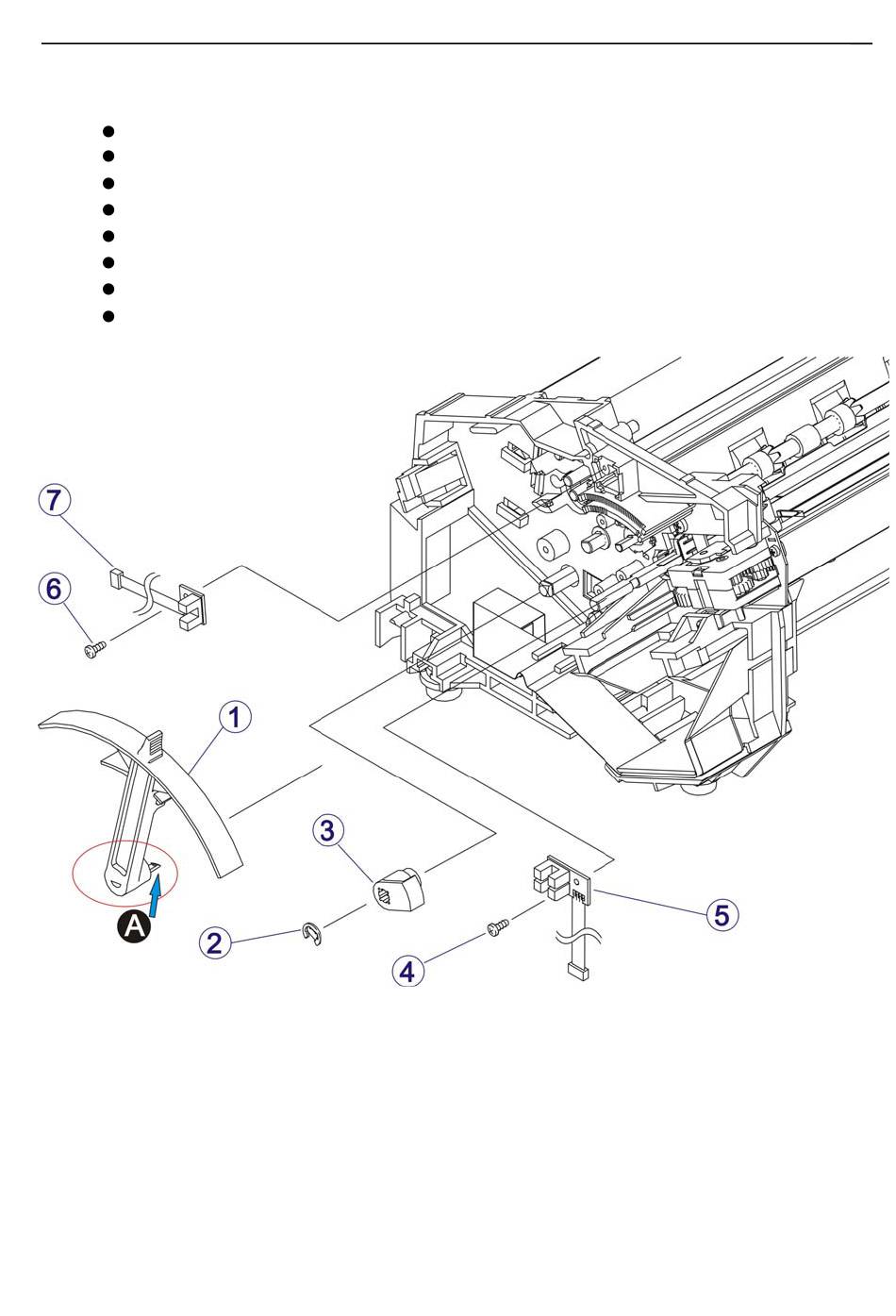

1) Disassemble the Head Gap Lever
Slightly unlock the latch at A.
Pull out the Head Gap Lever→①
Pry out the E-ring→②
Remove Code Wheel of Paper Path Select→③
Unfasten the fixing screw→④
Remove the Paper Path Select Sensor Assy→⑤
Unfasten the fixing screw→⑥
Remove the Head Gap Sensor Assy→⑦
