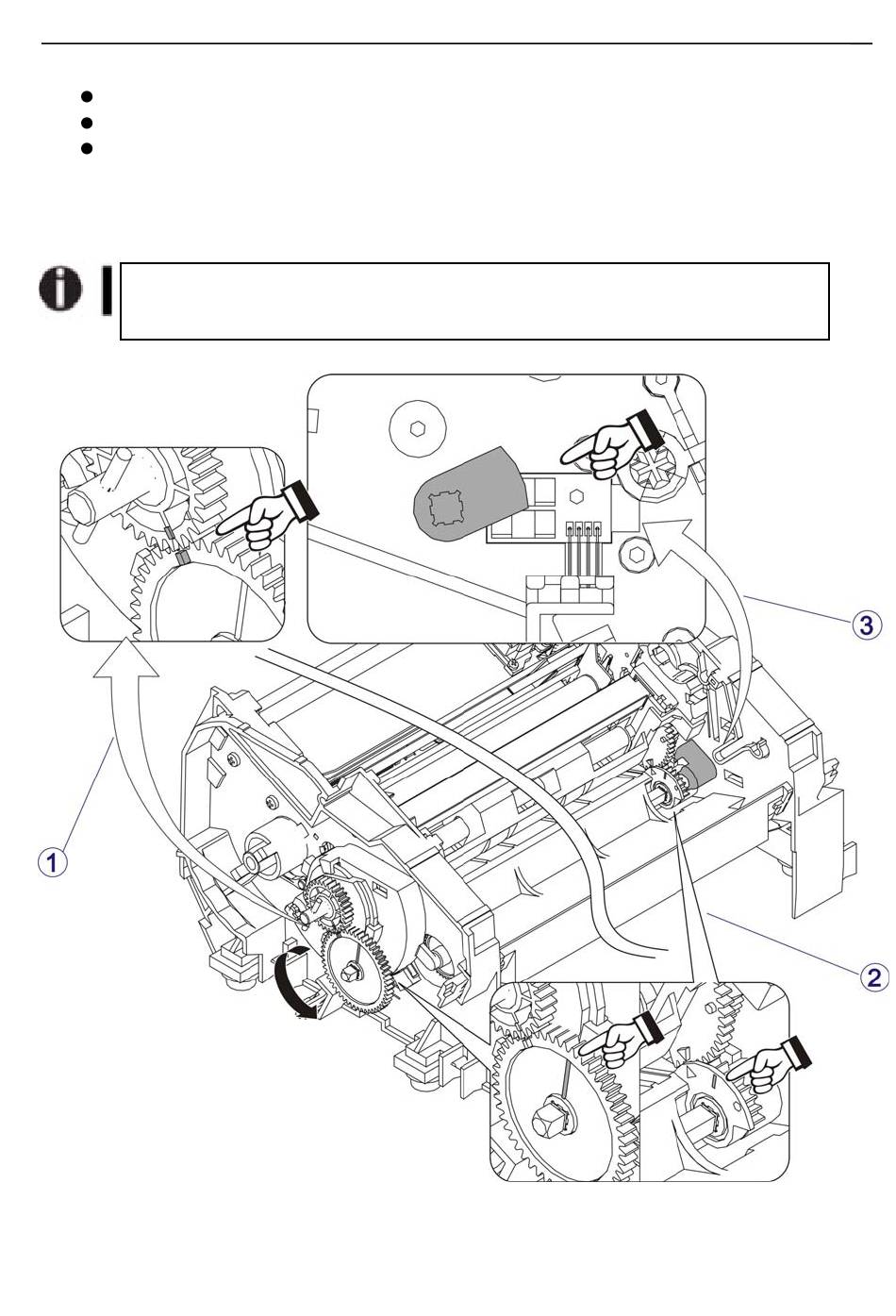

3.2.8 Assemble the Paper Path Select Code Wheel
Rotate Gear M0.6/0.75 T60/16 to align in markings with Gear M1.0 T36. →①
Rotate Toothed Segment m1xt30 till the marking is vertical. →②
Install the Code Wheel to left end of the Shaft Square. While the square shaft is set at
this position, the installed Code Wheel should be blocking the upper part of the Paper
Path Select Sensor. (The upper sensor is OFF state, while the lower sensor is ON
state.) →③
Make sure the 3 markings are in correction positions, otherwise improper
setting of paper path occurs.
