Tally Dascom 2600 2610
3.2.18 Assemble the Shaft Square and Toothed Segment
1) Assemble
The gears of the Toothed Segments on both ends are facing outward.
The gears of the Toothed Segments on both ends are facing the same direction.
The longer end of the Square Shaft is on the right side.
Hold the Toothed Segments in position by E-ring.
Install the Cover Transverse to the bottom of the Transverse.
2) Adjustment
Rotate the Square Shaft and the Cam Wheel to have the triangular markings in phase
on the left side.
Similarly, the round markings on the right side are in phase.

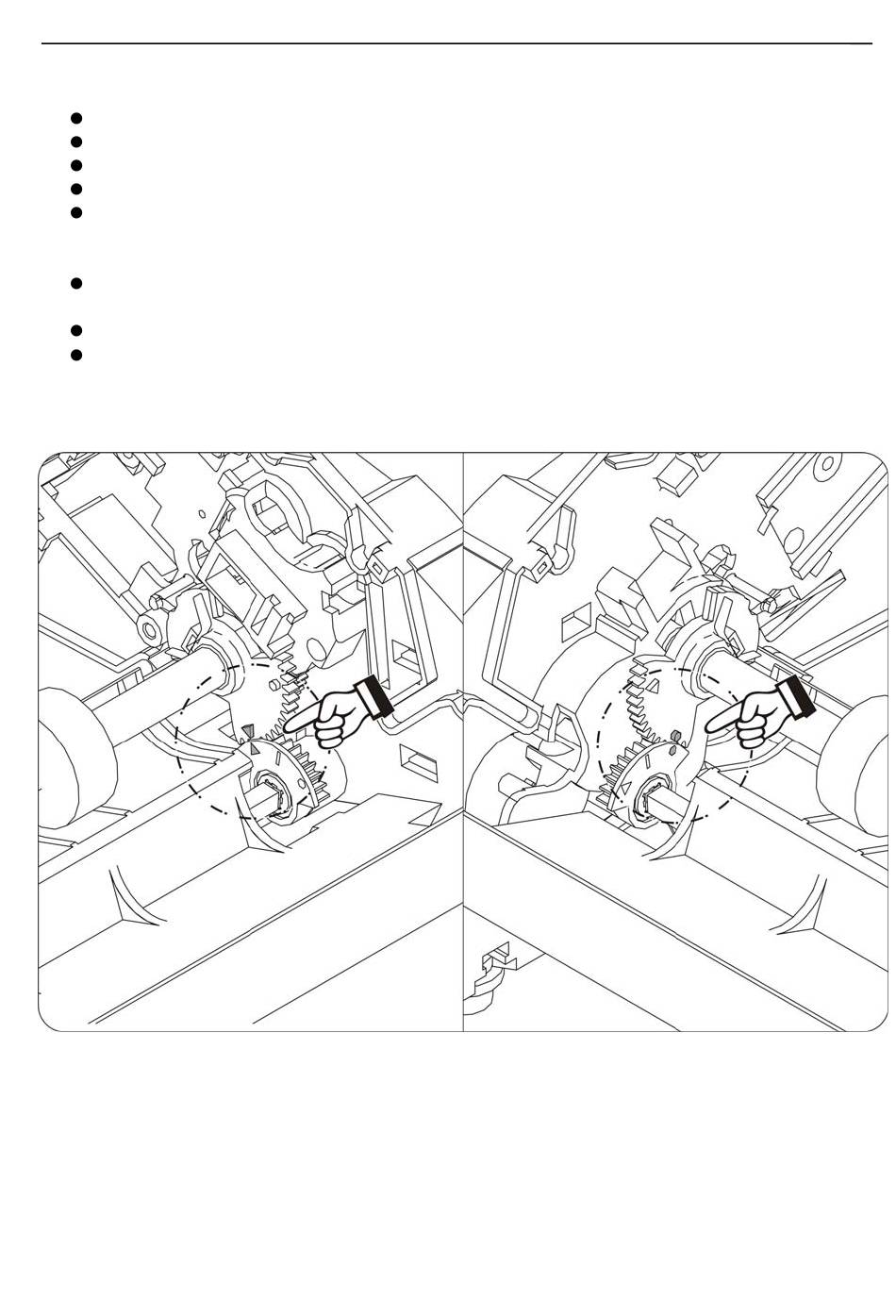

Ensure the alignment of the markings on both sides as illustrated in the below
diagram.
(Left)
35
。
(Right)
