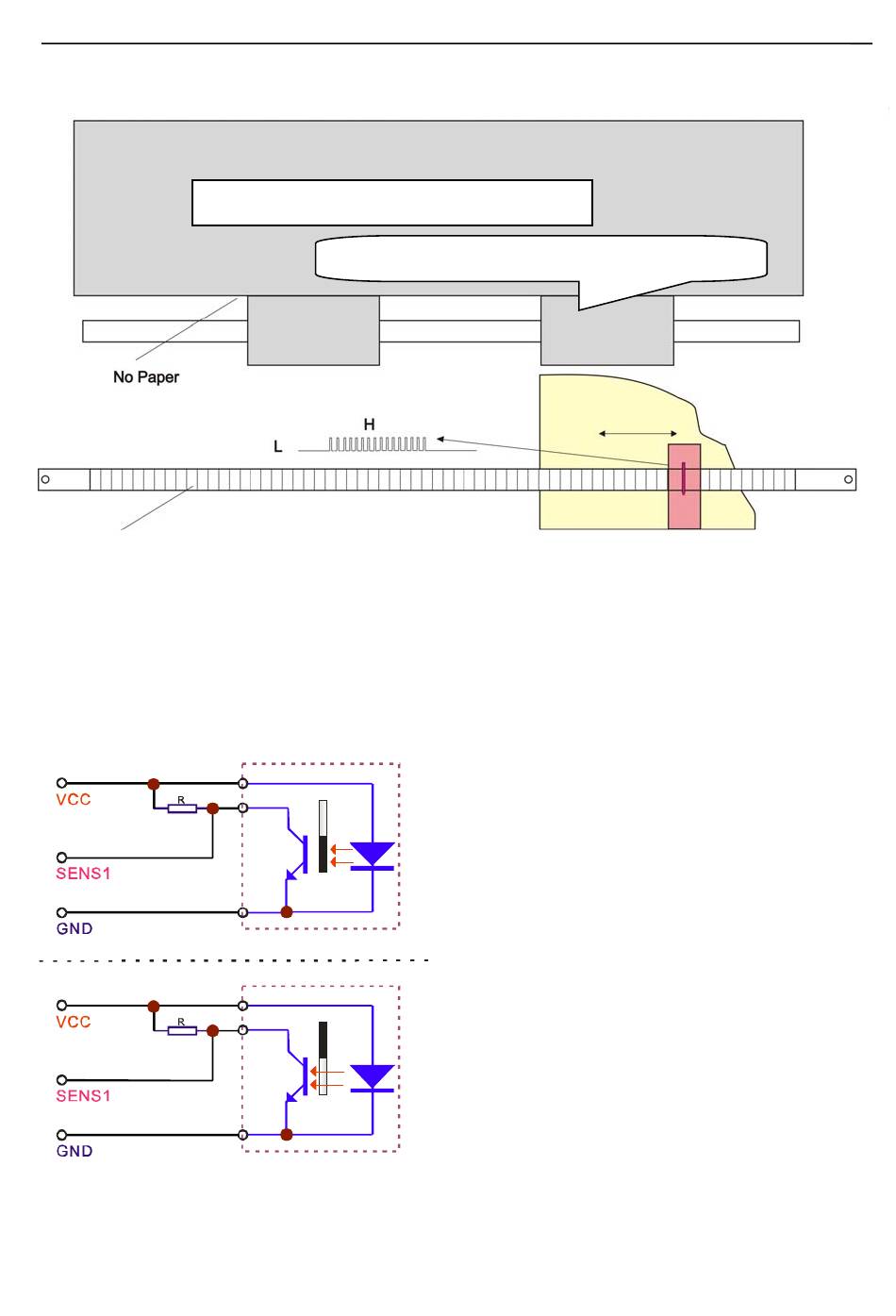

2.1.1 Horizontal Position Sensor
LOWER MAIN FRICTION SHAFT ASSY
CODE STRIPE 1/180"
Functional Description:
Working with the code stripe, the sensor determines the current position and the home
position of the carriage.
2.1.2 Head Gap Sensor
LOWER SLAVE FRICTION SHAFT ASSY
CARRIAGE/HORIZONTAL POSITION SENSOR ASSY
Functional Description:
It is transmissive type. The emitted light
from the LED is blocked by setting the Gap
Lever above 2-part, which indicates the
installation of thick media.
Emitted light is through when the Gap
Lever is set below 2-part.
The Menu Setting determines if stronger
impact force is applied on printing thick media.
