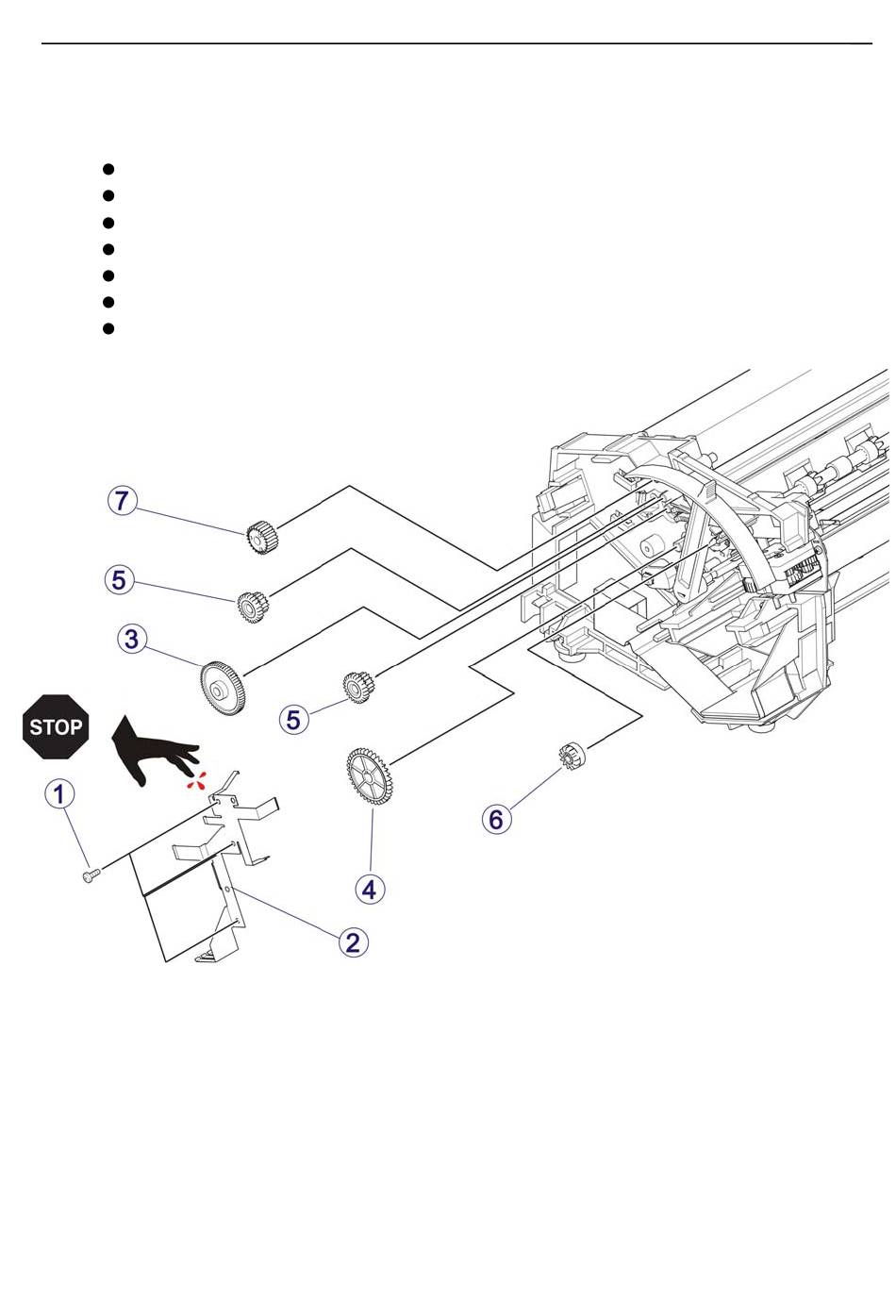

3.2.5 Disassemble the Paper Feed Gear Chain
1) Disassemble the Paper Feed Gear Chain
Unfasten the 4 fixing screws→①
ESD Sheet Metal→②
Gear m0.6xt60/m0.75xt16→③
Gear m1xt36→④
Gear m0.75/0.75 t24/16, Qty: 2 →⑤
Gear m1xt13→⑥
Gear m0.75xt24→⑦
