Tally Dascom 2600 2610

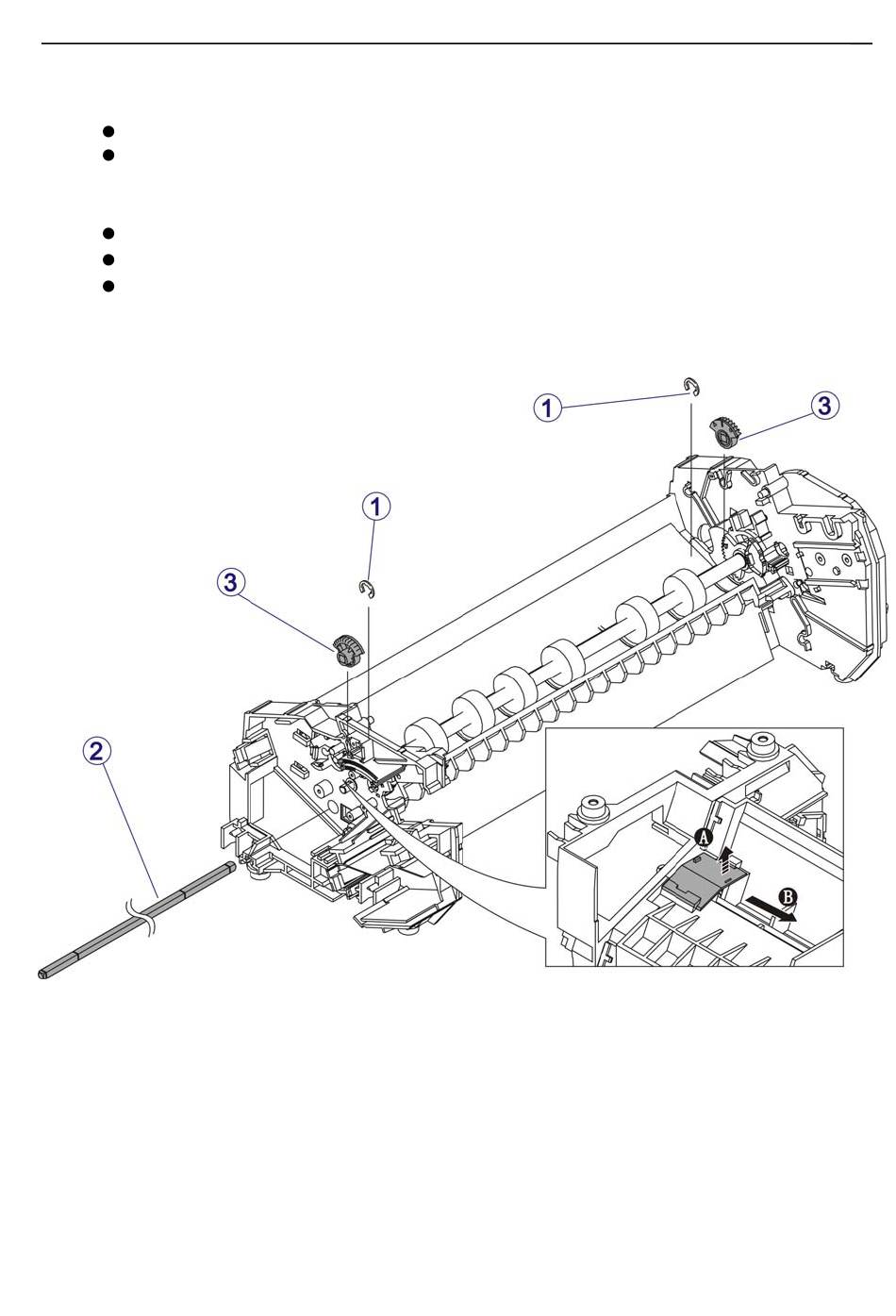

3.2.17 Disassemble the Shaft Square Paper Path
1) Disassemble the Cover Transverse
Pry the Cover off from the latch →A
Remove the Cover →B
2) Disassemble the Shaft Square Paper Path
Remove two E-rings→①
Slide the Square Shaft out→②
Remove the two Toothed Segments M1.0→③
34
