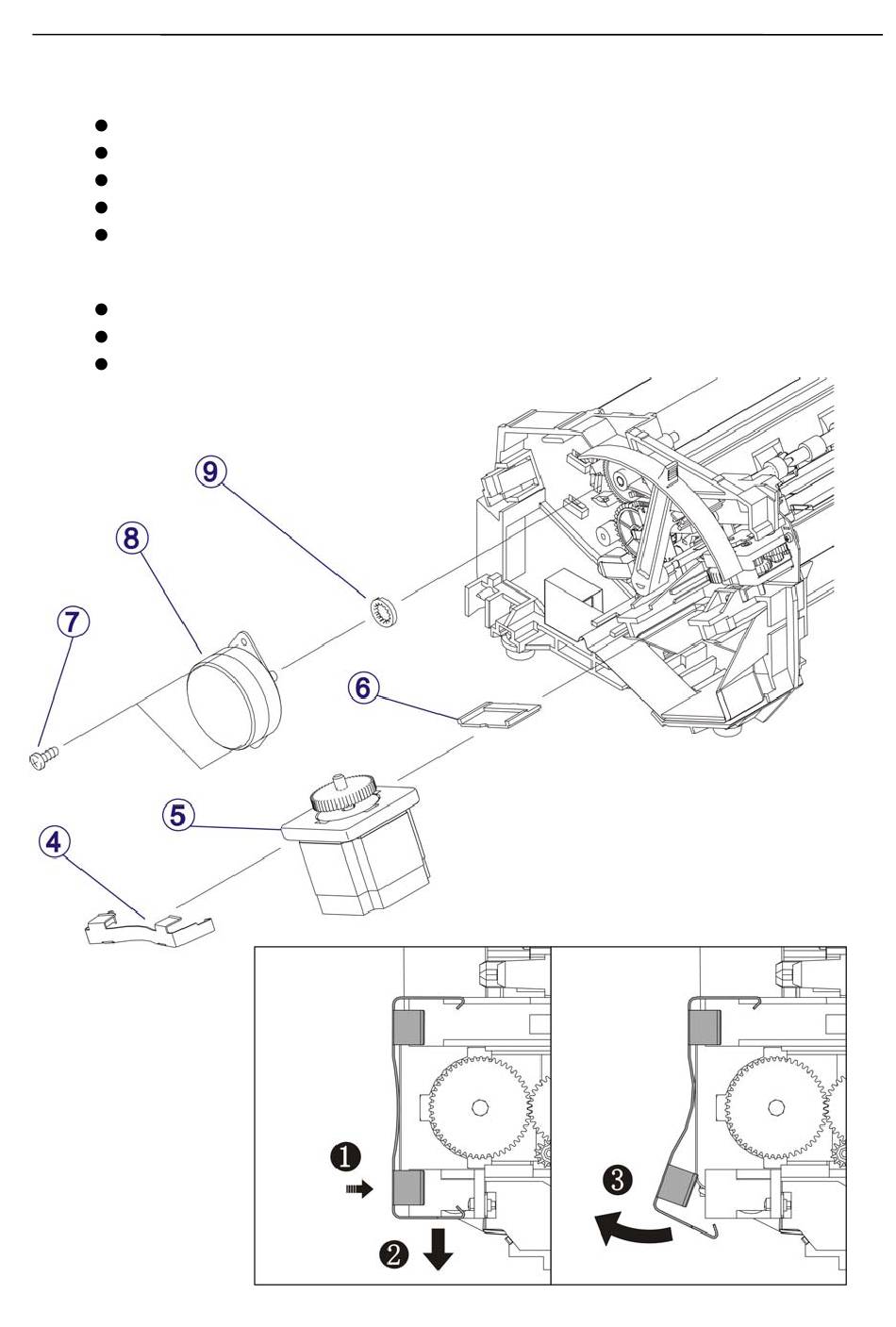

3.2.4 Disassemble the Carriage Motor and the Paper Feed Motor
1) Disassemble the CR Motor
Press the CR Motor Clamp to the right.→①
Pry out 1 of the hook on the CR Motor Clamp.→②
Remove the CR Motor Clamp.→③,④
Remove the CR Motor Assembly.→⑤
Remove the Distance Holder.→⑥
2) Disassemble the PF Motor
Unfasten the 2 fixing screws.→⑦
Remove the PF Motor Assembly.→⑧
Remove the Guide Ring.→⑨
