Attaching Cables - NEC VERSA DOCKING STATION 6000 Manual

Attaching Cables

Once the adapter is secured to the docking station drive cage, you'll need to
connect the IDE signal cable, the power cable, and, optionally, the audio ca-
ble that ships with the NEC Versa Docking Station 6000.
Attach the cables to the interface board as follows.
1.
4-48 Adding Options
Look in the package of cables that came with the docking station and lo-
cate the 5-connector power cable.
If an optional diskette drive or hard drive is already installed, the power
cable is already attached to these options.

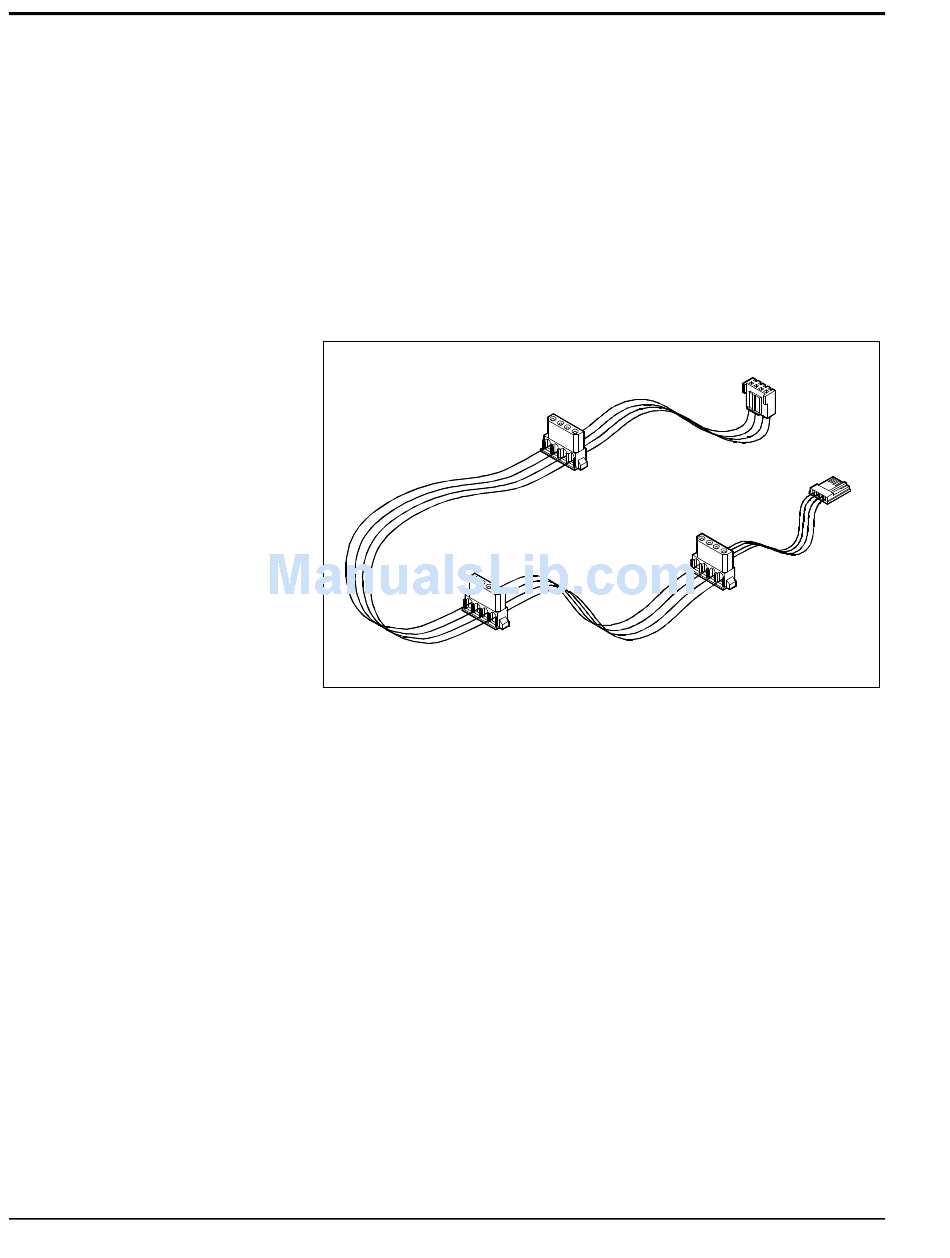

Locating the power cable
