1-4 Introducing the NEC Docking Station 6000
Electronic Docking Mechanism – This innovative docking mechanism
makes docking and undocking easier than ever.
After setting up the hardware, all you do is position the NEC Versa on
the docking station and give it a firm push towards the connector. The
mechanism reaches out, grasps the NEC Versa, and completes the dock-
ing process.
Expansion Connector — This connector attaches the NEC Versa and the
docking station interface board.
Air Vents – These allow air circulation to keep the docking station and
its components from over heating.
LEDs – Five LEDs on the front of the docking station let you monitor
docking status, hard disk drive access, diskette drive access, NEC Versa
battery, and Keylock status. (LED functions and lighting sequences are
described in the next section under "LEDs.")
Volume Control Knob – This conveniently located knob lets you control
the volume of sound output through docking station speakers.
Power Button – The power button on the front panel of the docking
station turns on and off power to the docked NEC Versa. For Plug and
Play systems using Windows 95, this button acts as a Resume switch if
the NEC Versa is in Suspend mode.

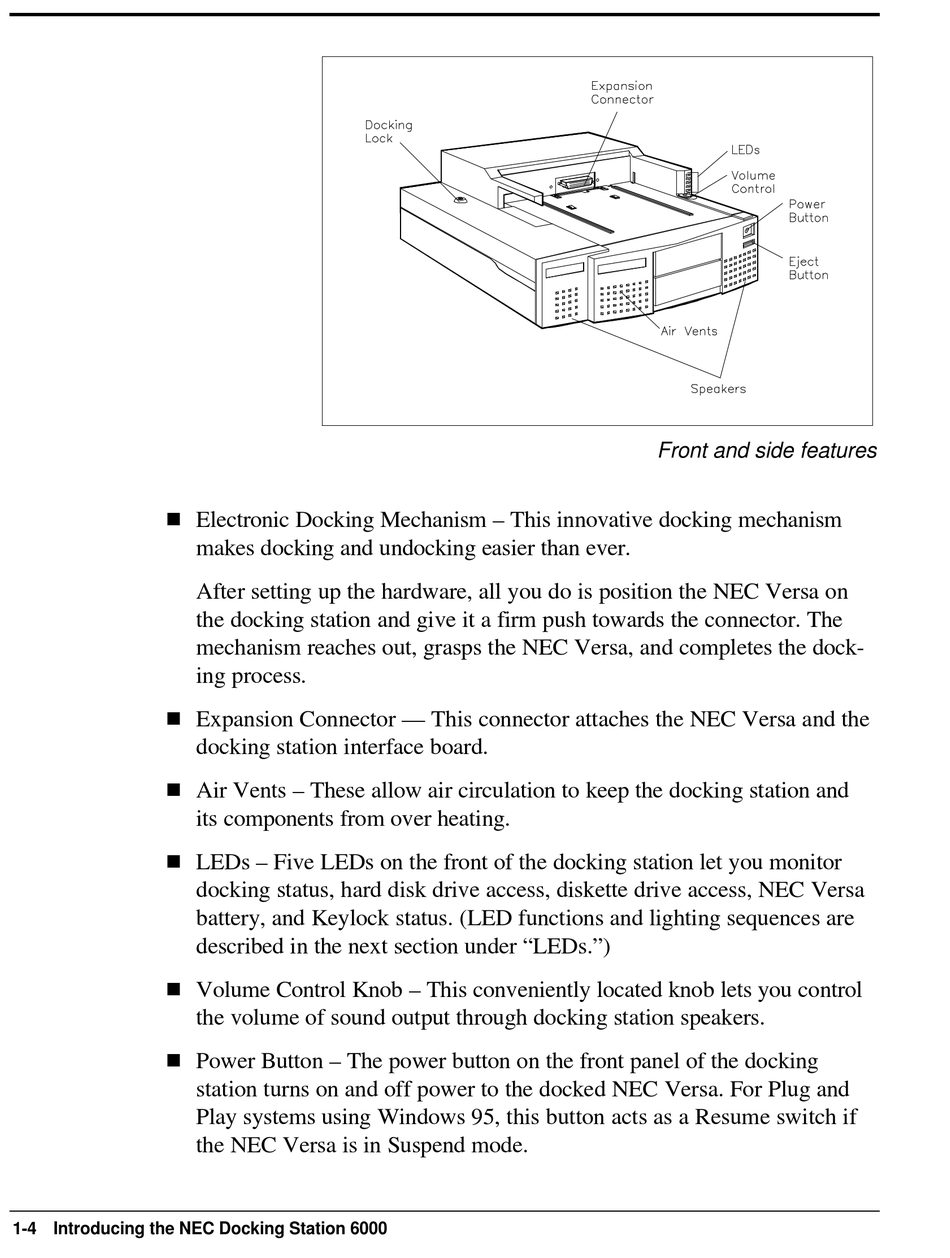

Front and side features
