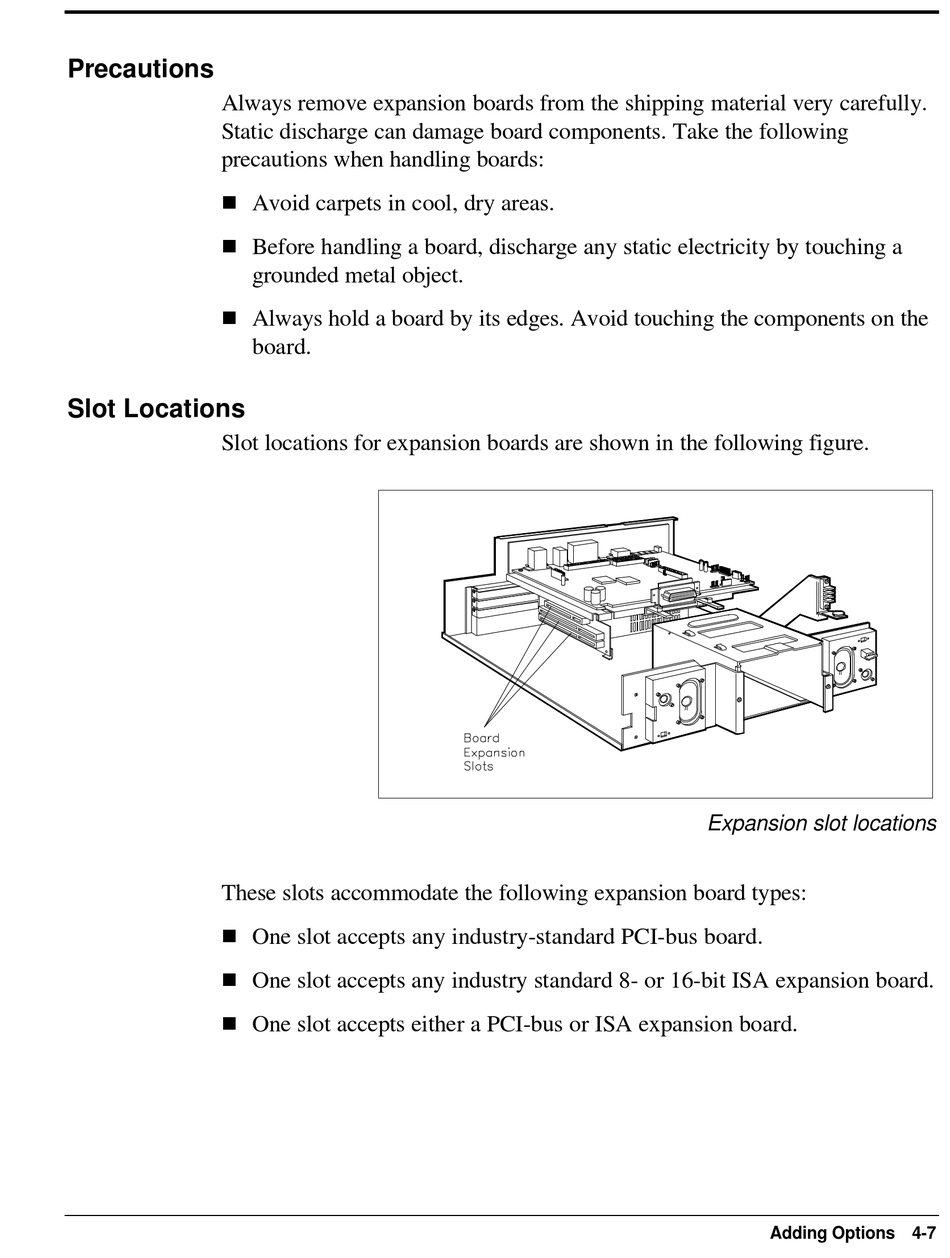

Precautions
Always remove expansion boards from the shipping material very carefully.
Static discharge can damage board components. Take the following
precautions when handling boards:
n
n
n
Slot Locations
Slot locations for expansion boards are shown in the following figure.
These slots accommodate the following expansion board types:
n
n
n
Avoid carpets in cool, dry areas.
Before handling a board, discharge any static electricity by touching a
grounded metal object.
Always hold a board by its edges. Avoid touching the components on the
board.
One slot accepts any industry-standard PCI-bus board.
One slot accepts any industry standard 8- or 16-bit ISA expansion board.
One slot accepts either a PCI-bus or ISA expansion board.
Expansion slot locations
Adding Options 4-7
