Pin Assignments
KEYBOARD AND MOUSE PORTS

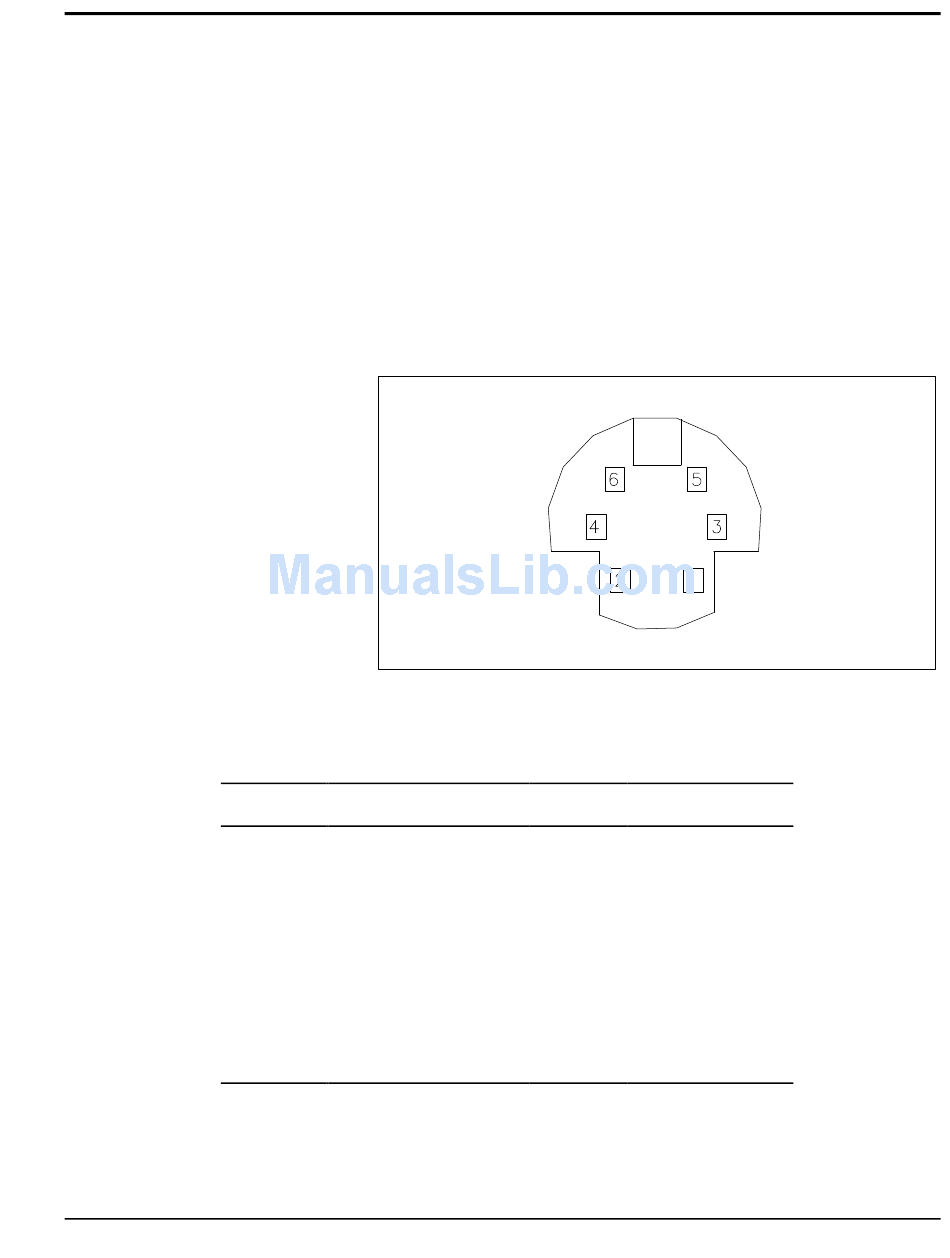

The ports for the external keyboard and mouse are 6-pin mini-DIN female
ports. The keyboard and mouse connectors are male connectors.
Pin
1
2
3
4
5
6
KEYBOARD/MOUSE PORT PIN ASSIGNMENTS
Signal
KBDATA
(MOUSEDATA)
NC
GND
+5V
KBCLK
(MOUSECLK)
NC
Keyboard and mouse ports
I/O
Function
I/O
Keyboard data
(Mouse data)
—
Not connected
—
Ground
—
Power
I/O
Keyboard clock
(Mouse clock)
—
Not connected
Pin Assignments B-1
