Image Aspect Ratio

The projector can display images in different width-to-height ratios called
aspect ratios. Normally, the input signal from your video source determines
the image's aspect ratio.
If you always want to use a particular aspect ratio for a certain video input
source, you can select it using the projector's Image menu.
Related Links
g
• "Changing the Image Aspect Ratio"
• "Available Image Aspect Ratios"

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image.
• Set the Screen Type setting in the projector's Installation menu before
changing the aspect ratio.
• Available only when the current source is HDMI.
a
Turn on the projector and switch to the image source you want to use.
b

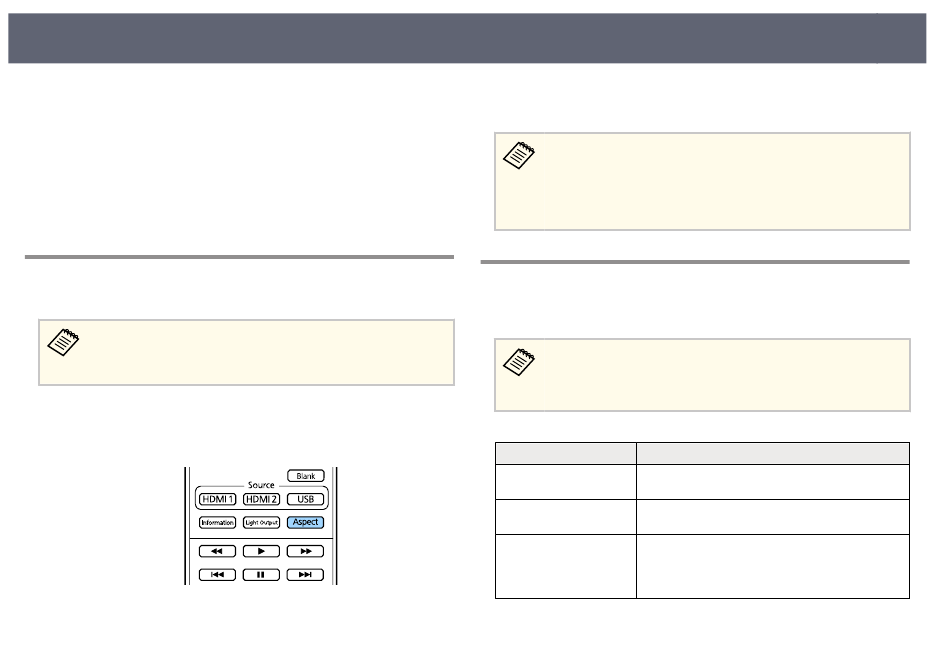

Press the [Aspect] button on the remote control.
The shape and size of the displayed image changes, and the name of the
aspect ratio appears briefly on the screen.
p.66
p.66
c
To cycle through the available aspect ratios for your input signal, press the
[Aspect] button repeatedly.
• The available aspect ratio setting varies depending on the input signal.
• If there are margins between the edge of the image and the projected
screen frame, you can adjust the position of the image using the Screen
Position setting in the projector's Installation menu.
Installation > Screen Type > Screen Position
s

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the selected
Screen Type setting and the input signal from your image source.
Note that using the aspect ratio function of the projector to reduce,
enlarge, or split the projected image for commercial purposes or for public
viewing may infringe upon the rights of the copyright holder of that image
based on copyright law.
Aspect mode Description
Auto Automatically sets the aspect ratio according to the
input signal.
Full Displays images using the full size of the projection
area, but does not maintain the aspect ratio.
H-Zoom Displays images using the full width (H-Zoom) or full
height (V-Zoom) of the projection area and maintains
V-Zoom
the aspect ratio of the image. Areas that exceed the
edges of the projected screen are not projected.
