Image Shape

You can project an even, rectangular image by placing the projector directly in
front of the center of the screen and keeping it level. If you place the projector at
an angle to the screen, or tilt it up or down, or off to the side, you may need to
correct the image shape.
After correction, your image is slightly smaller.
For the best quality images, we recommend adjusting the installation position of
the projector to achieve the correct image size and shape.
If you adjust the screen position using the Image Shift feature, perform
Image Shift before Geometry Correction.

Related Links

g
• "Correcting Distortion in the Image Using the Wizard"
• "Correcting the Image Shape with Quick Corner"
• "Correcting Image Shape with Arc Correction"
• "Correcting Image Shape with Point Correction"

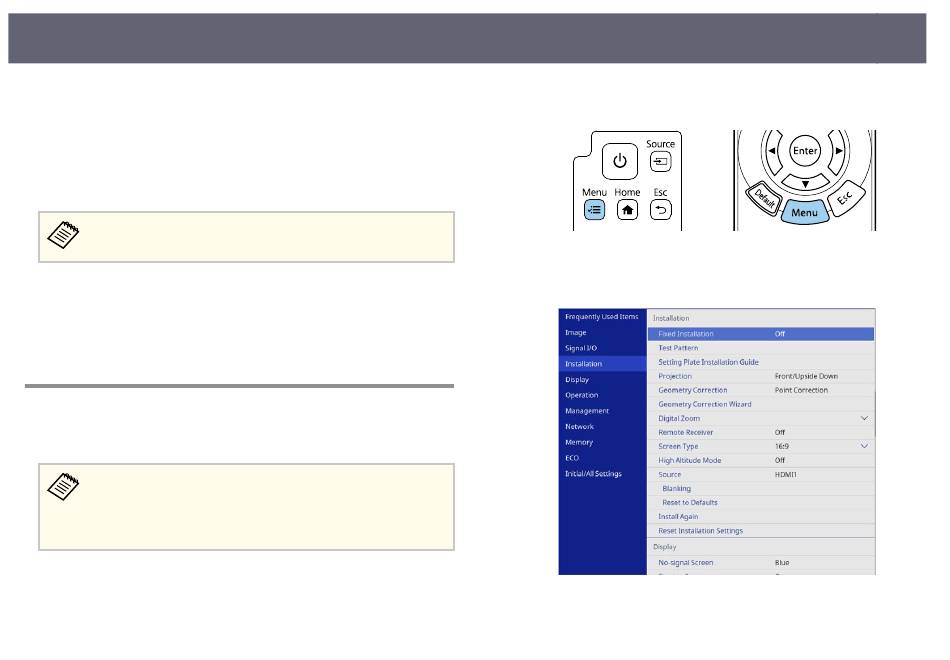

Correcting Distortion in the Image Using the Wizard

You can correct distortion in the projected image by following the on-screen
instructions from the Installation menu.
To correct distortion more easily, you can use the Epson Setting Assistant
application on a smart phone or tablet that has a camera function. Install
the application by using the QR code displayed on the projected screen.
The customer is responsible for any communication charges incurred
when downloading the app.
a
Turn on the projector and display an image.
p.53
p.54
p.57
p.59
b
Press the [Menu] button on the control panel or remote control.
c
Select the Installation menu and press [Enter].
