Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the
input signal from your video source determines the image's aspect ratio. However, for certain images
you can change the aspect ratio to fit your screen by pressing a button on the remote control.
If you always want to use a particular aspect ratio for a certain video input source, you can select it using
the projector's menus.

Changing the Image Aspect Ratio

Available Image Aspect Ratios
Parent topic:
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image to resize it.
Note: Set the Screen Type setting in the projector's Installation menu before changing the aspect ratio.
Note: This setting is available only when the Scale setting is turned off or the Scale Mode setting is set
to Full Display.
1. Turn on the projector and switch to the image source you want to use.

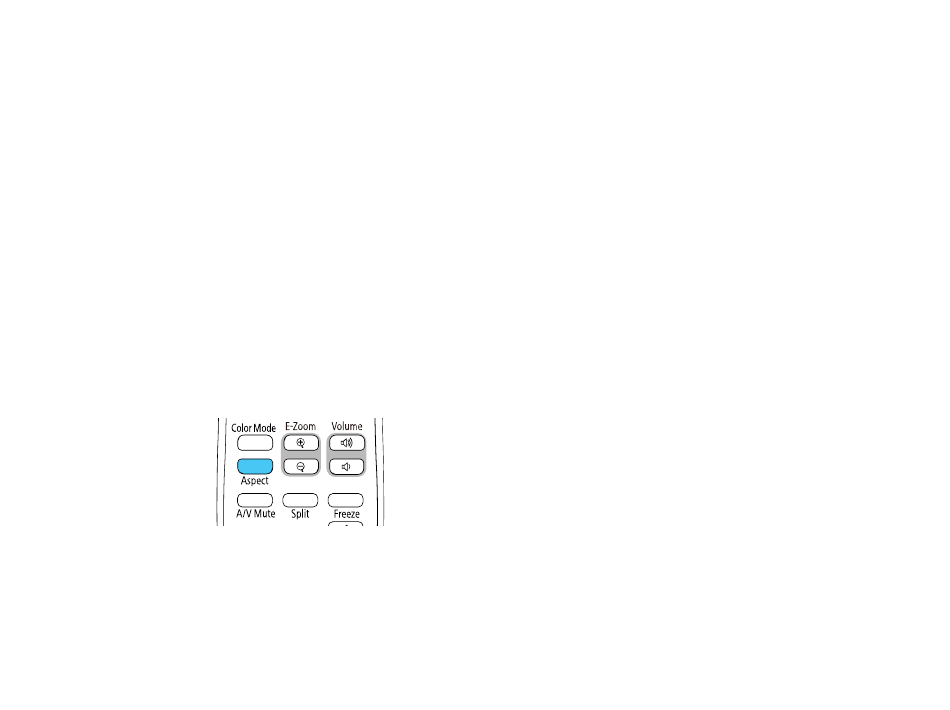

2. Press the Aspect button on the remote control.
The shape and size of the displayed image changes, and the name of the aspect ratio appears
briefly on the screen.
3. To cycle through the available aspect ratios for your input signal, press the Aspect button
repeatedly.
