Projector Parts and Functions
• "Cleaning the Projection Window"
• "Air Filter and Vent Maintenance"
• "Projector Parts - Control Panel"
• "Focusing the Image Using the Focus Lever"
• "Remote Control Operation"
p.36
• "Installing a Security Cable"
p.96
• "Attaching and Removing the Side Cover"

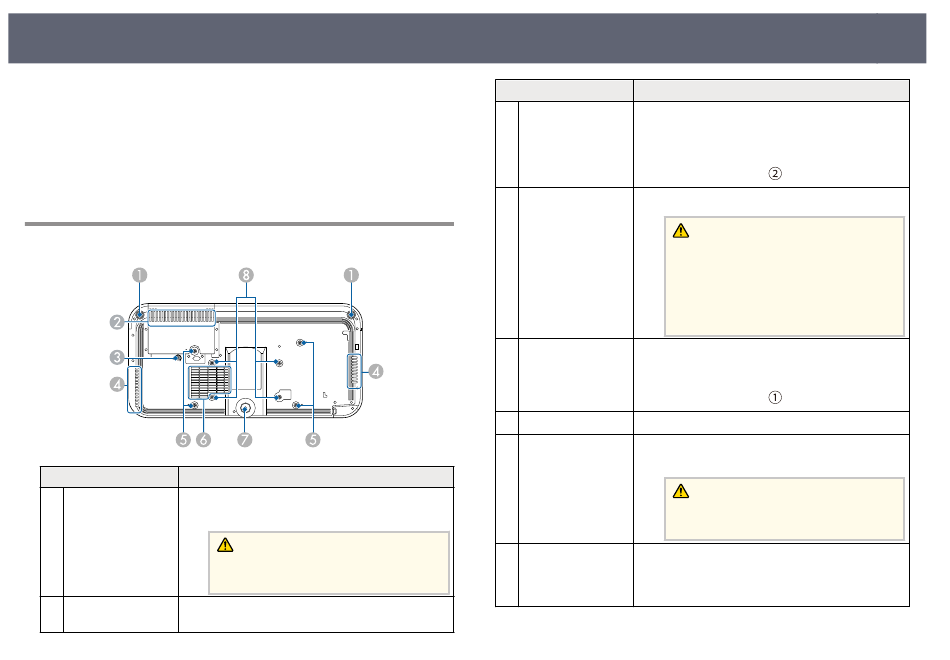

Projector Parts - Base

Name Function
Front adjustable feet When the projector is setup on a surface such as a desk,
A
turn the feet to correct image distortion.
Air intake vent (air Takes in air to cool the projector internally.
B
filter)
p.142
p.145
p.15
p.52
p.34
Caution
Remove all feet when you install the projector
on a wall or suspend it from a ceiling.
Name Function
Wire clamp fixing When you use the optional setting plate or ceiling
C
point mount, fix the carabiner here to attach the safety wire
and prevent the projector from falling from the wall or
ceiling.
This point is marked with a
Air exhaust vent Exhaust vent for air used to cool the projector internally.
D
While projecting, do not put your face or hands
near the air exhaust vent, and do not place
objects that may become warped or damaged
by heat near the vent. Hot air from the air
exhaust vent could cause burns, warping, or
accidents to occur.
Fixing points (four Use these points to attach the optional mount when
E
points) installing the projector on a wall or suspending the
projector from a ceiling.
This point is marked with a
Air intake vent Takes in air to cool the projector internally.
F
Rear adjustable foot When setup on a surface such as a desk, extend the foot
G
to adjust the position of the image.
Remove all feet when you install the projector
on a wall or suspend it from a ceiling.
VESA mount fixing Use these points to attach the commercially available
H
points (four points) mount compatible with the VESA Mounting Interface
Standard (100 × 200 mm) when installing the projector
on a wall or suspending the projector from a ceiling.
on the projector.
Caution
on the projector.
Caution
