Projector Parts and Functions

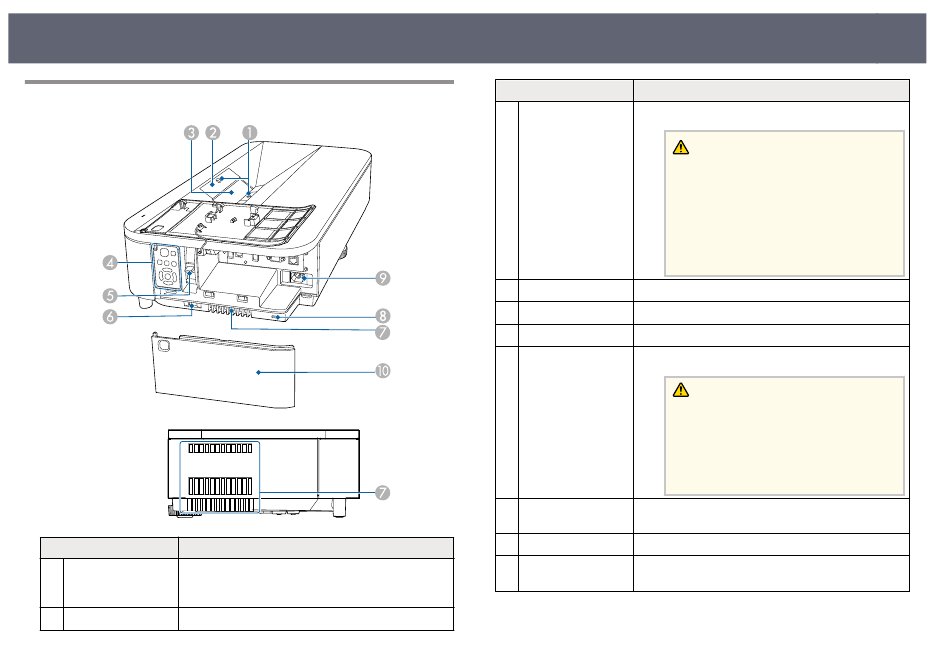

Projector Parts - Top/Side
Name Function
Obstacle sensors Detects obstacles that are interfering with the projection
A
area and reduces the brightness of the light source for
safety.
Remote receiver Receives signals from the remote control.
B
Name Function
Projection window Images are projected from the lens inside the projector.
C
• Do not look into the projection window
• Do not place any objects or put your hand
Control panel Operates the projector.
D
Focus lever Adjusts the image focus.
E
Side cover latch Slide to remove the side cover.
F
Air exhaust vent Exhaust vent for air used to cool the projector internally.
G
While projecting, do not put your face or hands
near the air exhaust vent, and do not place
objects that may become warped or damaged
by heat near the vent. Hot air from the air
exhaust vent could cause burns, warping, or
accidents to occur.
Security slot The security slot is compatible with the Microsaver
H
Security System manufactured by Kensington.
Power inlet Connects the power cord to the projector.
I
Side cover Open to access the interface ports, focus lever, and
J
control panel.
Related Links
g
• "Cleaning the Obstacle Sensor"
p.143
Warning
while projecting.
near the projection window. It could cause
burns, fire, or the object to warp because this
area reaches a high temperature due to the
concentrated projection light.
