Installing the Safety Wire
c
Tighten the carabiner lock.

When Using the Ceiling Mount ELPMB30

You can attach a safety wire to your projector for increased safety as shown.
Before you start, you need to remove the front adjustable feet and the rear
adjustable foot from the projector. Also, make sure you have securely attached
the ELPMB30 ceiling mount to the projector and have the following items that
are included in the safety wire set:
• Safety wire × 1
• Carabiner × 2 (Only one carabiner is used for the ELPMB30.)
• Wire clamp × 1
• Attaching screw (M4 × 10 mm) × 1
For details on installing the ELPMB30, see the ELPMB30 User's Guide.

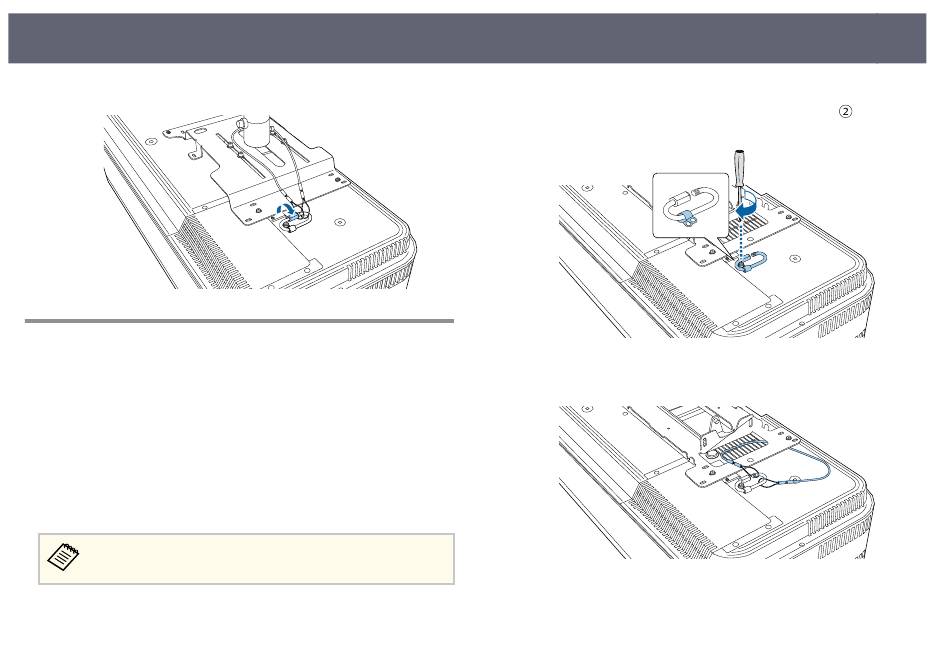

a
Attach the wire clamp to the carabiner, and then use the screw to fix
the wire clamp to the screw into the wire clamp fixing point ( ) on the
projector.
b
Loop the safety wire through the hole in the ceiling mount, and then
attach both ends to the carabiner.
24
