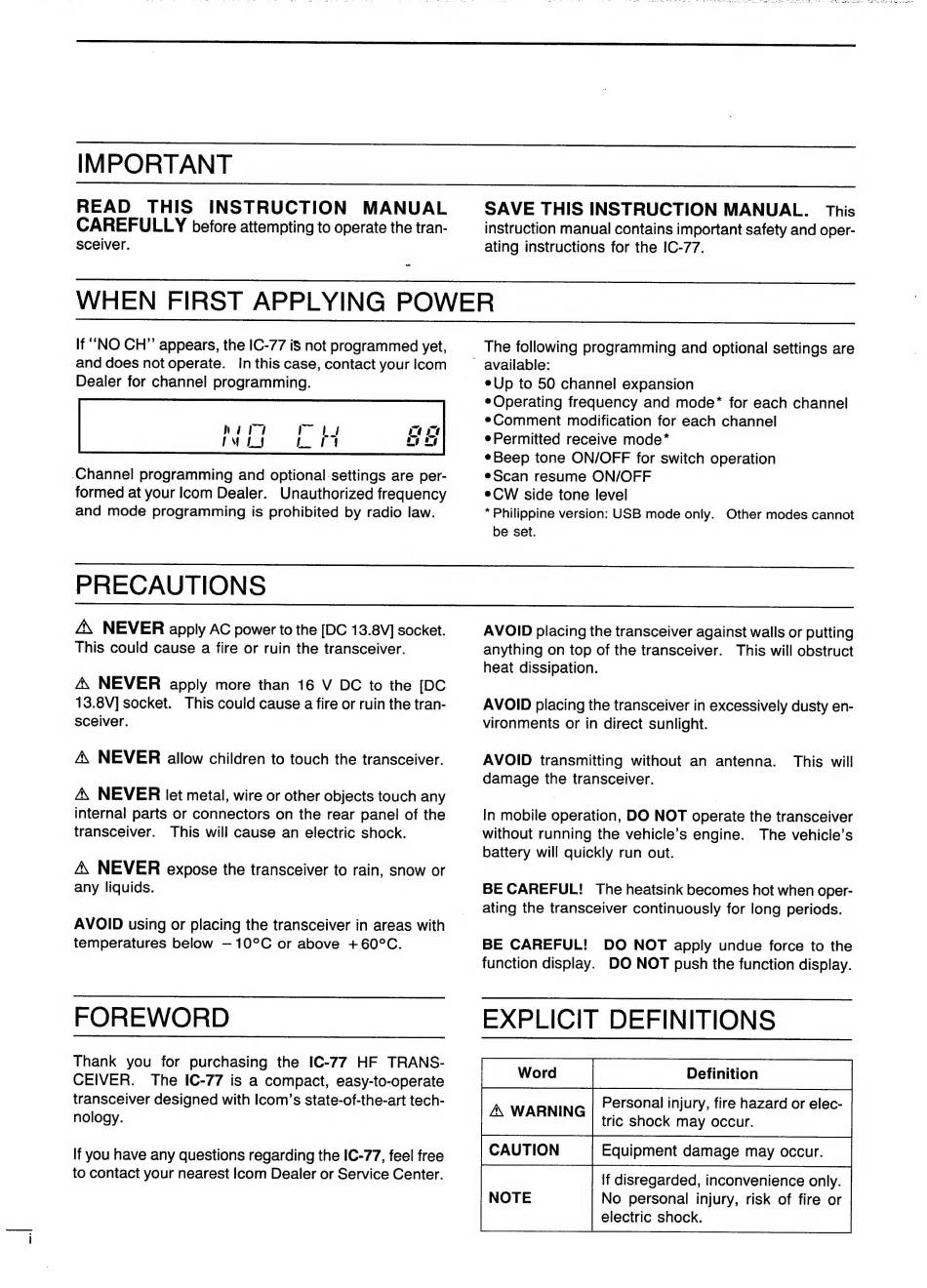

IMPORTANT
READ THIS INSTRUCTION MANUAL
CAREFULLY before attempting to operate the tran-
sceiver.
SAVE THIS INSTRUCTION MANUAL. This
instruction manual contains important safety and oper-
ating instructions for the IC-77.
WHEN FIRST APPLYING POWER
If "NO CH" appears, the IC-77 i$ not programmed yet,
and does not operate. In this case, contact your Icom
Dealer for channel programming.
Channel programming and optional-settings are per-
formed at your Icom Dealer. Unauthorized frequency
and mode programming is prohibited by radio law.
The following programming and optional settings are
~ available:
eUp to 50 channel expansion
eOperating frequency and mode* for each channel
¢Comment modification for each channel
e Permitted receive mode*
e Beep tone ON/OFF for switch operation
eScan resume ON/OFF
eCW side tone level
* Philippine version: USB mode only. Other modes cannot
be set.
PRECAUTIONS
ÅA NEVER apply AC power to the [DC 13.8V] socket.
This could cause a fire or ruin the transceiver.
A NEVER apply more than 16 V DC to the [DC
13.8V] socket. This could cause a fire or ruin the tran-
sceiver.
A NEVER allow children to touch the transceiver.
A NEVER let metal, wire or other objects touch any
internal parts or connectors on the rear panel of the
transceiver. This will cause an electric shock.
A NEVER expose the transceiver to rain, snow or
any liquids.
AVOID using or placing the transceiver in areas with
temperatures below — 10°C or above +60°C.
FOREWORD
Thank you for purchasing the IC-77 HF TRANS-
CEIVER. The IC-77 is a compact, easy-to-operate
transceiver designed with Icom's state-of-the-art tech-
nology.
If you have any questions regarding the IC-77, feel free
to contact your nearest Icom Dealer or Service Center.
AVOID placing the transceiver against walls or putting
anything on top of the transceiver. This will obstruct
heat dissipation.
AVOID placing the transceiver in excessively dusty en-
vironments or in direct sunlight.
AVOID transmitting without an antenna. This will
damage the transceiver.
In mobile operation, DO NOT operate the transceiver
without running the vehicle's engine. The vehicle's
battery will quickly run out.
BE CAREFUL! The heatsink becomes hot when oper-
ating the transceiver continuously for long periods.
BE CAREFUL! DO NOT apply undue force to the
function display. DO NOT push the function display.
EXPLICIT DEFINITIONS
| Word | Definition f|
A WARNING Personal injury, fire hazard or elec-
tric shock may occur.
CAUTION Equipment damage may occur.
If disregarded, inconvenience only.
NOTE
No personal injury, risk of fire or
electric shock.
