Rx-I/O Setting - Icom IC-PW2 Instruction Manual

About the RX side ANT in the Same band TX
setting
When "Connect Two Exciters to INPUT1 & 2" or
"Connect an Exciter to INPUT 1 & 2" is selected
in the "Exciter Connection" setting, and the same
frequency band is set to [INPUT 1] and [INPUT 2],
the antenna connecter selected in
green: RX side) is automatically disconnected from
the antenna while transmitting.
This avoids excessive input of the transmitted signal
from the receiving antenna.
The connector will be connected to the antenna
again 2 seconds after transmission stops.
To connect the antenna even while transmitting in the
same band, select "ON" in the following setting.
» ANT > RX Side ANT in the Same Band TX
MENU

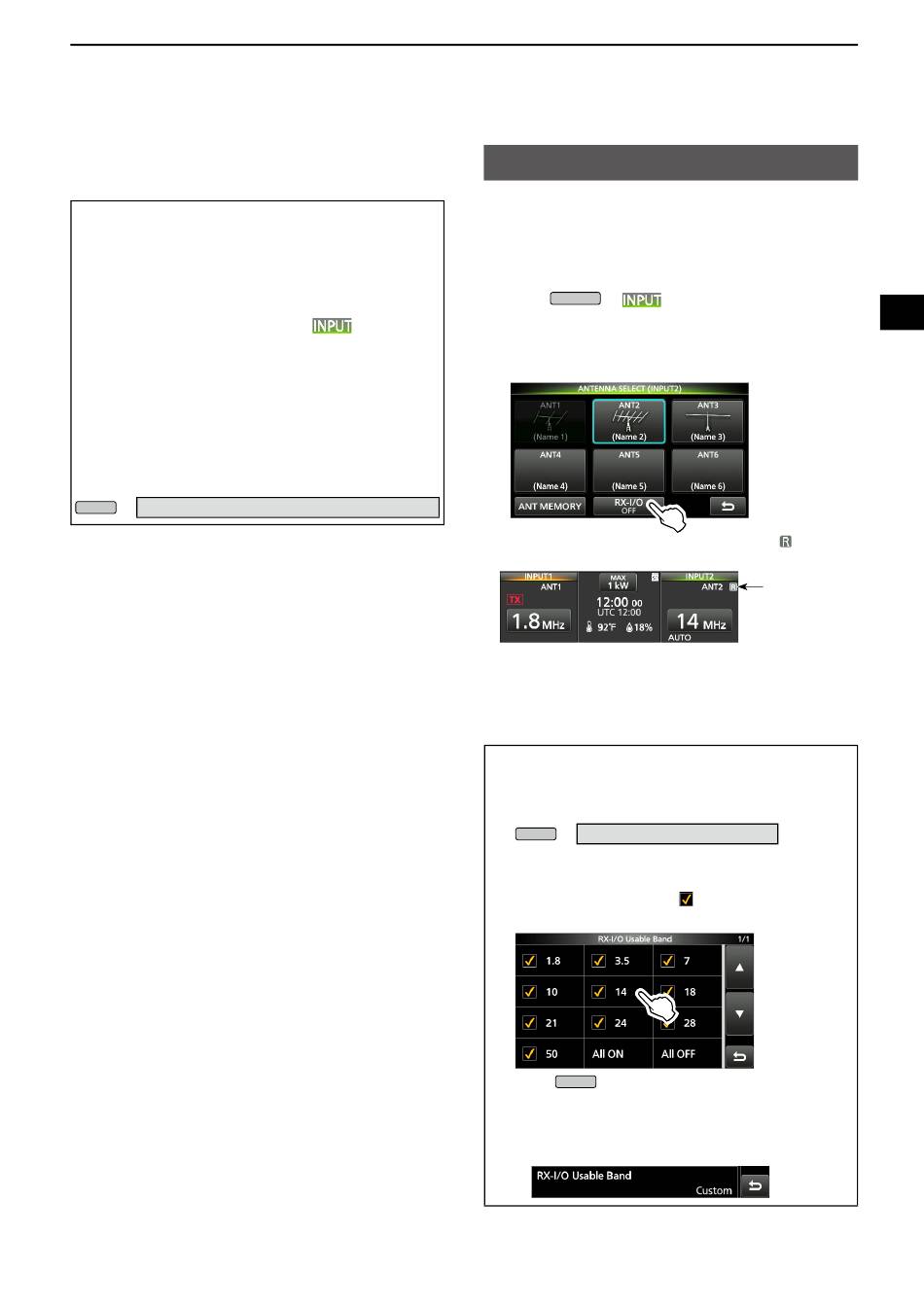

RX-I/O setting

You can set whether or not to output the signal
from the receiving antenna to an external device
(a preamplifier, a band-pass filter, or an attenuator)
connected to [RX-ANT IN] and [RX-ANT OUT].
1. Push
• The ANTENNA SELECT screen is displayed.
(Lights
2. Touch [RX-I/O (OFF)].
• "ON" is displayed under "RX-I/O."
L "ON" or "OFF" is switched each time you touch.
L When "ON" is selected, the RX-I/O indicator ( ) is
displayed in the right of the antenna indicator.
L The RX-I/O setting is enabled even if the linear amplifier
is in the Antenna Selector mode.
L The RX-I/O setting is not saved in the Antenna Memory
setting.
TIP: Select whether or not to enable the RX-I/O
setting for each frequency band:
1. Open the RX-I/O Usable Band screen.
MENU
2. Touch the checkbox of each frequency band,
"All ON," or "All OFF."
• When "ON" is selected,
L Push
screen.
• When an option other than "All ON" or "All OFF" is
4-5
BASIC OPERATION
of (Lights green: RX side).
ANT
» ANT > RX-I/O Usable Band
is displayed on the
selected band.
to exit the RX-I/O Usable Band
MENU
selected, "Custom" is displayed in the RX-I/O
Usable Band item.
4
4
RX-I/O
indicator
