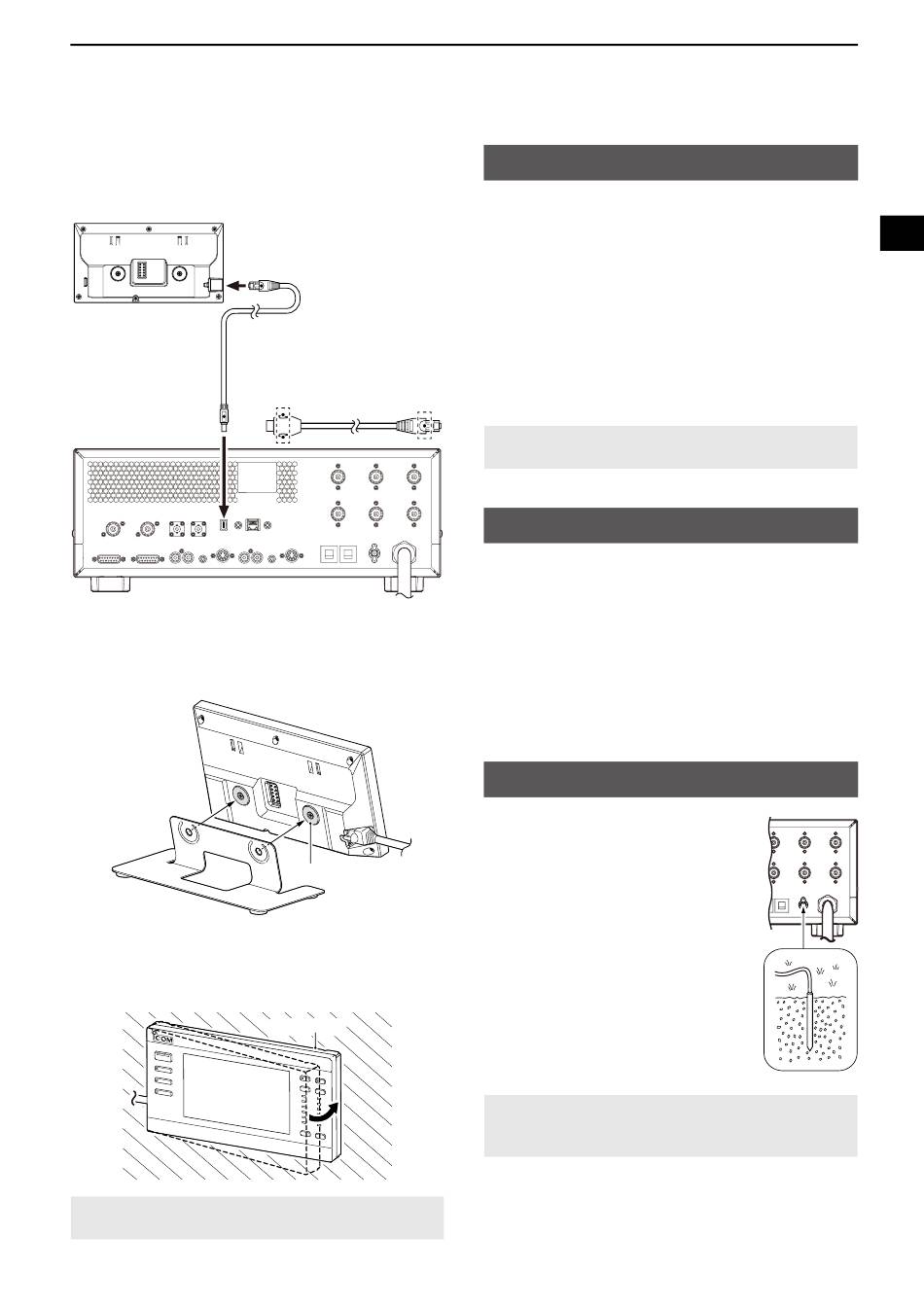

D Connecting the controller cable

Insert the controller cable in the direction of the arrow
until the cable is locked and makes a 'click' sound.
Controller (Side)
To [CONTROLLER]
Rear panel

D Attaching the mounting bracket stand

Attach the bracket to the rear panel magnets of the
controller, as shown below.
Mounting bracket
stand
D Attaching to a fl at surface
The magnets on the rear panel of the controller can
be attached it to a steel shelf.
BE CAREFUL! not to pinch your fi nger when
attaching the controller.
Controller cable
L When removing the
cable, push and hold the
part indicated by ● while
pulling it out.
Controller (Rear panel)
Magnets
Controller
INSTALLATION AND CONNECTIONS

Select a location

Select a location for the linear amplifi er that enables
adequate air circulation, free from extreme heat, cold
or vibration, and other electromagnetic sources.
Never place the amplifi er in areas such as:
• Temperatures below –10°C (+14°F) or above
+40°C (+104°F).
• An unstable place that slopes or vibrates.
• In direct sunlight.
• High humidity and temperature environments.
• Dusty environments.
• Noisy environments.
CAUTION: Always have 2 people carry, lift, or turn
over the amplifi er.

Heat dissipation

• NEVER install the linear amplifi er in a place without
adequate ventilation. Heat dissipation may be
reduced, and the amplifi er may be damaged.
• DO NOT place the linear amplifi er against walls or
put anything on top of the amplifi er. This may block
airfl ow and overheat the amplifi er.
• DO NOT touch the linear amplifi er after transmitting
continuously for long periods of time. The amplifi er
may become hot.

Grounding

To prevent electrical shock, television
interference (TVI), broadcast
interference (BCI), and other problems,
ground the linear amplifi er using the
ground terminal [GND] on the rear
panel.
For best results, connect a heavy
gauge wire or strap to a long ground
rod. Make the distance between the
[GND] terminal and the ground rod as
short as possible.
L To connect to [GND], use the supplied
grounding lug.
R WARNING! NEVER connect the [GND] terminal
to a gas or electric pipe since the connection could
cause an explosion or electric shock.
