PANEL DESCRIPTION

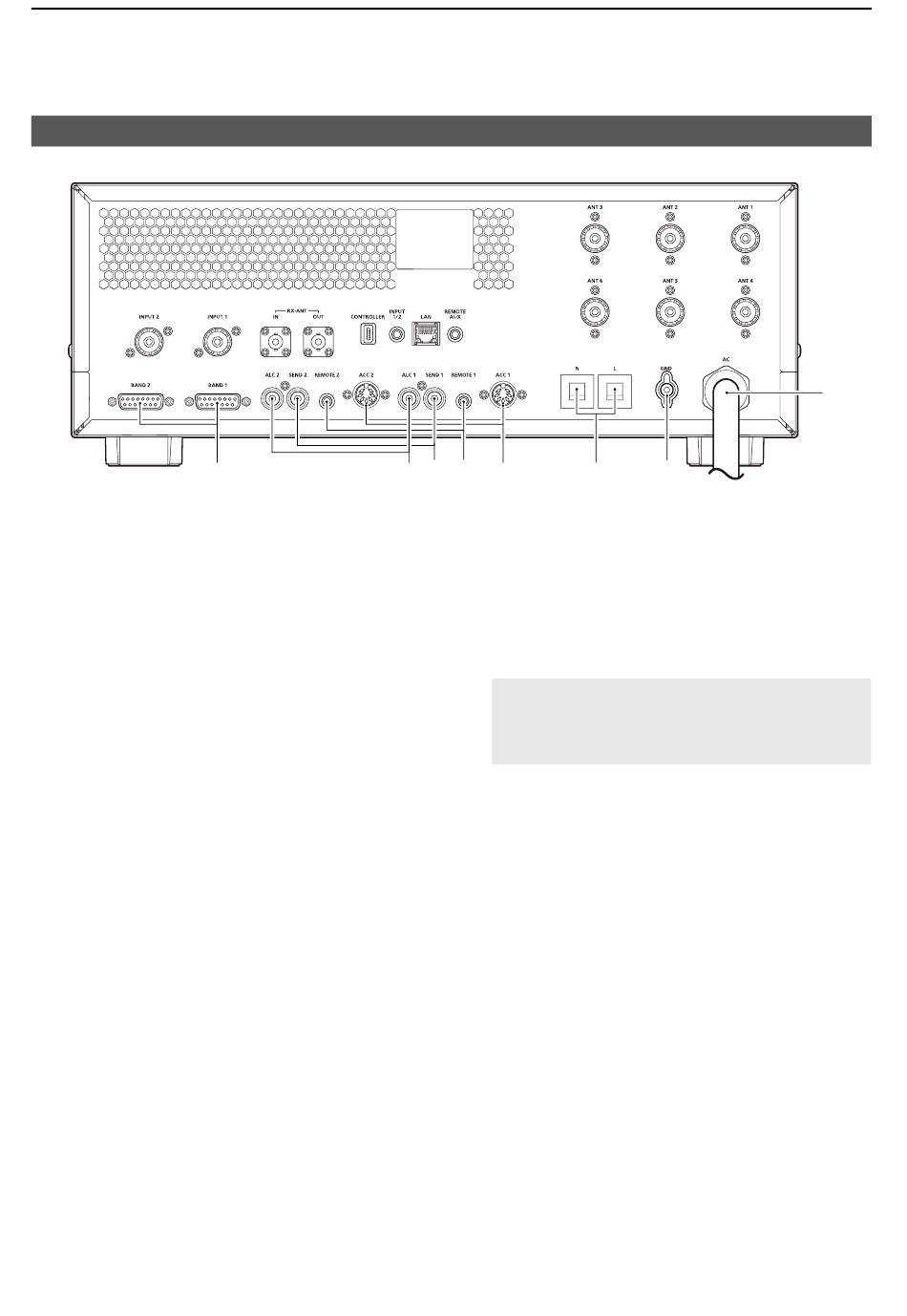

Rear panel
8 AC POWER SOCKET
Connects to a power supply (90 ~ 132 V or 180 ~
264 V AC).
L A suitable AC power plug must be connected to each
wire of the AC power cable. (p. 2-3)
L The EUR version can only be connected to
180 ~ 264
V AC.
9 GROUND TERMINAL (p. 2-2)
Connects to ground to prevent electrical shocks,
TVI, BCI, and other problems.
10 CIRCUIT BREAKERS
Cut off the AC input when over-current occurs.
Circuit breaker capacity:
20 A (USA and EXP versions)
15 A (EUR version)
L To return the breaker to its original state after finding
and repairing the cause of the problem, push the
breakers until it makes a 'click' sound.
11 ACCESSORY SOCKETS [ACC 1]/[ACC 2]
(p. 12-2)
Inputs and outputs control signals for the linear
amplifier.
L Connect to the ACC sockets of the Icom exciter using
the supplied accessory cable.
L To connect the second exciter, use an optional
OPC-104B.
15 14 13 12 11
12 CI-V REMOTE CONTROL JACKS
[REMOTE 1]/[REMOTE 2] (p. 12-2)
Connects to an Icom exciter to remotely control the
linear amplifier using CI-V commands.
L To connect to the exciter, use the supplied remote
control cable.
L To connect the second exciter, use the optional
OPC-718.
NOTE: BE SURE to connect one-to-one with an
Icom exciter.
The amplifier does not support remote control of
multiple units using a CI-V level converter.
13 SEND CONTROL JACKS [SEND 1]/[SEND 2]
(p. 12-2)
Connect to a non-Icom exciter to synchronize
transmission and reception.
14 ALC OUTPUT JACKS [ALC 1]/[ALC 2] (p. 12-2)
z Connect to output the ALC voltage to a non-Icom
exciter.
z When an Icom exciter is connected, and the
Digital Pre-Distortion (DPD) function is used,
outputs the feedback signal.
15 BAND SIGNAL OUTPUT CONNECTORS
[BAND 1]/[BAND 2] (p. 12-2)
Outputs the voltage for band changing.
L To connect to an external unit, such as a band-pass
filter or a band decoder, use a connection cable
(D-sub 15 pin, user supplied).
