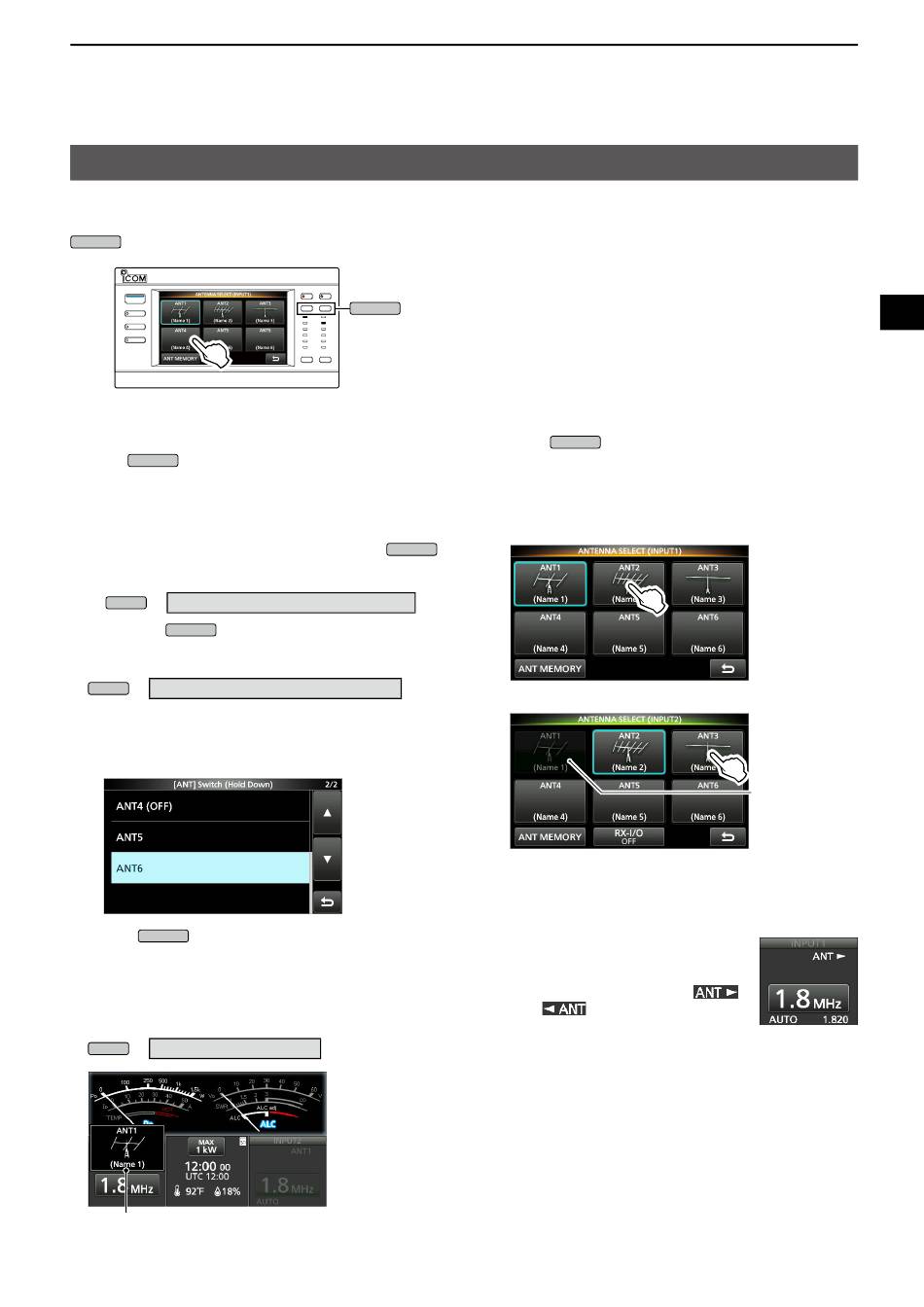

Selecting the antenna connector

Change the selected antenna connectors (ANT 1
~ ANT 6) by touching the LCD display or pushing
ANT .

D Using the antenna selector

z When the linear amplifier is turned OFF:
Push to change the antenna connector
ANT
sequentially between ANT 1 and ANT 6.
• The selected antenna indicator lights white.
L The same antenna connector cannot be selected for
[INPUT 1] and [INPUT 2].
L To change the antenna connector by pushing
even when the amplifier is turned ON, select "Select
Antenna" in the following setting.
» ANT > [ANT] Switch (Short Push)
MENU
z Hold down
for 1 second to temporarily
ANT
change to the antenna connector selected in the
following setting.
» ANT > [ANT] Switch (Hold Down)
MENU
• The selected antenna indicator blinks white.
L "(OFF)" is displayed in the antenna connector set to
"OFF" in the ANT1 to ANT6 settings.
Example: ANT 4 (OFF)
L Push
ANT to return to the original antenna connector.
L You can select whether or not to display the Antenna
Popup window when changing the antenna connector
with the amplifier turned ON.
To display the window, select "ON" in the following setting.
» ANT > Antenna Popup
MENU
Antenna Popup window
ANT

D Using the touch screen display

1. Push
• The ANTENNA SELECT screen is displayed.
2. Touch the desired ANT key (ANT 1 ~ ANT 6).
• The frame of the selected antenna connector is
displayed in blue.
TX/RX side (Example: INPUT 1, ANT 2):
ANT
RX side (Example: INPUT 2, ANT 3):
L The antenna connector selected on the TX/RX side
is grayed out on the RX side's ANTENNA SELECT
screen.
L When "Connect an Exciter to INPUT1 & 2"
is selected in the "Exciter
Connection" setting, and the same
antenna connector is selected, the
RX side is grayed out, and
or
4-3
BASIC OPERATION
.
ANT
is displayed.
4
4
Indicates that
the antenna
connector cannot
be selected
