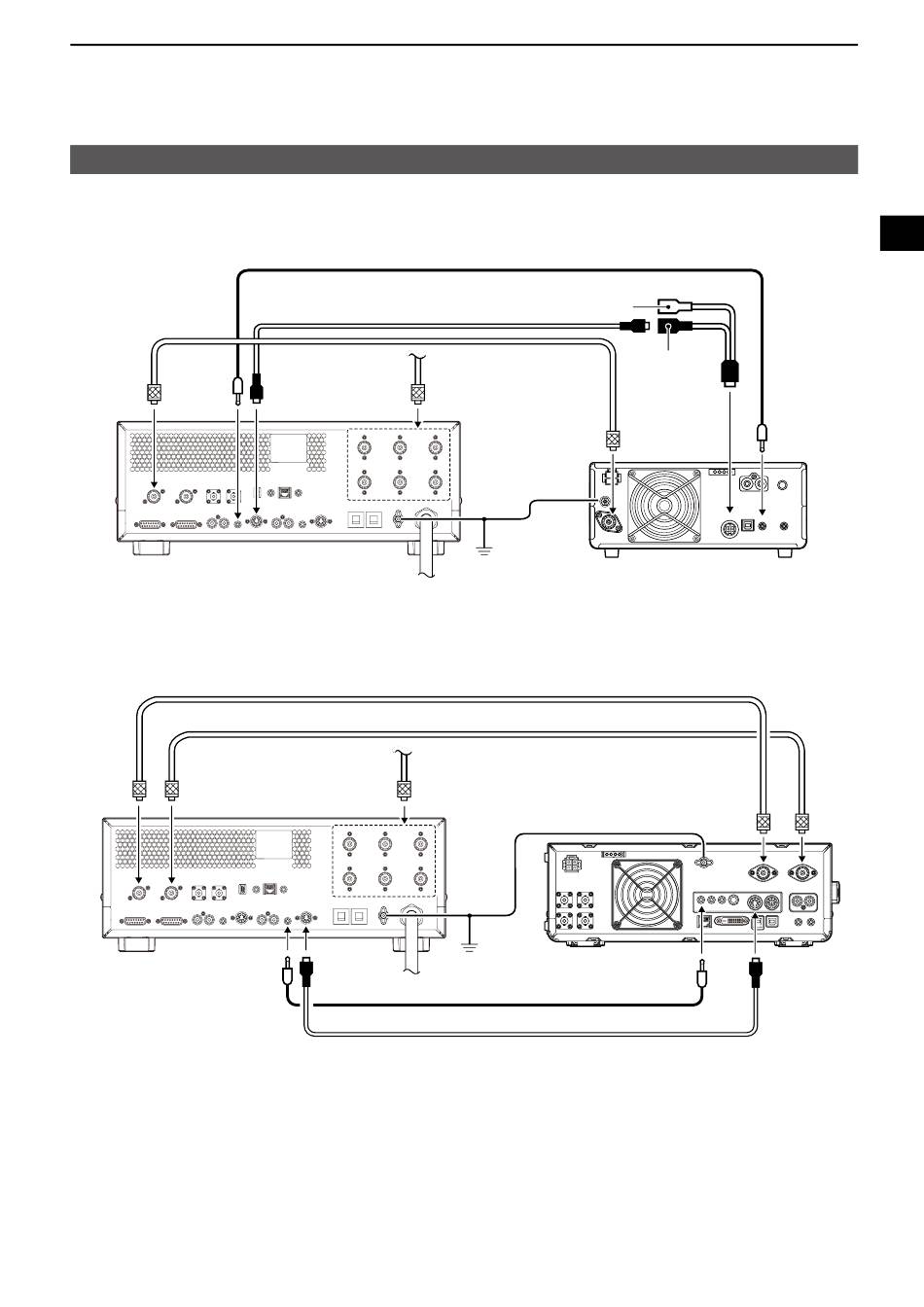

Connecting to exciters

D Connecting 1 Icom exciter to [INPUT 2]

Supplied coaxial cable
REMOTE2
INPUT2
IC-PW2

D Connecting 1 Icom exciter to [INPUT 1] and [INPUT 2]

INPUT2 INPUT1
IC-PW2
REMOTE1
L To operate the amplifier in synchronization with the exciter's frequency data:
• The firmware of the IC-7851, IC-7850 (Discontinued), or IC-7610 must be updated to the latest version.
• Select "ON" in the "IC-PW2 Dual Connection Mode" setting on the exciter.
L When operating in this connection, you cannot switch the antenna, select the receive-only antenna (RX-ANT), and set
antenna memory, using the exciter.
L When an IC-7851 or IC-7850 is connected, the linear amplifier is designed to work by connecting a coaxial cable to their ANT
1 or ANT 2.
Supplied remote control cable
Supplied accessory cable
To antenna
ACC2
ANT
Coaxial cable (User supplied)
Supplied coaxial cable
To antenna
ANT
ACC1
Supplied remote control cable
Supplied accessory cable
INSTALLATION AND CONNECTIONS
OPC-599
Optional Adapter cable
ANT
GND
GND
Ground
GND
IC-7610
Ground
2-6
7-pin side
ACC
(13-pin type)
REMOTE
IC-7300
GND ANT2
REMOTE ACC(2)
2
2
ANT1
