Connection mode

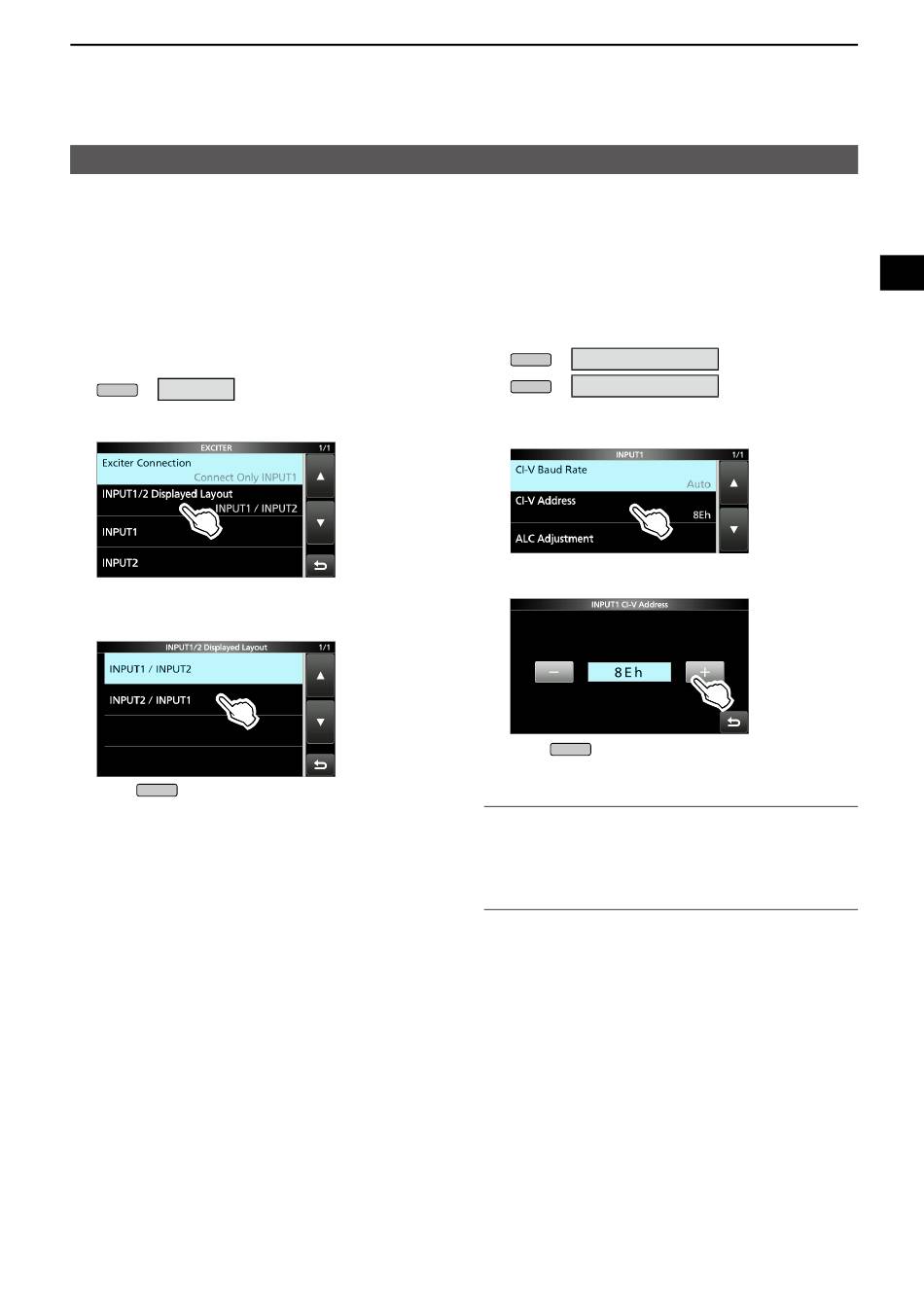

D Switching the display layout of
[INPUT 1] and [INPUT 2]
Set the display layout of [INPUT 1] and [INPUT 2]
according to the placement of the exciters.
L When "Connect an Exciter to INPUT1 & 2" is selected in
the "Exciter Connection" setting, the display layout cannot
be switched.
1. Open the EXCITER screen.
» EXCITER
MENU
2. Touch "INPUT1/2 Displayed Layout."
3. Touch the desired item.
(Example: INPUT2 / INPUT1)
4. Push to return to the Main screen.
MENU
• The display layout of [INPUT 1] and [INPUT 2] is
switched.
D The CI-V settings of [INPUT 1] and
[INPUT 2]
Set the CI-V settings for [INPUT 1] and [INPUT 2] to
the same setting as an Icom exciter.
1. Open the INPUT1 or INPUT2 screen.
(Example: INPUT1)
» EXCITER > INPUT1
MENU
» EXCITER > INPUT2
MENU
2. Touch the item you want to set.
(Example: CI-V Address)
3. Touch [+] or [–] to change the value.
4. Push to return to the Main screen.
MENU
CI-V Baud Rate
Sets the CI-V data transfer rate to 4800, 9600, 19200,
or Auto.
L When "Auto" is selected, the baud rate is automatically
set according to the data rate of the Icom exciter.
CI-V Address
Sets the same CI-V address as set on the Icom
exciter.
3-2
3
INITIAL SETUP
(Default: Auto)
(Default: 8Eh)
