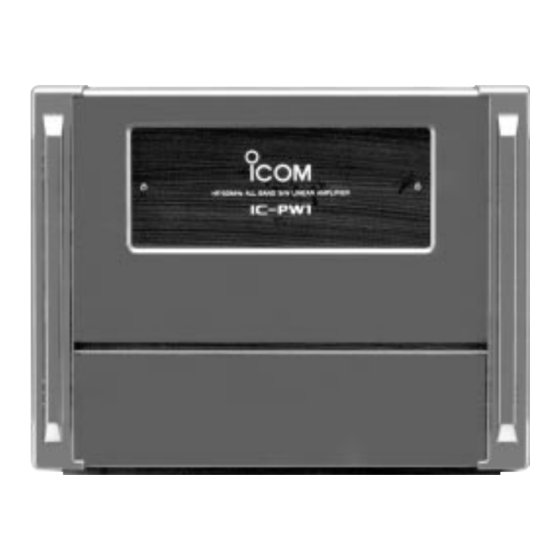

Hf/50 mhz all band 1 kw linear amplifier
Hide thumbs Also See for IC-PW1:

Advertisement

INSTRUCTION MANUAL
HF/50 MHz ALL BAND
1 kW LINEAR AMPLIFIER
iPW1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-PW1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Icom IC-PW1

  • Page 1 INSTRUCTION MANUAL HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER iPW1...
  • Page 2: Important

    BE CAREFUL! The linear amplifier will become hot when operating if continuously for long periods. BE CAREFUL! Set the transceiver’s (exciter’s) RF out- put power to less than 100 W, otherwise, the IC-PW1 will be damaged. During maritime mobile operation, keep the linear am- plifier, remote controller and microphone as far away...
  • Page 3: Table Of Contents

    Protection circuit ... 14 4 MAINTENANCE ... 15 Troubleshooting ... 15 5 SPECIFICATIONS ... 16 Accessories included with the IC-PW1: q Accessory cable (OPC-104B) ... 1 w Coaxial cable (OPC-125B) ... 1 e Separation cable (OPC-730) ... 1 r Remote control (CI-V) cable (OPC-718) ... 1 t Remote controller feet ...
  • Page 4: Panel Description

    PANEL DESCRIPTION Front panel and remote controller POWER TRANSMIT TUNER DOWN AMP/ PROTECT HF/50MHz ALL BAND 1kW LINEAR AMPLIFIER 1.5K 20 30 40 TEMP TEMP METER-1 AUTO HF/50MHz ALL BAND 1kW LINEAR AMPLIFIER POWER 1.5K 20 30 40 TRANSMIT TEMP...
  • Page 5 - When the linear amplifier is OFF, the [AMP/PROTECT] does not light and the exciter’s signal is applied to one of the output connectors or the IC-PW1’s antenna tuner. y LOWER BAND SELECTOR [DOWN] (p. 13) Selects the lower operating band when pushed.
  • Page 6: Rear Panel

    [CONTROLLER] (p. 10) Used for separation of the remote controller and lin- ear amplifier. r ALC OUTPUT JACKS [ALC1]/[ALC2] (p. 11) Connect to the ALC input jack of a non-Icom exciter (transceiver). - Control voltage: –10 to 0 V DC ANT3...
  • Page 7 !0 EXCITER SELECTOR [EXCITER] (pgs. 7–9) Sets the connected exciter number. - Select [1] when 1 exciter is connected. [ACC-2] outputs the received [ACC-1] signal to another Icom option such as the EX-627 AUTOMATIC ANTENNA SELECTOR - Select [1&2] when 2 exciters or 1 exciter with 2 speci- fied band antenna connectors is connected.
  • Page 8: Installation And Connections

    Ferrite core installation The supplied ferrite core and cable clips (o and !0 in UNPACKING) should be attached to the AC cable of the IC-PW1 as illustrated below. This will help prevent interference such as TVI, etc. Attach and position...
  • Page 9: Grounding

    In this case, an antenna tuner is useful to match the linear amplifier and antenna. Low SWR allows full power for transmitting even when using the antenna tuner. The IC-PW1 has an SWR meter to monitor the antenna SWR continuously. q Slide the coupling ring down. Strip the cable jacket and soft solder.
  • Page 10: System Interconnections

    INSTALLATION AND CONNECTIONS System interconnections 1 or 2 Icom 100 W HF transceivers can be connected as exciters to the IC-PW1. Non-Icom transceivers can be used, however, band selection will not be synchro- nized for each exciter. • Using 1 Icom exciter (transceiver)
  • Page 11 • Using 2 Icom exciters (transceivers) To an antenna ACC-1 REMOTE ACC-2 REMOTE IC-PW1 AC outlet (Non-Europe versions : 100–120/220–240 V Europe version • Using a non-Icom exciter (transceiver) Set the [EXCITER] switch to [1] when 1 exciter is con- nected;...
  • Page 12 INSTALLATION AND CONNECTIONS • Using 1 Icom and 1 non-Icom exciters (transceivers) To an ACC-1 antenna IC-PW1 AC outlet (Non-Europe versions : 100–120/220–240 V Europe version SEND2 RCA plug ALC2 • Using non-Icom exciters (transceivers) when the IC-PW1’s power is OFF...
  • Page 13: Separating The Remote Controller

    Separating the remote controller The control section of the linear amplifier can be sep- arated from the main body, doubling as a remote con- troller. It can be placed on the exciter or in another convenient place. q Disconnect the AC power cable. w Remove 8 screws from the sides of the linear am- plifier, then lift up the top cover.
  • Page 14: Operation

    - Select a band which uses a well-matched 50 tenna. (CPU resetting) If the controller’s power is supplied from non-Icom exciters or auxiliary power supply (p. 9), turn the exciter or auxiliary power supply ON while pushing [UP] and [DOWN] to reset the CPU.
  • Page 15: Programming The Ci-V Address

    PROTECT w Rotate the Icom exciter’s tuning dial until the [INPUT z] light continuously lights. e Push [POWER] to turn the IC-PW1 power OFF and complete the setting. D When using 2 exciter’s q When using 2 Icom exciters, be sure that [EXCITER] is set to the [1&2] position.
  • Page 16: Operation

    Use the exciter’s antenna tuner to tune the line be- tween the IC-PW1 and exciter, if you have an an- tenna tuner connected to the exciter. i Transmit with the exciter and adjust the exciter’s output power to 50 W with the RF output power control on the exciter.
  • Page 17: Antenna Tuner Operation

    D Linear amplifier protection circuit When a protection circuit is activated, a band indicator blinks to show a problem as described below. [AMP/PROTECT] lights red when a protection cir- cuit is activated. - Push [AMP/PROTECT] to cancel the protection circuit. Item Indication [TEMP] [AUTO] [ALC] Current band’s...
  • Page 18: Maintenance

    • [ALC adj] is not adjusted properly. If you are unable to locate the cause of a problem or solve it through the use of this chart, contact your near- est Icom Dealer or Service Center. POSSIBLE CAUSE • Check the connection and connection cable pins.
  • Page 19: Specifications

    : 25 kg (55 lb) (incl. remote controller) • CI-V connector : 2-conductor 3.5 Versions of the IC-PW1 which dis- play “CE” on the serial number seal, comply with the essential require- ments of the 89/336/EEC directive for Electromagnetic Compatibility.
  • Page 20 Count on us! A-5449G-1EX-w Printed in Japan 6-9-16 Kamihigashi, Hirano-ku, Osaka 547-0002 Japan © 1997 Icom Inc.
