Front panel
8 PROTECT SWITCH
PROTECT
When the protection circuit is activated, stop
transmission from the exciter and push the switch
to stop the beeps and the red lighting of the
indicator.
L The protection circuit cannot be deactivated while
transmitting.
L Even if the Lock function is turned ON, the protection
circuit can be deactivated by pushing
the exciter is not transmitting.
L The function remains active until all problems are
solved, even if the beeps are stopped.

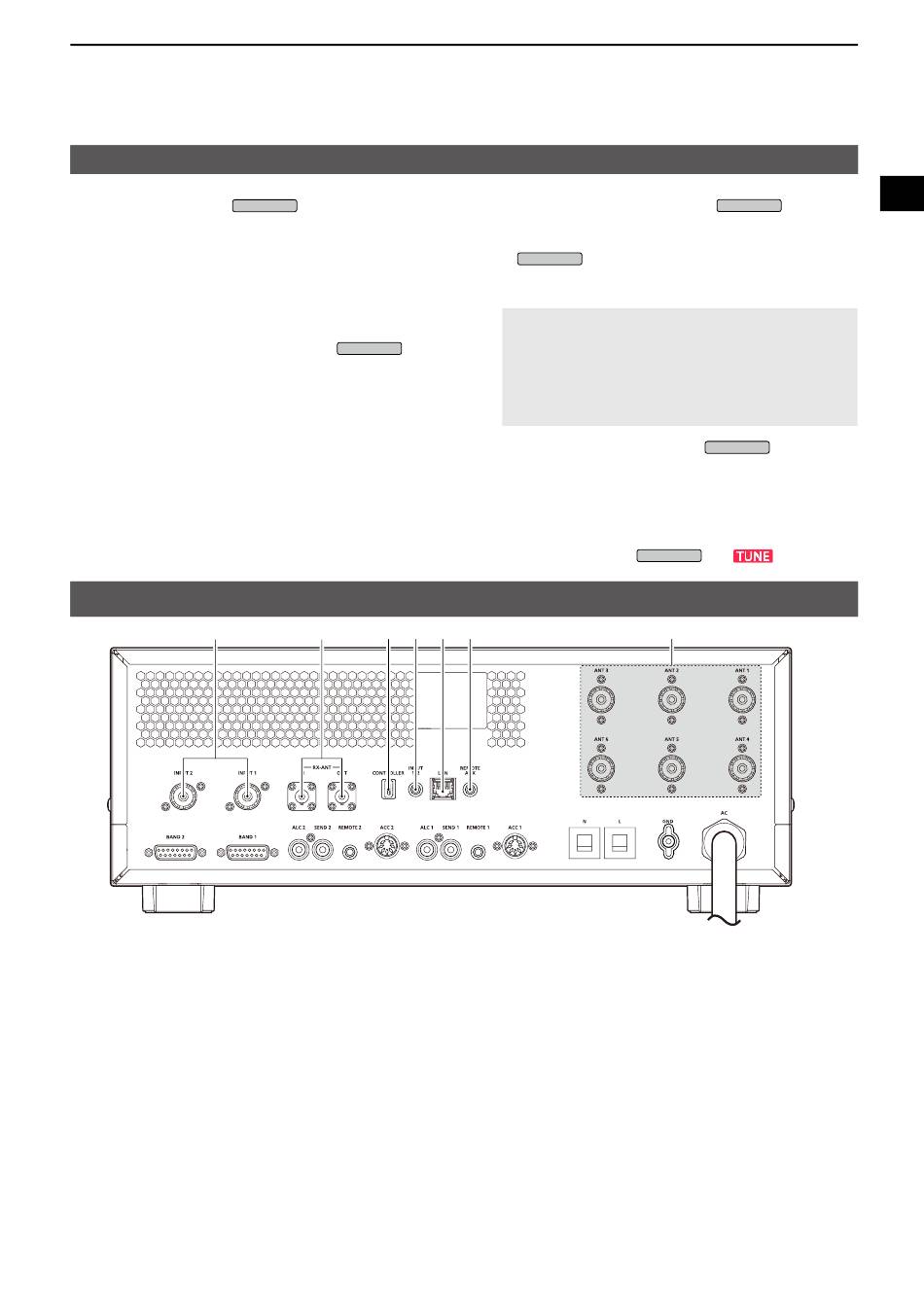

Rear panel

1
1 RF INPUT CONNECTORS
[INPUT 1]/[INPUT 2] (p. 12-1)
Input an RF signal from an exciter.
L Connect to an antenna connector of an exciter.
L To connect the second exciter, use the coaxial cable
same as the supplied one.
2 RECEIVE ANTENNA CONNECTORS
[RX-ANT IN]/[RX-ANT OUT] (p. 12-1)
Connect to an external unit, such as a preamplifier,
a band-pass filter, or an attenuator, using BNC
connectors.
3 CONTROLLER CONNECTOR [CONTROLLER]
(p. 2-2)
When the controller is separated from the main unit,
connects them using the supplied controller cable.
(p. 8-1)
when
PROTECT
2 3 4 5 6
1-2
PANEL DESCRIPTION
9 LINEAR AMPLIFIER SWITCH
Push to turn the linear amplifier circuit ON or OFF.
L When the circuit is turned ON, the indicator on
lights white.
AMP
L When the circuit is turned OFF, the exciter's output power
is directly output to the antenna tuner or connector.
NOTE: For only the USA version, the IC-PW2
cannot turn ON the amplifier circuit on 25.900001
~ 27.999999 MHz.
Due to the frequency error of the built-in frequency
counter, it may not be able to turn ON even outside
the above frequency range.
10 ANTENNA TUNER SWITCH
z Push to turn the internal antenna tuner ON or OFF.
(p. 4-1)
L When the internal antenna tuner is ON, the indicator
lights white.
z Hold down for 1 second to start tuning. (p. 5-1)
L The indicator on
TUNER
4 INPUT 1/2 JACK [INPUT 1/2] (p. 12-1)
Connects to an external device to control the
operations of [INPUT 1] and [INPUT 2].
5 ETHERNET CONNECTOR [LAN] (p. 12-1)
Connects to a PC network through a LAN.
6 REMOTE AUX JACK [REMOTE AUX] (p. 12-1)
Connects to control the linear amplifier (Turning the
power ON or OFF, and so on) or an external device,
such as an antenna rotator controller or a band
decoder, using CI-V commands.
7 ANTENNA CONNECTORS [ANT 1] ~ [ANT 6]
(p. 12-1)
Connect to a 50 Ω PL-259 coax connector.
(p. 4-1)
AMP
TUNER
and blink red.
