INSTALLATION AND CONNECTIONS
Connecting to exciters

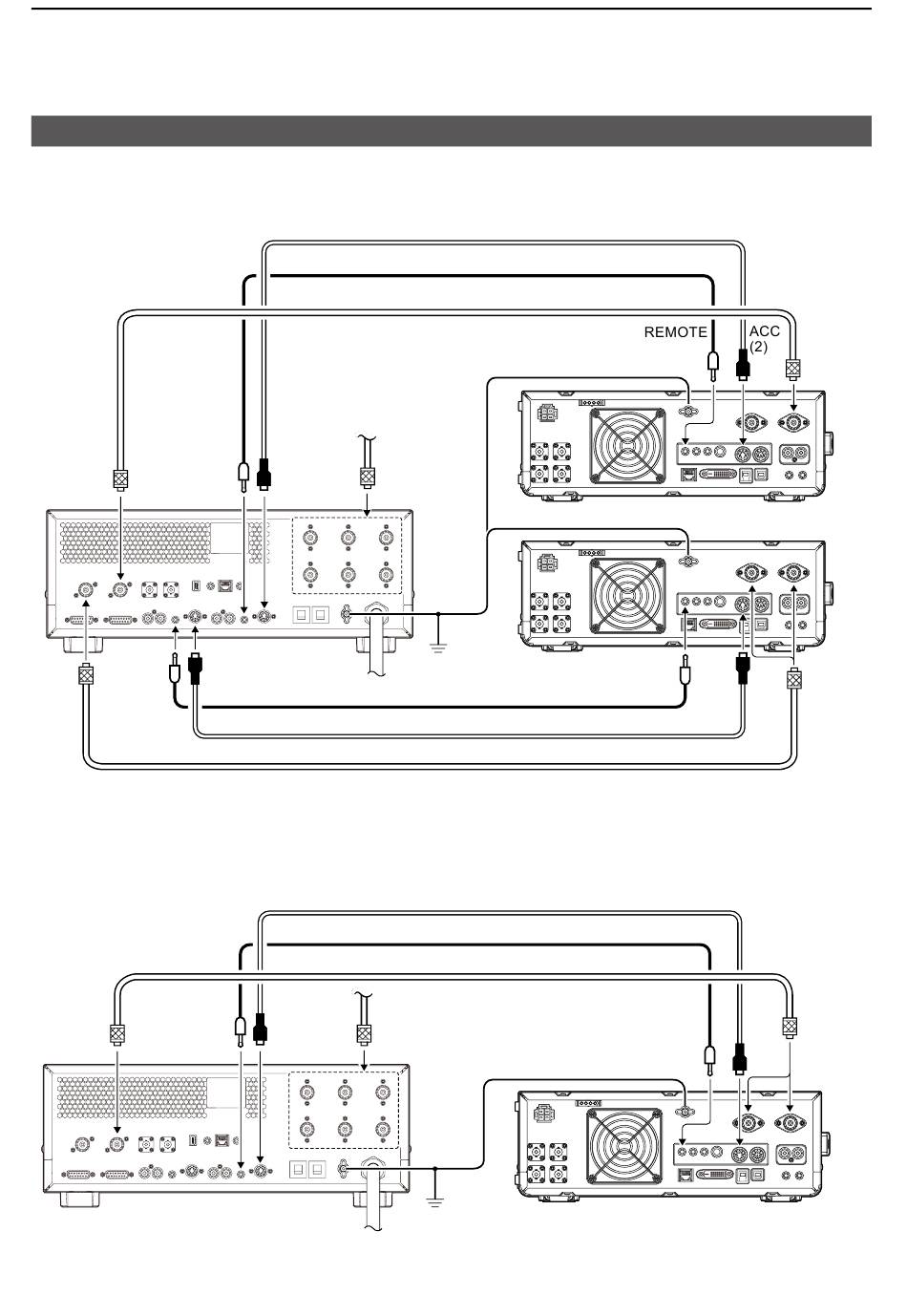

D Connecting 2 Icom exciters to [INPUT 1] and [INPUT 2]

INPUT1 REMOTE1
INPUT2
* To connect the second Icom exciter, use the optional OPK-5 (p. 11-1).

D Connecting 1 Icom exciter to [INPUT 1]

INPUT1 REMOTE1
IC-PW2
Supplied accessory cable
Supplied remote control cable
Supplied coaxial cable
To antenna
ACC1
IC-PW2
REMOTE2
Accessory cable*
ACC2
Remote control cable*
Coaxial cable*
Supplied accessory cable
Supplied remote control cable
Supplied coaxial cable
To antenna
ACC1 ANT
ANT
IC-7610
GND
Ground
IC-7610
GND
Ground
2-5
GND
GND
REMOTE ACC(2)
REMOTE ACC(2)
GND
IC-7610
ANT1
ANT 1 or
ANT 2
ANT 1 or
ANT 2
