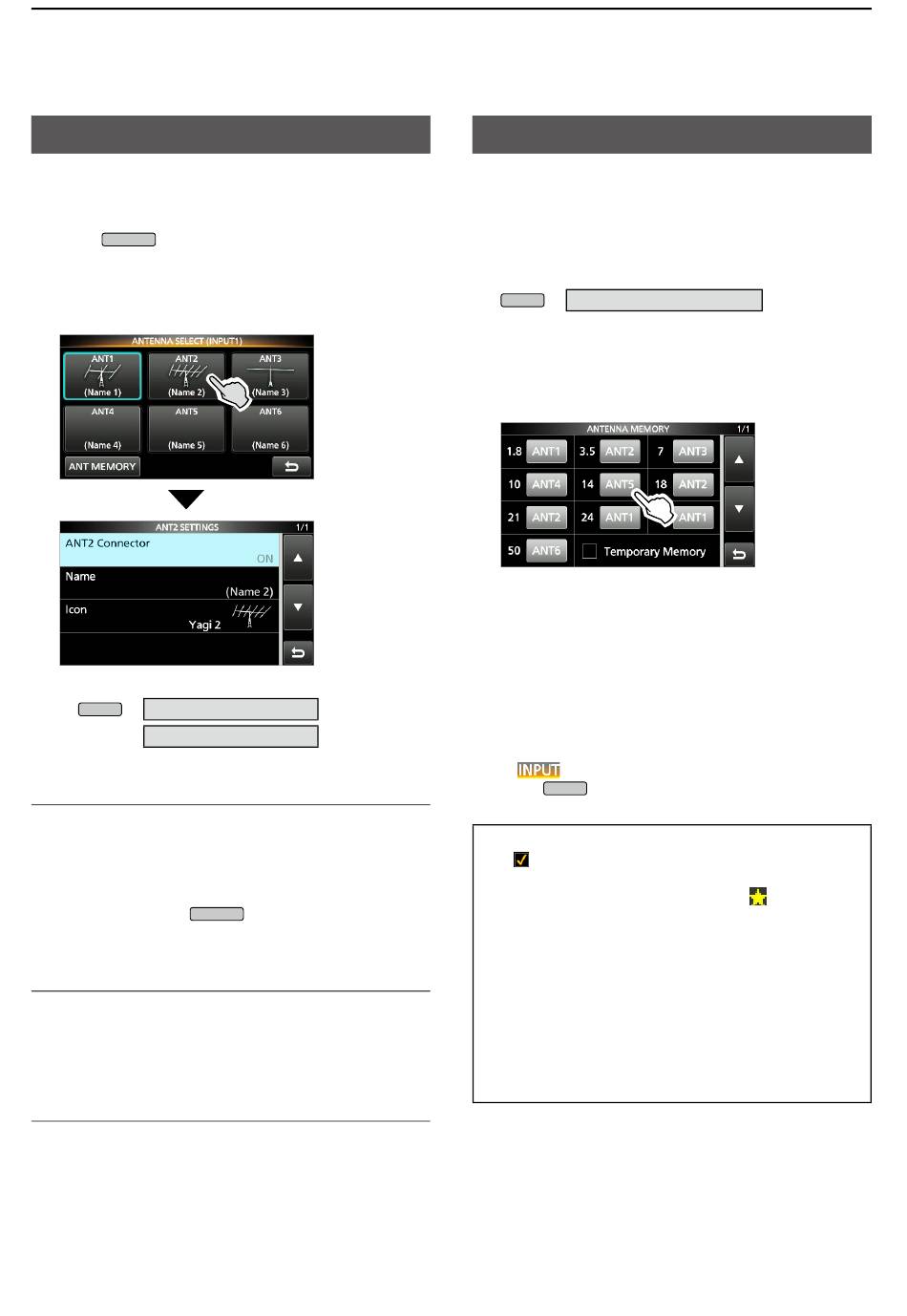

ANT key display settings

You can set whether or not to use each ANT key and
their names and icons.
1. Push .
ANT
• The ANTENNA SELECT screen is displayed.
2. Touch the desired ANT key for 1 second.
• The ANT SETTINGS screen is displayed.
(Example: ANT 2 SETTINGS screen)
L To display the screen from the Menu screen:
» ANT > ANT1 Settings
MENU
ANT > ANT6 Settings
ANT1 ~ 6 Connector
Select whether or not to enable the antenna
connector.
• OFF: You cannot select the antenna connector.
• ON: You can select the antenna connector.
L The connector set to "OFF" is excluded from the antenna
switching by pushing
and the target of the RX-I/O setting, and the ANT key is
grayed out.
Name (Default: (Name 1) ~ (Name 6))
Enter the name displayed in the ANT key.
L You can enter up to 16 characters.
L See page 1-8 for details on entering characters.
Icon (Default: ANT 1: Yagi 1, ANT 2: Yagi 2,
ANT 3: Dipole 1, ANT 4 to ANT 6:
No Icon)
Select the icon displayed in the ANT key.
• Options:
No icon, Yagi 1, Yagi 2, Vertical 1, Vertical 2,
Dipole 1, Dipole 2, Wire Dipole 1, Wire Dipole 2,
Wire, Quad, Dummy Load
~
(Default: ON)
, Antenna Memory setting,
ANT

Antenna memory

This function saves antenna connector settings for
each frequency band. You can set antenna connectors
(ANT 1 to ANT 6) to the selected bands.
L ANT 1 is set to all frequency bands as the default.
1. Open the ANTENNA MEMORY screen.
» ANT > Antenna Memory
MENU
L You can also display the screen by touching
[ANT MEMORY] in the ANTENNA SELECT screen.
2. Touch the desired key.
• The antenna connector is sequentially changed
between ANT 1 and ANT 6.
L The antenna connector set to "OFF" in the ANT1 ~ 6
Connector setting cannot be selected.
L When the antenna connector set in the ANTENNA
MEMORY screen is changed to "OFF" in the ANT1
~ 6 Connector setting, the connector set to "ON" will
be selected as the connector for that frequency band
instead.
L When the same antenna connector is set for both
[INPUT 1] and [INPUT 2] in the selected frequency
band, the Antenna Memory setting is applied for
(Lights orange: TX/RX side).
to exit the ANTENNA MEMORY
3. Push
MENU
screen.
When the Temporary Memory function is turned
ON ( ):
When the antenna connector different from the
Antenna Memory setting is selected (
and changes to another frequency band, the
changed setting will be temporarily saved (except for
the RX-I/O setting).
After selecting yet another band, when you return to
that band, the temporarily saved connector will be
selected.
L The Temporary Memory setting is updated each time
the combination of the antenna connector and the
frequency band is changed from the Antenna Memory
setting.
