Technical Specifications; Typical Applications Drawing - Altronix NetWay4E1L Series Installation Manual

Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily
usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates.
P1MM - For use with Multi-Mode Fiber for distances up to 550m.
P1SM10 - For use with Single-Mode Fiber for distances up to 10km.
P1AB2K - For use with Single Strand Single-Mode Fiber for distances up to 2km.
P1GCE - For use with CAT5e or better for distances up to 100m.
Parameter Description
Four (4) 10/100/1000 Mbps Ethernet ports. IEEE 802.3af, 802.3at compliant.
Number of Ports
One (1) Gigabit SFP Port.
Input Power
115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
Requirements
Operating Ambient Temperature:
Environmental
Conditions
Relative Humidity: 85%, +/– 5%
Storage Temperature: – 40ºC to 85ºC (– 40ºF to 185ºF).
Operating Altitude: – 304.8 to 2,000m.
Weights (approx.)
Fig. 3
IP Device
(802.3af / 802.3at)
IP Device
(802.3af / 802.3at)
IP Device
(802.3af / 802.3at)
IP Device
(802.3af / 802.3at)
NetWay4E1L Series Installation Guide
Recommended Altronix SFP Modules:

Technical Specifications:

60W: – 40ºC to 75ºC (– 40ºF to 167ºF);
75W: – 40ºC to 70ºC (– 40ºF to 158ºF);
With LiFePO 4 battery installed: 0°C to 40°C (32ºF to 104ºF).
Model
NetWay4E1LWP
NetWay4E1LWPX
NetWay4E1LX
NetWay4E1LPL

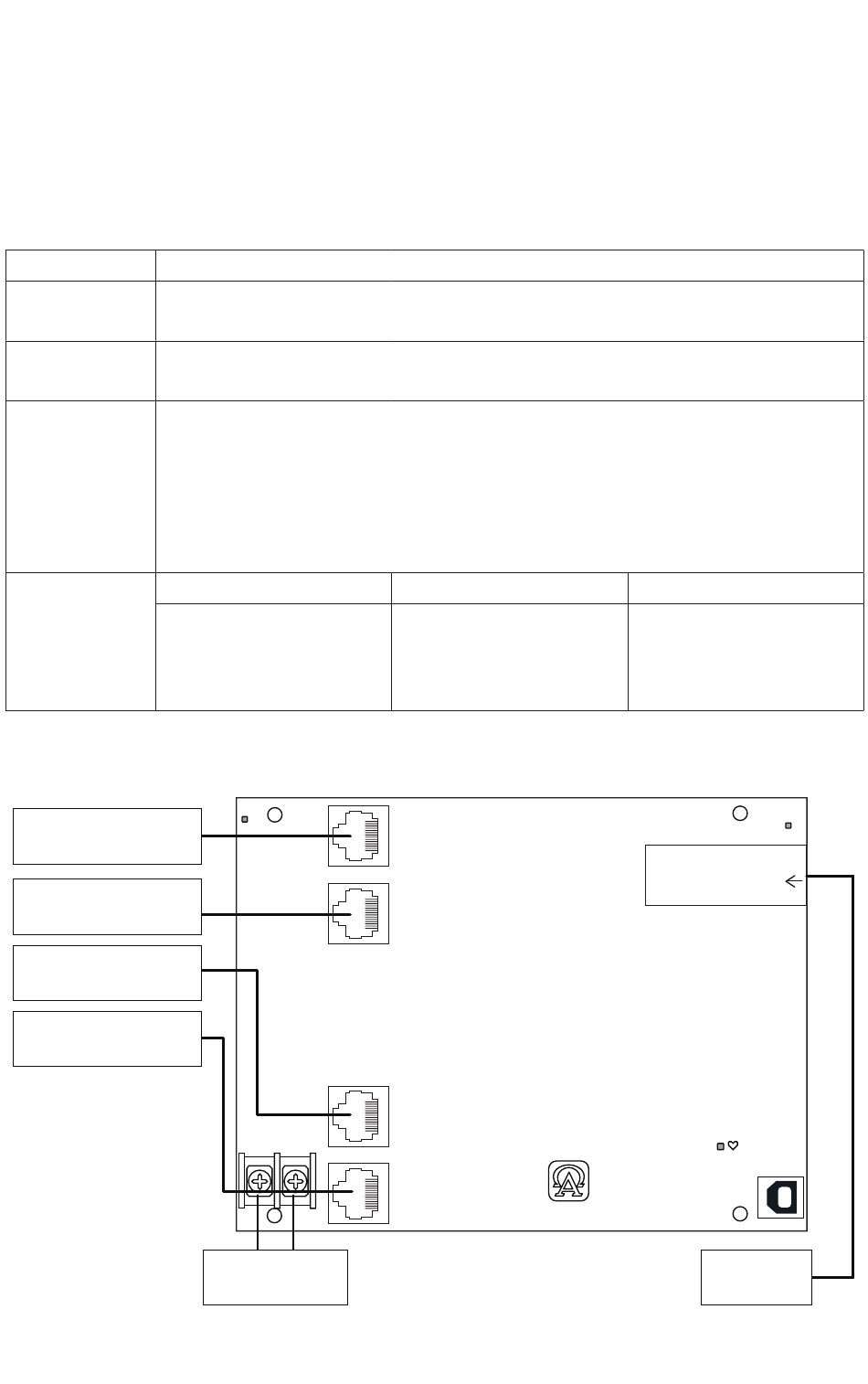

Typical Applications:
PWR
Input:
48V-56VDC
+ --
From Power
Supply
Product Weight
10.72 lb. (4.86 kg)
15 lb. (6.8 kg)
6.85 lb. (3.11 kg)
2.8 lb. (1.27 kg)
Shipping Weight
12.1 lb. (5.49 kg)
17.5 lb. (7.9 kg)
7.75 lb. (3.51 kg)
4.2 lb. (1.9 kg)
SFP1
ALOS
SFP Port
Fiber to
Switch
- 5 -
