Enclosure/Backplane Mounting Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes
and authorities having jurisdiction. All units should be installed by a trained service personnel.
NetWay4E1LWP/WPX Enclosure Mounting and Installation:
1. Remove backplane from enclosure prior to drilling. Do not discard hardware.
Note: Make sure that hardware will not interfere with components of the circuit board.
2. Mark and drill desired inlets on the enclosure to facilitate wiring. Maximum NEMA type 4X rated fittings to
be used are 0.5". Follow manufacturer's specifications for the appropriate size opening.
Note: Inlets for conduit fittings should only be made on the bottom of the enclosure.
UL Listed NEMA type 4X rated conduit connector/hubs shall be used for the appropriate size inlets.
3. Clean out the inside of enclosure before remounting circuit board.
4. Mounting NEMA4/4X rated enclosure (Enclosure Dimensions, pgs. 9-10):
Wall mount: Mount unit in desired location. Mark and drill holes to line up with the top and bottom holes of
the enclosure flange. Secure enclosure with appropriate fasteners (e. g. screws and anchors;
bolts and locking nuts, etc.) that are compatible with mounting surface and are of sufficient
length/construction to ensure a secure mount (Fig. 4, pg. 6).
Pole Mount: Refer to Fig. 5 - 9, pg. 6.
5. Mount backplane in enclosure with hardware.
6. To facilitate wire entry utilize weather-tight NEMA rated connectors (supplied), bushings, and cable.
NetWay4E1LX Enclosure Mounting and Installation:
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes
in the enclosure. Install two (2) upper fasteners and screws in the wall with the screw heads protruding.
Place the enclosure's upper keyholes over the two (2) upper screws; level and secure. Mark the position of
the lower two (2) holes. Remove the enclosure. Drill the lower holes and install two fasteners. Place the
enclosure's upper keyholes over the two (2) upper screws. Install the two (2) lower screws and make sure to
tighten all screws (Enclosure Dimensions, pg. 7). Secure enclosure to earth ground.
NetWay4E1LPL Mounting and Installation:
1. Mount backplane in the desired location/enclosure with hardware supplied (Backplane Dimensions, pg. 8).
1. Secure cabinet to earth ground. Connect AC power from overcurrent protective
device circuit breaker (20A @ 115VAC, 60Hz, 16A @ 230VAC, 50/60Hz) to the
terminals marked [L, N] on power supply board (Fig. 1, pg. 4). Use 14AWG or
larger for all power connections (Battery, DC output, AC input).
Connect ground lug
Keep power-limited wiring separate from non power-limited wiring by
utilizing separate knockouts/inlets. Minimum 0.25" spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before
installing or servicing equipment. There are no user serviceable parts inside.
Refer installation and servicing to qualified service personnel.
2. Connect structured cables from port marked [Port 1] to [Port 4] on NetWay unit to
PoE compliant cameras/edge devices (Fig. 3, pg. 5).
Note: All interconnected devices must be UL Listed.
3. Insert SFP module into port marked [SFP], then connect cable to the SFP
module on NetWay4E1B to the corresponding input of an SFP switch (Fig. 3, pg. 5).
4. Battery Backup (if desired): Connect one (1) 12V LiFePO 4
(Lithium Iron Phosphate) battery to terminals marked [+ BAT –] (Fig. 2, pg. 4),
carefully observing polarity.
Use Altronix BTL125 12V/4.5AH Lithium Iron Phosphate battery.
Note: LiFePO 4 batteries have a restricted temperature range.
Note: When battery is not used, a loss of AC will result in the loss of output voltage.
CAUTION: Do not use lead acid or gel type batteries.
5. Please ensure that the cover is secured with:
Key lock and screws for NetWay4E1LX, security bolt for NetWay4E1LWP/WPX.
- 4 -

Installation Instructions:

to earth or green branch wire (12AWG min.).

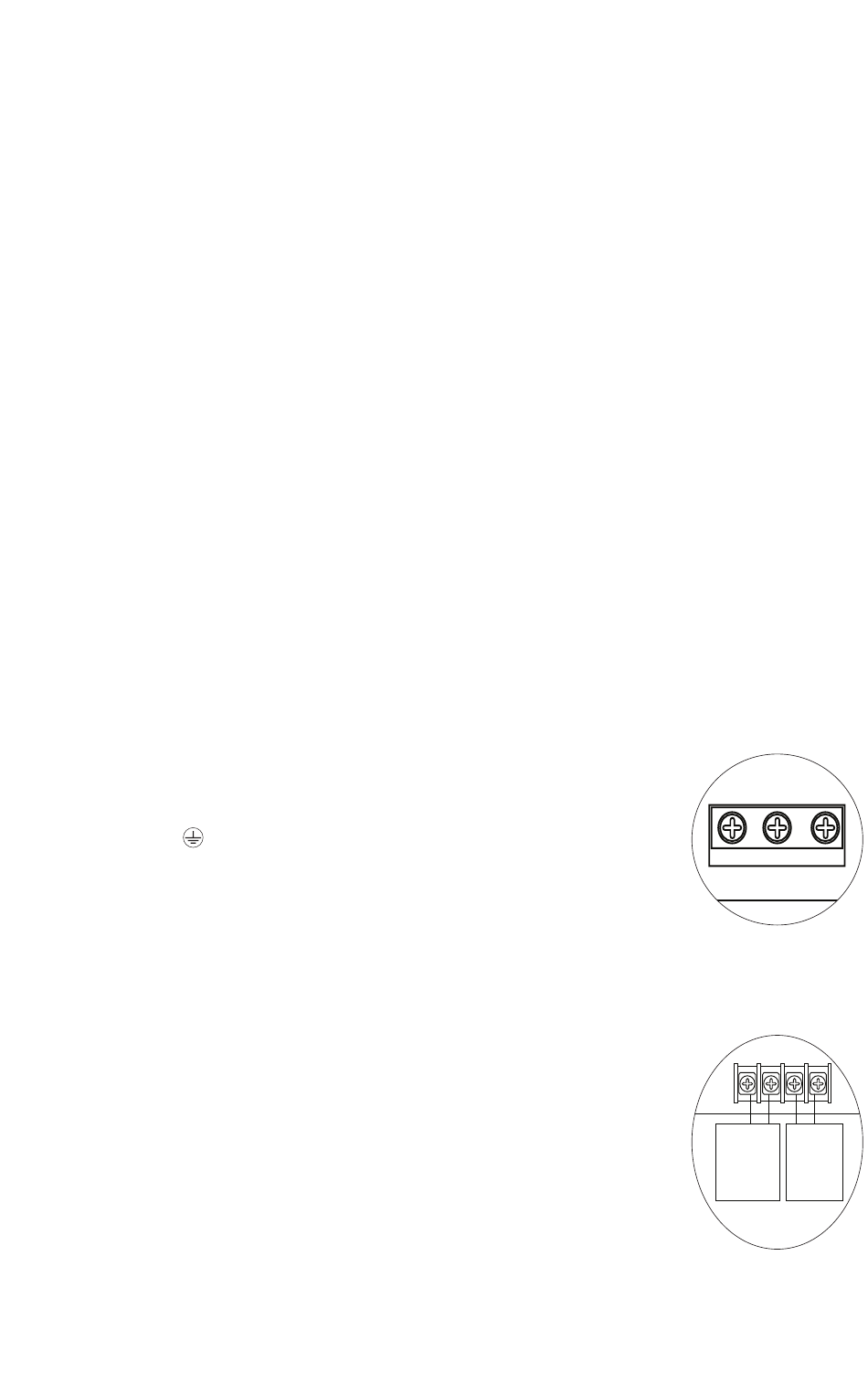

Fig. 1
L G N
Fig. 2
+ BAT – – DC +
To
To
Stand-by
Switch
LiFePO 4
Board
Battery
NetWay4E1L Series Installation Guide
