3-Port Ethernet over Fiber
PoE+ Hardened Switches
Installation Guide
Models include:
NetWaySP3WP
- Includes Fiber Optic SFP 1G Link,
3-port PoE+ switch and power supply.

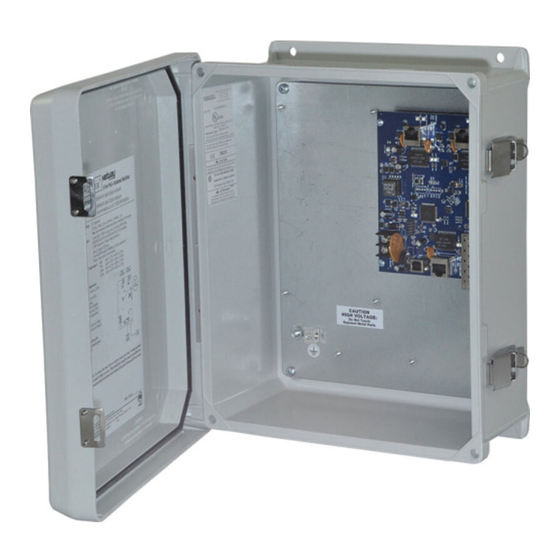

- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP3WPX
- Includes Fiber Optic SFP 1G Link,
3-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
- Accommodates up to four (4)
12VDC/4AH batteries.
NetWaySP3X
- Includes Fiber Optic SFP 1G Link,
3-port PoE+ switch and power supply.
- NEMA1 rated Indoor enclosure.
I.T.E. 43KC
DOC#: NetWaySP3 Rev. 020917
NetWaySP3WPN
- Includes Fiber Optic SFP 1G Link and
3-port PoE+ switch
(uses external power supply).
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP3PL
- Includes Fiber Optic SFP 1G Link,
3-port PoE+ switch and power supply.
- Backplane version.
NetWaySP3B
- Fiber Optic SFP 1G Link and
3-port PoE+ switch
- Board only.
More than just power.
Embedded
™
TM
Advertisement
Table of Contents
Related Manuals for Altronix Netway Spectrum Series
Summary of Contents for Altronix Netway Spectrum Series
- Page 1 Embedded ™ 3-Port Ethernet over Fiber PoE+ Hardened Switches Installation Guide Models include: NetWaySP3WP NetWaySP3WPN - Includes Fiber Optic SFP 1G Link and - Includes Fiber Optic SFP 1G Link, 3-port PoE+ switch 3-port PoE+ switch and power supply. (uses external power supply). - NEMA4/4X, IP66 rated Outdoor enclosure.
-
Page 2: Agency Listings
Overview: Altronix NetWay Indoor/Outdoor Ethernet over Fiber PoE+ Hardened Switches provide a 1Gb SFP port and three (3) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere. -
Page 3: Installation Instructions
Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. All units should be installed by a trained service personnel. NetWaySP3WP/SP3WPN/SP3WPX Enclosure Mounting and Installation: 1. Remove backplane from enclosure prior to drilling. Do not discard hardware. Note: Make sure that hardware will not interfere with components of the circuit board. -
Page 4: Technical Specifications
Recommended Altronix SFP Modules: Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates. P1MM - For use with Multi-Mode Fiber for distances up to 550m. - Page 5 D. HTTP Port: Enter the HTTP port number assigned to the NetWaySP3 module by the network administrator to allow remote access and monitoring. The default inbound port setting is 80. HTTP is not encrypted and unsecure. Even though HTTP can be used for remote access, it is recommended primarily for use with LAN connections.
- Page 6 NetwaySP3B ALOS PORT2 Spd: 10/100/1000 Link PoE: 30W/60W PoE_Data Altronix Cor PoE_SPR Brooklyn, NY US www.altronix.com PORT3 (Uplink) Spd: 10/100/1000 Link PoE: 30W PORT1 Spd: 10/100/1000 PoE: 30W/60W Link PoE_Data PoE_SPR Factory Reset Input: 48V-56VDC 3.3V PWR 5A 250VA - BAT +...
- Page 7 NetwaySP3B ALOS PORT2 Spd: 10/100/1000 Link PoE: 30W/60W PoE_Data Altronix Cor PoE_SPR Brooklyn, NY US www.altronix.com PORT3 (Uplink) Spd: 10/100/1000 Link PoE: 30W PORT1 Spd: 10/100/1000 PoE: 30W/60W Link PoE_Data PoE_SPR Factory Reset Input: 48V-56VDC 3.3V PWR NetWaySP3 Series - 7 -...
-
Page 8: Wall Mount Installation
This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures. PMK1 and PMK2 can be mounted on 2”... - Page 9 NetWaySP3X Mechanical Drawing and Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm) 1.40” 4.85” 4.85” 1.40” (36mm) (123mm) (123mm) (36mm) 1.20” (31mm) 3.25” (83mm) 12.5” (318mm) 1.20” 1.20” 0.75” 0.75” (31mm) 11.0”...
- Page 10 NetWaySP3PL Mechanical Drawing and Dimensions (H x W x D approx.): 10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm) 8.875” (225.4mm) 8.25” (209.5mm) 0.25” (6.4mm) 10.25” 10.75” (260.3mm) (273.1mm) - 10 - NetWaySP3 Series...
- Page 11 NetWaySP3WP and NetWaySP3WPN Mechanical Drawing and Dimensions (H x W x D approx.): 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm) - 11 - NetWaySP3 Series...
- Page 12 17.53” x 15.3” x 6.67” (445.3mm x 388.6mm x 169.4mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IINetWaySP3 Series...
