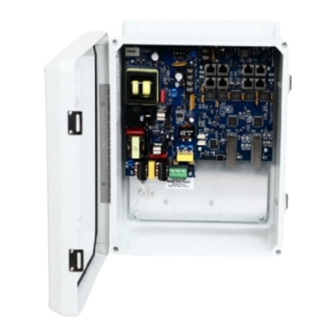

NetWaySP8WP2 Series
8-Port Ethernet over Fiber
PoE+ Hardened Switches
Models Include:
NetWaySP8WP2
- Dual Fiber Optic SFP 1G Link,
8-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP8WPX2
- Dual Fiber Optic SFP 1G Link,
8-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
- Accommodates up to four (4)
12VDC/4AH batteries.
Installation Guide
Rev. 071321
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
NetWaySP8X2
- Dual Fiber Optic SFP 1G Link,
8-port PoE+ switch and power supply.
- NEMA1 rated Indoor enclosure.
NetWaySP8PL2
- Dual Fiber Optic SFP 1G Link,
8-port PoE+ switch and power supply.
- Backplane version.
More than just power.
Embedded
™
TM
Advertisement
Table of Contents
Related Manuals for Altronix NetWaySP8WP2 Series
Summary of Contents for Altronix NetWaySP8WP2 Series
- Page 1 Embedded ™ NetWaySP8WP2 Series 8-Port Ethernet over Fiber PoE+ Hardened Switches Models Include: NetWaySP8WP2 NetWaySP8X2 - Dual Fiber Optic SFP 1G Link, - Dual Fiber Optic SFP 1G Link, 8-port PoE+ switch and power supply. 8-port PoE+ switch and power supply.
-
Page 2: Table Of Contents
Recommended Altronix SFP Modules ........ -
Page 3: Overview
Overview: Altronix NetWaySP8WP2 Series Indoor/Outdoor Ethernet over Fiber PoE Hardened Switches provide two (2) 1Gb SFP ports and eight (8) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/ PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere. -
Page 4: Enclosure/Backplane Mounting Instructions
Enclosure Mounting Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. All units should be installed by a trained service personnel. NetWaySP8WP2/NetWaySP8WPX2 Enclosure Mounting and Installation: 1. Remove backplane from enclosure prior to drilling. Do not discard hardware. Note: Make sure that hardware will not interfere with components of the circuit board. -
Page 5: Recommended Altronix Sfp Modules
7. Please ensure that the cover is secured with: Key lock and screws for NetWaySP8X2, security bolt for NetWaySP8WP2/NetWaySP8WPX2. Recommended Altronix SFP Modules: P1MM - For use with Multi-Mode Fiber for distances up to 550m. P1SM10 - For use with Single-Mode Fiber for distances up to 10km. -
Page 6: Configuring Units For Network Connection
Configuring Units for Network Connection –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Please be sure to visit altronix.com for latest firmware and installation instructions –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Factory Default Settings • IP Address: 192.168.168.168 • User Name: admin • Password: admin 1. Set the static IP address for the laptop to be used for programming to the same network IP address as the NetwaySP8. -
Page 7: Secure Network Setup
Secure Network Setup (HTTPS): In order to setup HTTPS for a Secure Network Connection, a Valid Certificate and Key must be used. Certificates and Key should be in a “.PEM” format. Self Certifications should only be used for testing purposes as no actual authentication is being performed. In a Self-Certified mode, the connection will still state that it is unsecure. -
Page 8: Vlans
It is important to plan how you will setup your devices for each vLan. Configuring vLan on the Altronix NetwaySP8 Series Switch: 1. Ensure Laptop or PC being used to program the vLan settings is on a port that will be assigned to your first vLan configuration. -
Page 9: Vlan Setup Drawing
Typical VLan Setup: Fig. 3 Example Example vLan ID 20 vLan ID 10 for ports 5-6 for ports 1-4 Pass thru Trunk (i.e. VLan ID 10 and/or 20) (i.e. VLan ID 10 and 20) Fiber to Fiber from Next NetWaySP82 Host Switch NetWaySP82 Series Installation Guide - 9 -... -
Page 10: Typical Applications Drawing
1000 PORT5 PORT6 1000 SFP2 PORT7 PORT8 PORT 3 PORT 4 (1G) ALOS SFP Port PORT 5 PORT 6 (1G) Altronix Corp. Brooklyn, NY US www.altronix.com Factory Reset PORT 7 PORT 8 PoE5 PoE6 PoE7 PoE8 Input: 48V-56VDC 5A 250VA –... -
Page 11: Wall Mount Installation
This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures. PMK1 and PMK2 can be mounted on 2”... -
Page 12: Mechanical Drawings And Dimensions
NetWaySP8X2 Mechanical Drawing and Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm) 1.40” 1.40” 4.85” (123.2mm) 4.85” (123.2mm) (35.6mm) (35.6mm) 1.20” (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0”... - Page 13 NetWaySP8PL2 Mechanical Drawing and Dimensions (H x W x D approx.): 10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm) 8.875” (225.4mm) 8.25” (209.5mm) 0.25” (6.4mm) NetWaySP82 Series Installation Guide - 13 -...
- Page 14 NetWaySP8WP2 Mechanical Drawing and Dimensions (H x W x D approx.): 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm) FRONT VIEW RIGHT SIDE VIEW 11.31” (287.3mm) 3.96” (100.6mm) FRONT VIEW COVER REMOVED END VIEW 10.75” (273.1mm) 10.00” (254mm) STAINLESS STEEL PIANO HINGE 8.25”...
- Page 15 NetWaySP8WPX2 Mechanical Drawing and Dimensions (H x W x D approx.): 17.53” x 15.3” x 6.67” (445.3mm x 388.6mm x 169.4mm) FRONT VIEW RIGHT SIDE VIEW 1.67” (42.4mm) 15.3” (388.6mm) 5.00” (127mm) 316 STAINLESS STEEL PADLOCK LATCH FRONT VIEW COVER REMOVED ATTACHED WITH RIVETS.
- Page 16 Notes: MEMBER - 16 - NetWaySP82 Series Installation Guide...
