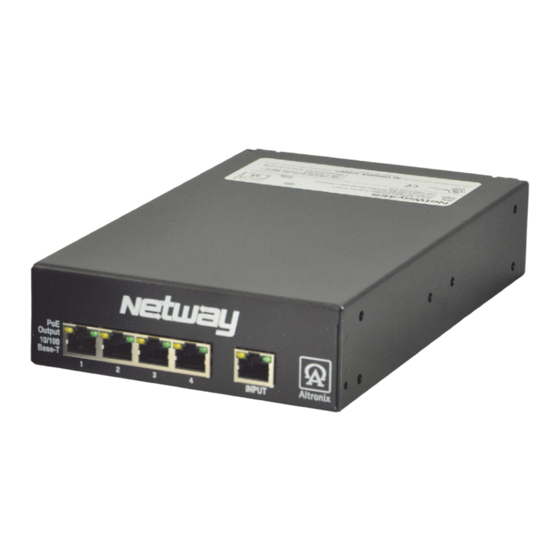

- Page 1 ® Ethernet/Network Communications Module Installation Guide NetWay4ES - 4-Port Managed PoE/PoE+ Switch NetWay4ESK - Kit includes: NetWay4ES and NetWay1D (60W Midspan Injector, 115VAC / 230VAC input) I.T.E. 43KC More than just power.™ Rev. 120913...
-
Page 2: Installation Instructions
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application. Midspan or endspan and NetWay4ES is not intended to be connected to outside plant leads and should be installed indoors within the protected premises. -
Page 3: Technical Specifications
NetWay1D: Red LED: PoE ON. Red LED: Power ON. Indicators NetWay1D and NetWay4ES: Yellow (RJ45 connector): On - Linked, Off - No Link, Blinking - Activity. Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T. Operating Ambient Temperature (UL60950-1): NetWay1D: 30W: -30ºC to 50ºC (-22ºF to 122ºF). -
Page 4: Typical Application
IP Camera IP Camera Switch 1 + 2 = maximum CAT-5e or higher structured cable distance 100m. (Head End Equipment) Note: Maximum 30W from NetWay4ES Fig. 2 - NetWay4ESK. NetWay4ES powered by NetWay1D midspan injector. NetWay1D NetWay4ES (MDF) (IDF) Aux. Output... -
Page 5: Internet Browser Setup
• Password: admin 1. Set the static IP address for the laptop to be used for programming to the same network IP address as the NetWay4ES, ie. 192.168.168.200 (the default address of the NetWay4ES is 192.168.168.168). 2. Connect one end of the network cable to the network jack on the NetWay4ES and the other to the network connection of the laptop. - Page 6 1. After selecting DHCP in the IP Address Method field click the button labeled Submit Network Settings. A dialog box will display “New network settings will take effect after the server is rebooted”. Click OK. Next, click on the button labeled Reboot Server. After rebooting the NetWay4ES will be set in the DHCP mode.
- Page 7 Click on the tab labeled Setup. The NetWay4ES setup page will open. In this screen the Site ID, Date/Time, and Port identification are set up, along with the abil- ity to enable and disable individual ports. Site ID (Fig. 4a, pg. 7): Enter a descriptive name that will identify the location of the NetWay4ES. The Site ID will appear in both the trap message and email notifications.
-
Page 8: Management Interface
® Security Settings: Click on the tab labeled Security Settings. The NetWay4ES security setting page will open. In this screen the SSL certificate and Key will be entered, the SSL can Status Setup Network Settings Security Settings Events L be enabled or disabled and new username and password can be set. Using an SSL certificate will ensure that when remotely accessing the NetWay4ES all data has NetWay4ES been encrypted and there for secure through the assigned HTPPS Port. -
Page 9: Events Log
Event Log and Heartbeat Timer (Fig. 6, pg. 9): Save Username and Password Click on the tab labeled Event Log. The NetWay4ES event log will open. This screen will display the event log along with the heartbeat timer setup. Event Log: The event log will display the 50 most recent events. -
Page 10: Updating Firmware
Heartbeat Timer Settings: Submit Days Hours Minutes Seconds Updating Firmware: Firmware updates must be done using Altronix Dashboard. For additional information refer to the Altronix Dashboard setup/user manual section Updating firmware / SSL certificate and Key. - 10 - NetWay4ES/NetWay4ESK... -
Page 11: Status Screen
Management Interface ® v1.99.22 Status Setup Network Settings Security Settings Events Log NetWay4ES Status Wednesday, Jul. 15 2015 [9:35 am] Site ID: RJ Sports Wear Port 1 : Main Entrance Port 2 : Production Class Power Actual Power Draw Class Power... -
Page 12: Shelf Installation
Four (4) rubber pads Rubber Feet Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. IINetWay4ES L20P MEMBER - 12 -...
