Altronix NetWay Series Installation Manual

4-port ethernet over fiber poe+ hardened switches
Hide thumbs Also See for NetWay Series:
Table of Contents

Advertisement

Quick Links

Download this manual
4-Port Ethernet over Fiber
PoE+ Hardened Switches
Installation Guide
Models include:

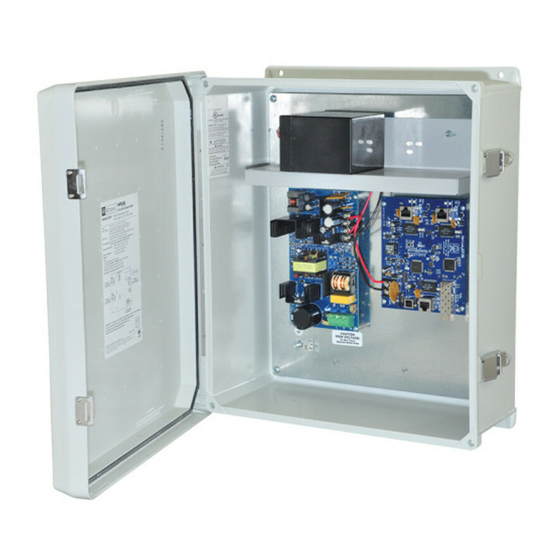

NetWaySP4WP
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP4WPX
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
- Accommodates up to four (4)
12VDC/4AH batteries.
NetWaySP4X
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- NEMA1 rated Indoor enclosure.
I.T.E. 43KC
DOC#: NetWaySP4 Rev. 032917
NetWaySP4WPN
- Dual Fiber Optic SFP 1G Link and
4-port PoE+ switch
(uses external power supply).
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP4PL
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- Backplane version.
NetWaySP4B
- Dual Optic SFP 1G Link and
4-port PoE+ switch
- Board only.
More than just power.
Embedded
™
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetWay Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix NetWay Series

Summary of Contents for Altronix NetWay Series

  • Page 1 Embedded ™ 4-Port Ethernet over Fiber PoE+ Hardened Switches Installation Guide Models include: NetWaySP4WP NetWaySP4WPN - Dual Fiber Optic SFP 1G Link, - Dual Fiber Optic SFP 1G Link and 4-port PoE+ switch and power supply. 4-port PoE+ switch - NEMA4/4X, IP66 rated Outdoor enclosure. (uses external power supply).

  • Page 2: Table Of Contents

    Recommended Altronix SFP Modules . . . . . . . . . . . . . . . . . .

  • Page 3: Overview

    Overview: Altronix NetWay Indoor/Outdoor Ethernet over Fiber PoE Hardened Switches provide two (2) 1Gb SFP ports and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices . Cameras/edge devices may be located up to 100m from the unit . Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere .

  • Page 4: Enclosure/Board/Backplane Mounting Instructions

    [+] and [–] . PORT 4 PoE4 Factory Reset Note: For proper earth ground connections on NetWaySP4B + -- Altronix Corp. Brooklyn, NY US Input: www.altronix.com 48V-56VDC fasten metal standoffs (provided) to threaded studs at indicated Metal Standoffs board mounting holes (shown on the right) .

  • Page 5: Recommended Altronix Sfp Modules

    NetWaySP4WPX. Recommended Altronix SFP Modules: Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates . P1MM - For use with Multi-Mode Fiber for distances up to 550m .

  • Page 6: Network Settings

    Network Settings: In the IP Address Method field select the method that the IP Address for the NetWaySP4 will be obtained (STATIC or DHCP), then follow the appropriate steps . Static: A . IP Address: Enter the IP address assigned to the NetWaySP4 by the network administrator . B .

  • Page 7: Vlans

    . It is important to plan how you will setup your devices for each vLan . Configuring vLan on the Altronix NetwaySP4 series switch: 1 . Ensure Laptop or PC being used to program the vLan settings is on a port that will be assigned to your first vLan configuration .
  • Page 8 NetwaySP4B PORT 1 SFP1 ALOS SFP1 PORT 2 SFP2 ALOS SFP2 PORT 3 PORT 4 - 8 - NetWaySP4 Series...

  • Page 9: Typical Applications Drawings

    PORT 2 PoE2 1000 PORT3 PORT4 SFP2 ALOS SFP Port PORT 3 PoE3 PORT 4 PoE4 Factory Reset + -- Altronix Corp. Brooklyn, NY US Input: www.altronix.com 48V-56VDC 5A 250VA - BAT + --- DC + NetWaySP4 Series - 9 -...
  • Page 10 PORT1 PORT2 PORT 1 PoE1 SFP Port PORT 2 PoE2 1000 PORT3 PORT4 SFP2 ALOS SFP Port PORT 3 PoE3 PORT 4 PoE4 Factory Reset + -- Altronix Corp. Brooklyn, NY US Input: www.altronix.com 48V-56VDC - 10 - NetWaySP4 Series...

  • Page 11: Wall Mount Installation

    This installation should be made by qualified service personnel . This product contains no serviceable parts . PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures . PMK1 and PMK2 can be mounted on 2”...

  • Page 12: Mechanical Drawings And Dimensions

    NetWaySP4X Mechanical Drawing and Dimensions (H x W x D approx.): 13 .5” x 13” x 3 .25” (342 .9mm x 330 .2mm x 82 .6mm) 1 . 4 0” 4 . 8 5” 4 . 8 5” 1 . 4 0” (36mm) (123mm) (123mm)
  • Page 13 NetWaySP4PL Mechanical Drawing and Dimensions (H x W x D approx.): 10 .75” x 8 .875” x 2 .375” (273 .1mm x 225 .4mm x 60 .3mm) 8.875” (225.4mm) 8.25” (209.5mm) 0.25” (6.4mm) 10.25” 10.75” (260.3mm) (273.1mm) NetWaySP4 Series - 13 -...
  • Page 14 NetWaySP4WP and NetWaySP4WPN Mechanical Drawing and Dimensions (H x W x D approx.): 13 .31” x 11 .31” x 5 .59” (338 .1mm x 287 .3mm x 142mm) - 14 - NetWaySP4 Series...
  • Page 15 NetWaySP4WPX Mechanical Drawing and Dimensions (H x W x D approx.): 17 .53” x 15 .3” x 6 .67” (445 .3mm x 388 .6mm x 169 .4mm) NetWaySP4 Series - 15 -...
  • Page 16 Altronix is not responsible for any typographical errors . 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A . MEMBER...
