Fiber Solution

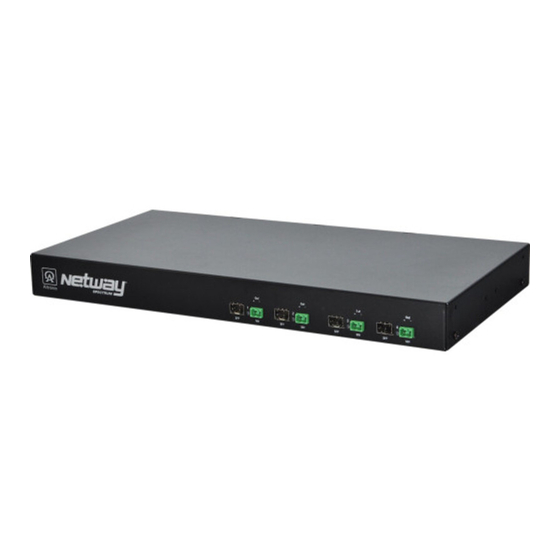

NetWaySP4 Series
4-Port Ethernet over Fiber
PoE+ Hardened Switches
Models Include:
NetWaySP4WP
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP4WPX
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
- Accommodates up to four (4)
12VDC/4AH batteries.
NetWaySP4X
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- NEMA1 rated Indoor enclosure.
Installation Guide
I.T.E. 43KC
DOC#: NetWaySP4 Rev. 032917
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
NetWaySP4WPN
- Dual Fiber Optic SFP 1G Link and
4-port PoE+ switch
(uses external power supply).
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP4PL
- Dual Fiber Optic SFP 1G Link,
4-port PoE+ switch and power supply.
- Backplane version.
NetWaySP4B
- Dual Optic SFP 1G Link and
4-port PoE+ switch
- Board only.
More than just power.
Embedded
™
TM
Advertisement
Table of Contents
Related Manuals for Altronix Netway Spectrum NetWaySP4 Series
Summary of Contents for Altronix Netway Spectrum NetWaySP4 Series
- Page 1 Embedded ™ Fiber Solution NetWaySP4 Series 4-Port Ethernet over Fiber PoE+ Hardened Switches Models Include: NetWaySP4WP NetWaySP4WPN - Dual Fiber Optic SFP 1G Link, - Dual Fiber Optic SFP 1G Link and 4-port PoE+ switch and power supply. 4-port PoE+ switch - NEMA4/4X, IP66 rated Outdoor enclosure.
-
Page 2: Table Of Contents
Recommended Altronix SFP Modules ........ -
Page 3: Overview
Overview: Altronix NetWay Indoor/Outdoor Ethernet over Fiber PoE Hardened Switches provide two (2) 1Gb SFP ports and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere. -
Page 4: Mounting Instructions
2. NetWaySP4B: Connect 56VDC/120W max power source to terminal marked [+] and [–]. PORT 4 PoE4 Factory Reset + -- Altronix Corp. Note: For proper earth ground connections on NetWaySP4B Brooklyn, NY US Input: www.altronix.com 48V-56VDC fasten metal spacers (provided) to threaded studs at indicated Metal Spacers board mounting holes (shown on the right). -
Page 5: Recommended Altronix Sfp Modules
NetWaySP4WPX. Recommended Altronix SFP Modules: Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates. P1MM - For use with Multi-Mode Fiber for distances up to 550m. -
Page 6: Configuring Units For Network Connection
Configuring Units for Network Connection –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Please be sure to visit altronix.com for latest firmware and installation instructions –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Factory Default Settings • IP Address: 192.168.168.168 • User Name: admin • Password: admin 1. Set the static IP address for the laptop to be used for programming to the same network IP address as the NetwaySP4. -
Page 7: Secure Network Setup
Secure Network Setup (HTTPS): In order to setup HTTPS for a Secure Network Connection, a Valid Certificate and Key must be used. Certificates and Key should be in a “.PEM” format. Self Certifications should only be used for testing purposes as no actual authentication is being performed. In a Self-Certified mode, the connection will still state that it is unsecure. -
Page 8: Vlans
It is important to plan how you will setup your devices for each vLan. Configuring vLan on the Altronix NetwaySP4 Series Switch: 1. Ensure Laptop or PC being used to program the vLan settings is on a port that will be assigned to your first vLan configuration. -
Page 9: Vlan Setup Drawing
Typical VLan Setup: Fig. 4 Example Example vLan ID 20 vLan ID 10 for ports 3-4 for ports 1-2 Pass thru Trunk (i.e. VLan ID 10 and/or 20) (i.e. VLan ID 10 and 20) Fiber to Fiber from Next NetWaySP4 Host Switch NetWaySP4 Series Installation Guide - 9 -... -
Page 10: Typical Applications Drawings
1000 PORT3 PORT4 SFP2 ALOS SFP Port PORT 3 PoE3 PORT 4 PoE4 Factory Reset + -- Altronix Corp. Brooklyn, NY US Input: www.altronix.com 48V-56VDC 5A 250VA - BAT + --- DC + - 10 - NetWaySP4 Series Installation Guide... - Page 11 Fig. 6 - NetWaySP4WPN – Typical Application with Composite Cable PoE/PoE+ PoE/PoE+ or Hi-PoE Device or Hi-PoE Device IP PoE/PoE+ Device PORT 3 PORT 2 Factory Reset Fiber Switch Fiber to the next Netway Spectrum Composite Cable Hardened PoE Switch 48-55V UL Listed ITE Power Supply Carefully observe polarity...
-
Page 12: Wall Mount Installation
This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures. PMK1 and PMK2 can be mounted on 2”... -
Page 13: Mechanical Drawings And Dimensions
NetWaySP4X Mechanical Drawing and Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm) 1.40” 1.40” 4.85” (123.2mm) 4.85” (123.2mm) (35.6mm) (35.6mm) 1.20” (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0”... - Page 14 NetWaySP4PL Mechanical Drawing and Dimensions (H x W x D approx.): 10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm) 8.875” (225.4mm) 8.25” (209.5mm) 0.25” (6.4mm) - 14 - NetWaySP4 Series Installation Guide...
- Page 15 NetWaySP4WP and NetWaySP4WPN Mechanical Drawing and Dimensions (H x W x D approx.): 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm) FRONT VIEW RIGHT SIDE VIEW 11.31” (287.3mm) 3.96” (100.6mm) FRONT VIEW COVER REMOVED END VIEW 10.75” (273.1mm) 10.00”...
- Page 16 WALL MOUNTING HOLE X 4 10-32 X 0.250 BRASS INSERT 4 PLCS. 12.00” (304.8mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
