1 Introduction

The ADM-PCIE-8K5 is a high-performance reconfigurable computing card intended for Data Center applications,
featuring a Xilinx Kintex UltraScale FPGA.

1.1 Key Features

Key Features
PCIe Gen1/2/3 x1/2/4/8 capable
Half-length, low-profile x8 PCIe form factor
Two banks of DDR4 SDRAM 72 bit wide memory (ECC), 16GB (8GB per bank) default rated at 2400MT/s,
32GB option rated at 1866MT/s.
Two SFP+ sites capable of data rates up to 16.375 Gbps per channel
Two Samtec FireFly sites capable of data rates up to 16.375 Gbps per channel (65.5 Gbps per module).
Can be routed to front panel or adjacent card slots.
Optional SMA/U.FL timing input
Front Panel JTAG Access via USB port
FPGA configurable over USB/JTAG and BPI configuration flash
XCKU115-2FLVA1517E FPGA
Voltage, current, and temperature monitoring

1.2 Order Code

ADM-PCIE-8K5(m)(s)(g)(j)
See http://www.alpha-data.com/pdfs/adm-pcie-8k5.pdf for complete ordering options.
Introduction
ad-ug-1319_v1_12.pdf

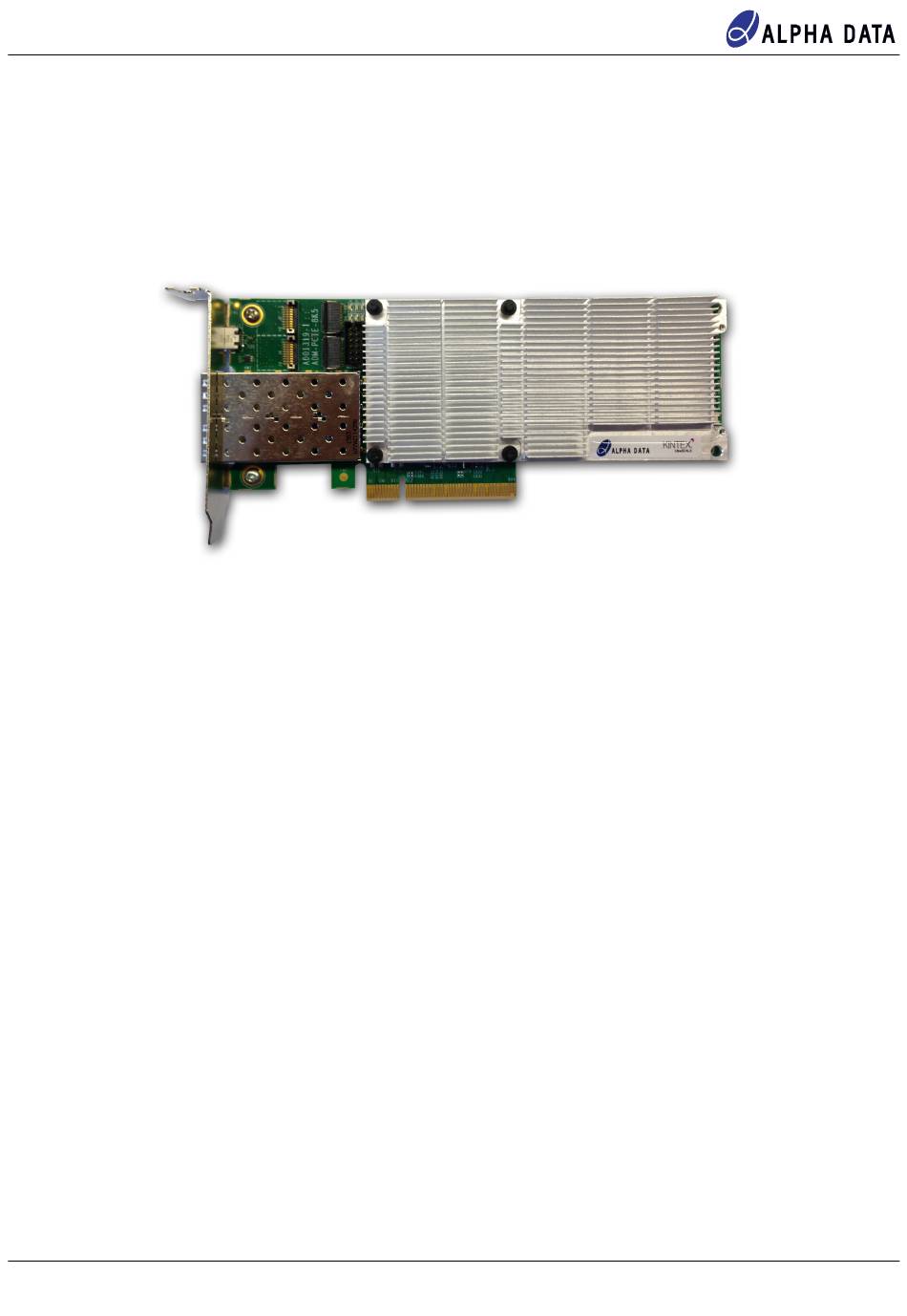

Figure 1 : ADM-PCIE-8K5 Product Photo
