1 Introduction

The ADM-PCIE-9V8 is an ultra-low latency high-performance reconfigurable computing card intended for low
latency trading applications, featuring a screened AMD Virtex UltraScale+ Plus FPGA with low latency
transceivers and four QSFP-DD cages.

1.1 Key Features

Key Features
• Supports Virtex UltraScale+ Ultra Low Latency VU2P FPGA.
• Propagation delays between FPGA nad QSFP-DD cage as low as 60ps.
• PCIe Gen3 x8 capable
• Passive thermal management configuration
• 3/4 length, full profile, x8 edge PCIe form factor
• Four QSFP-DD cages for a total of 32 channels each capable of up to 25 Gpbs operation (total 800 Gbps)
• Four 4-lane FireFly connectors for a total of 16 channels each capable of up to 25 Gpbs operation (total
400 Gbps)
• Front panel and rear edge JTAG access via USB port
• FPGA configurable over USB/JTAG and SPI configuration flash
• Voltage, current, and temperature monitoring
• 8 GPIO signals and 1 isolated timing input
• User LEDs and timing input options.

1.2 Order Code

See https://www.alpha-data.com/product/adm-pcie-9v8/ for complete ordering options.
Introduction
ad-ug-1467_v1_0.pdf

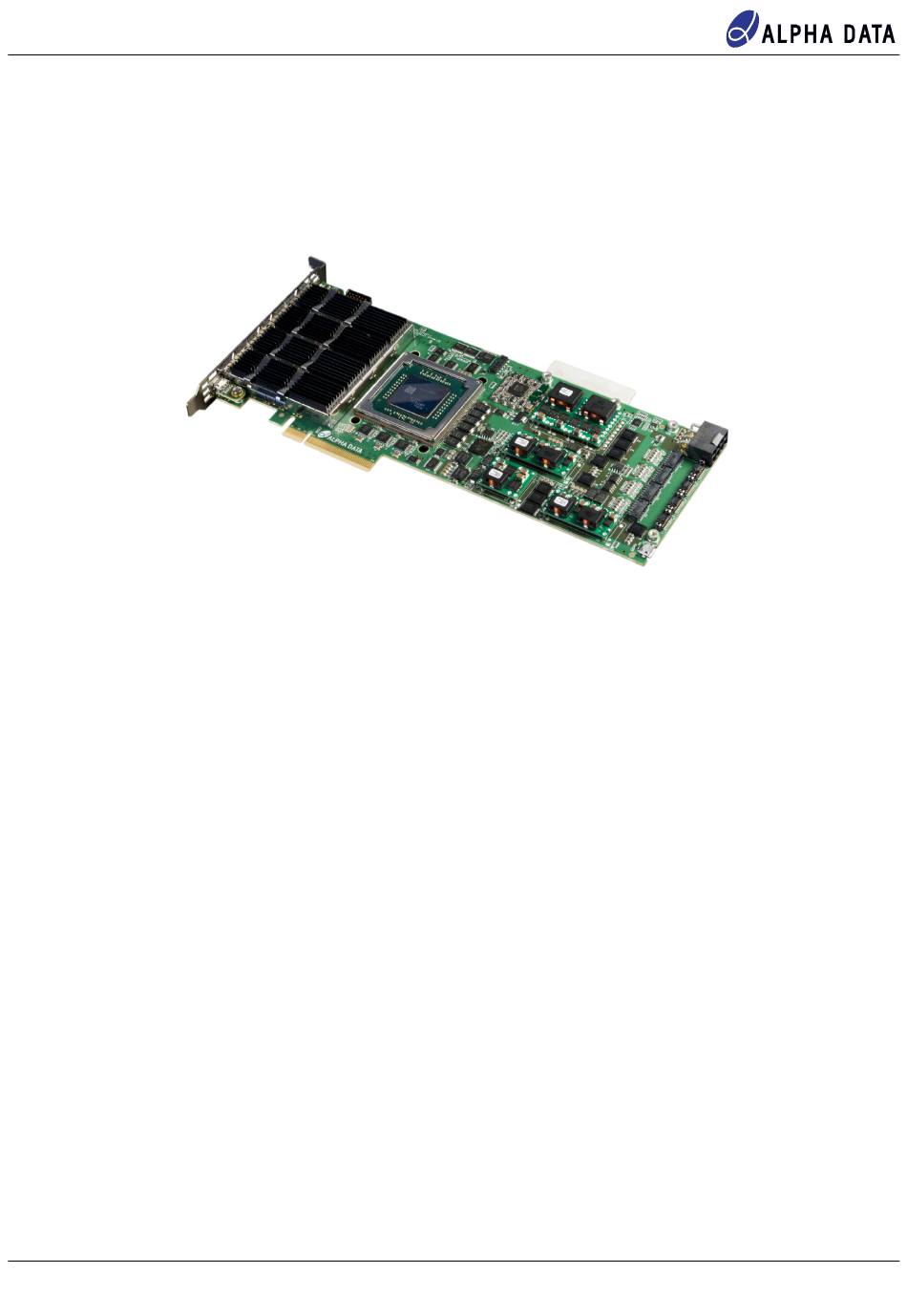

Figure 1 : ADM-PCIE-9V8 Product Photo
