Table 12 Firefly Part Numbers; Figure 11 Firefly Breakout To Front Panel - Alpha Data ADM-PCIE-8K5 User Manual

The FireFly modules are broken out to the front panel as shown in the image below. The Samtec FireFly optical
module ties the PCB to the front panel where an industry standard MPO coupler is used for attachment to
external cabling.
The FireFly sites can fit a number of standard cables. Below is a list of supported part numbers. Contact Alpha
Data or your local Samtec representative for more details.
56G/40G (4x14/10) FireFly Optical Transceiver
65.5G (4x16.375) FireFly Copper Cable
Page 14

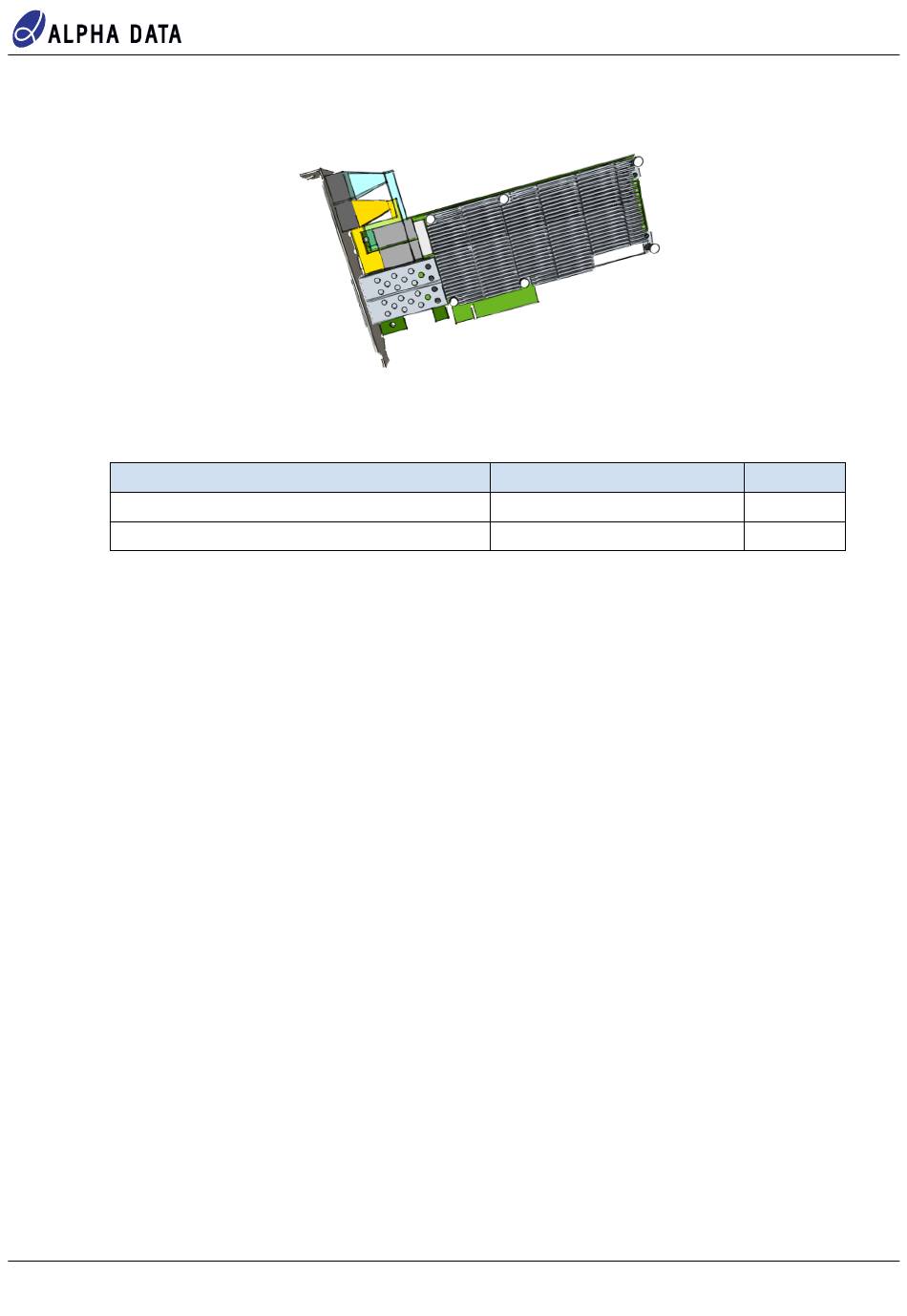

Figure 11 : FireFly Breakout to Front Panel
Description
Table 12 : FireFly Part Numbers
ADM-PCIE-8K5 User Manual
Part Number
ECUO B04 14 017 0 2 1 1 01
ECUE 08 020 T2 FF B4 1 D1
Manufacturer
Samtec
Samtec
Functional Description
