1.
Introduction
The ADM-XRC-II is a high performance PCI Mezzanine Card (PMC) format
device designed for supporting development of applications using the Virtex-II
series of FPGA's from Xilinx.

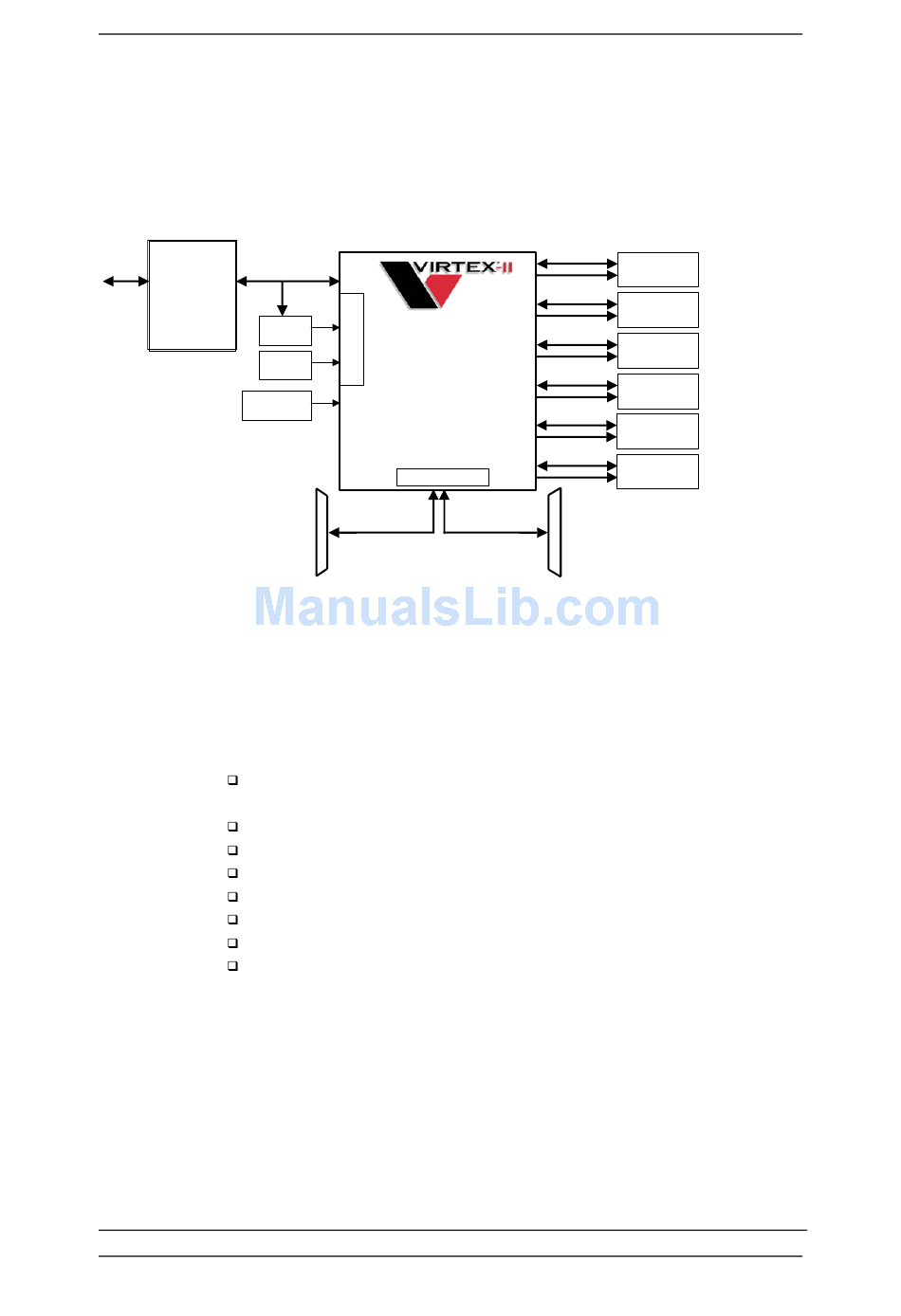

PCI
PCI
Bus
Interface
A/D
PLX 9656
Target/
Initiator
Control
(DMA)
Memory
Programmable
Clocks
Pn4 I/O
1.1.
Specifications
The ADM-XRC-II supports high performance PCI operation without the need
to integrate proprietary cores into the FPGA. A PLX PCI9656 provides a rich
set of PCI resources including two high-speed DMA.
Physically conformant to IEEE P1386 Common Mezzanine
Card standard
High performance PCI and DMA controllers
Local bus speeds of up to 66MHz
Six banks of 256k/512kx32/36 ZBT SSRAM
User clock programmable between 0.5MHz and 100MHz
User front panel adapter with up to 146 free IO signals
User rear panel PMC connector with 64 free IO signals
Supports 3.3V and 5V PCI signalling levels (VI/O)
S
e
l
e
c
t
M
Flash
a
p
XC2V3000-10000
FF1152
Select IO
ADM-XRC-II User Manual
SSRAM
256K x 32/36
SSRAM
256K x 32/36
SSRAM
256K x 32/36
SSRAM
256K x 32/46
SSRAM
256K x 32/46
SSRAM
256K x 32/46
Front Panel I/O
ADM-XRC-II User Manual
Version 1.5
Page 1
