ADM-PCIE-8K5 User Manual

3.1.2 LEDs

There are 6 LEDs on the ADM-PCIE-8K5, 3 of which are general purpose and whose meaning can be defined by
the user. The other four have fixed functions described below:
Comp.
Function
Ref.
D4 DONE
D2 USER_LED_G0
D8 USER_LED_G1
D7 USER_LED_R
D5 Status 0
D6 Status 1
Use IO Standard "LVCMOS33" when driving the user LED pins.
Functional Description
ad-ug-1319_v1_12.pdf
USR_LED_G0
D8 D7
D5
DONE
D4
FPGA is configured
User defined '0' pin AT19
User defined '0' pin AU19
User defined '0' pin AU20
USR_LED_R USER_LED_G1
D2
STAT_0 STAT_1
D6

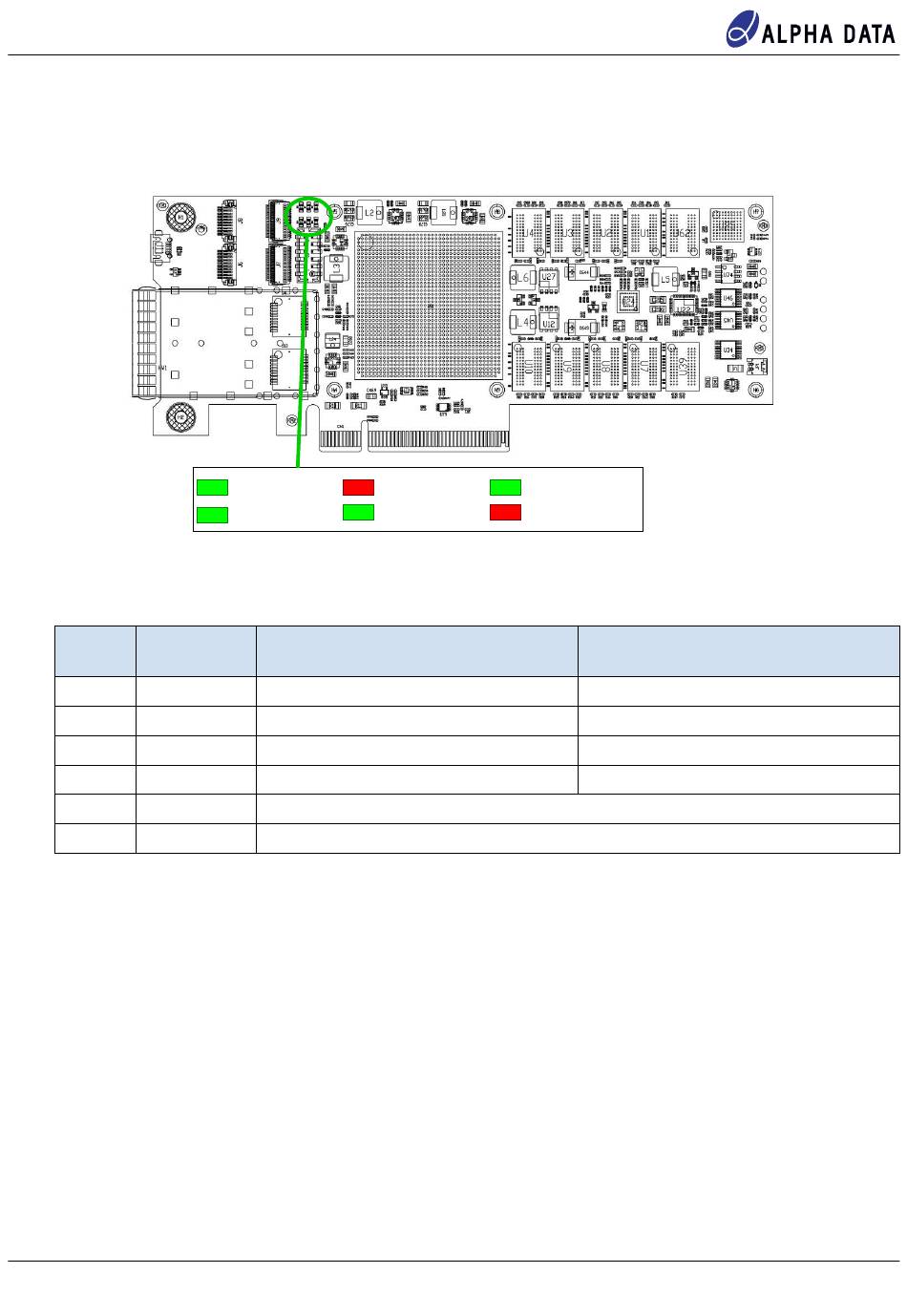

Figure 6 : LEDs
ON State
See Status LED Definitions
See Status LED Definitions
Table 5 : LED Details
OFF State
FPGA is not configured
User defined '1' pin AT19
User defined '1' pin AU19
User defined '1' pin AU20
Page 7
