1 Introduction

The ADM-PCIE-8V3 is a high-performance reconfigurable computing card intended for Data Center applications,
featuring a Xilinx Virtex UltraScale FPGA.

1.1 Key Features

Key Features
PCIe Gen1/2/3 x1/2/4/8/16 capable (x16 requires bifurcation)
Half-length, low-profile x16 PCIe form factor
Two banks of DDR4 SDRAM 72 bit wide memory (ECC), 16GB (8GB per bank) default rated at 2400MT/s,
32GB option rated at 1866MT/s.
Two QSFP28/zQSFP+ sites capable of data rates up to 28 Gbps per channel (112 Gbps per cage)
Two Samtec FireFly sites capable of data rates up to 28 Gbps per channel (112 Gbps per module). Can be
routed to front panel or adjacent card slots.
Optional SMA/U.FL timing input
Front Panel JTAG Access via USB port
FPGA configurable over USB/JTAG and BPI configuration flash
XCVU095-2FFVC1517E FPGA
Voltage, current, and temperature monitoring

1.2 Order Code

ADM-PCIE-8V3/VU095-2E (m)(q)(f)(g)
See http://www.alpha-data.com/pdfs/adm-pcie-8v3.pdf for complete ordering options.
Introduction
ad-ug-1308_v1_9.pdf

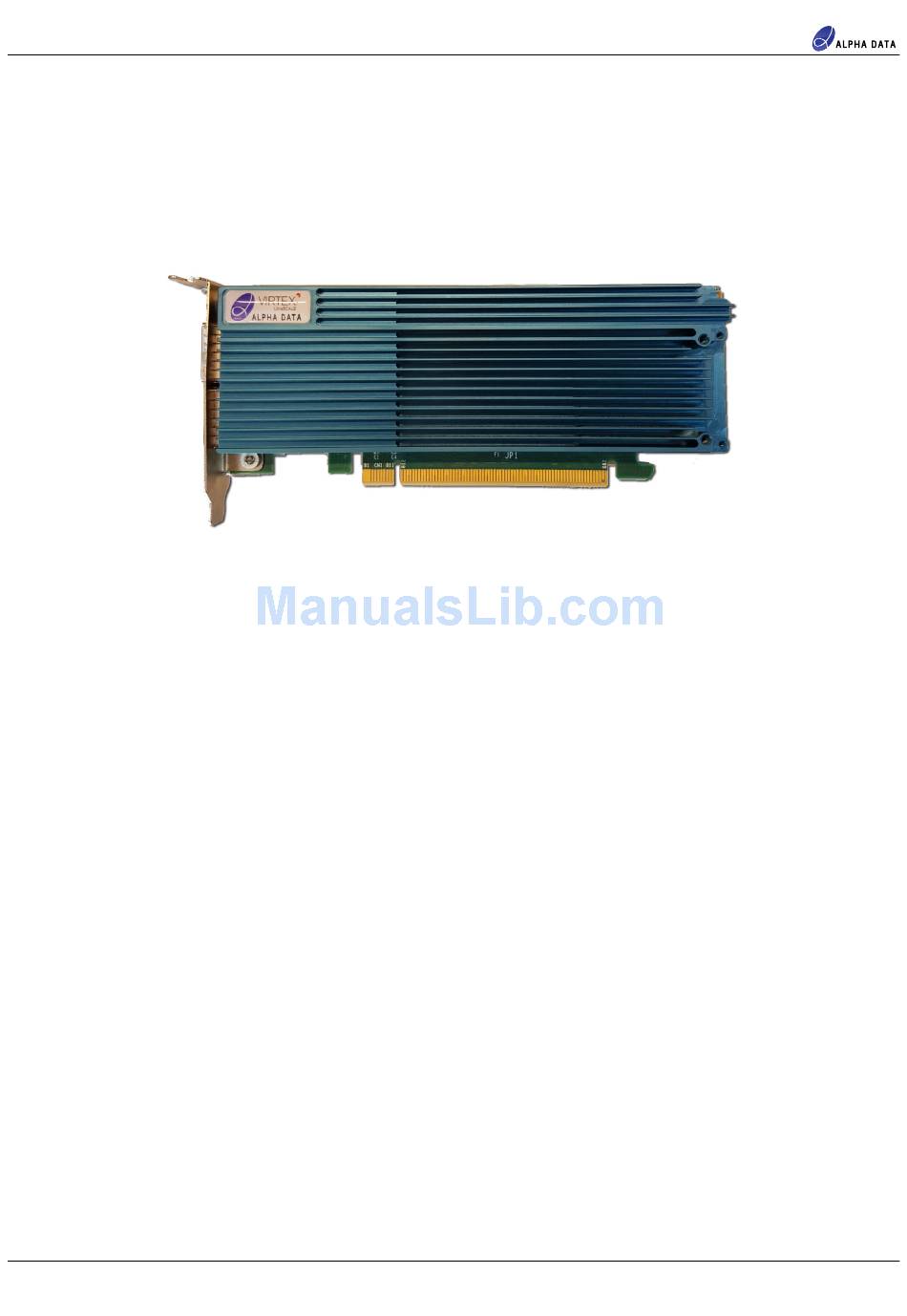

Figure 1 : ADM-PCIE-8V3 Product Photo
Page 1
