Charging information

Depending of the the connector used, the HMI screen can show different process
information. The information is almost the same except for few details.

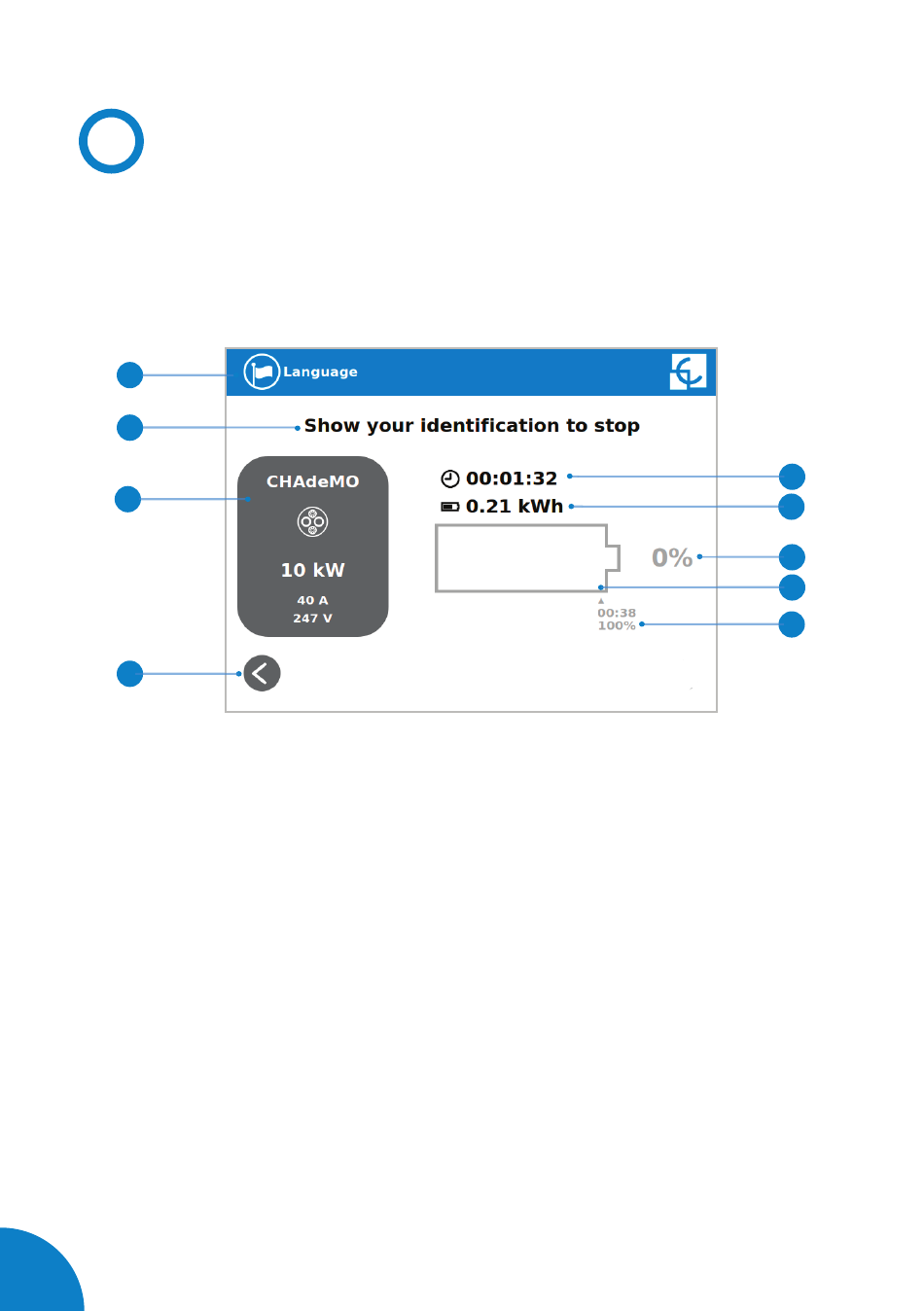

The following images show the basic charging process information.
1
2
3
4
1- Language button: pressing over this button it is possible to change the HMI
language.
2- Additional information: current status, errors, battery status, etc.
3- Connector information: type and identificator of connector, power of charge, etc.
4- House touch button: it goes back to the "identification screen".
5- Charge time with status bar: charging time elapsed so far.
6- Energy charged: energy supplied to the vehicle so far.
7- Battery SOC: It indicates the current battery state of charge.
8- Process indicator: at first moment it is red, as the vehicle is charging it will
change to orange, changing after 75% of battery charged to green.
9- Remaining time until 100 %: remaining time until 100 % of the SOC.
