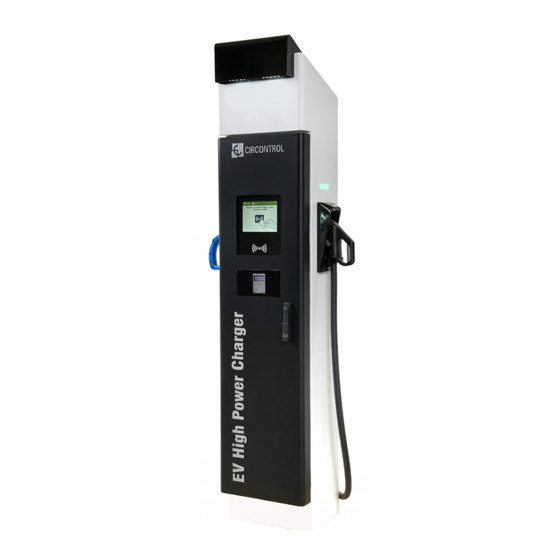

Circontrol Raption 150 Series Service Manual

Hide thumbs Also See for Raption 150 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Raption 150
Series
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raption 150 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Circontrol Raption 150 Series

Summary of Contents for Circontrol Raption 150 Series

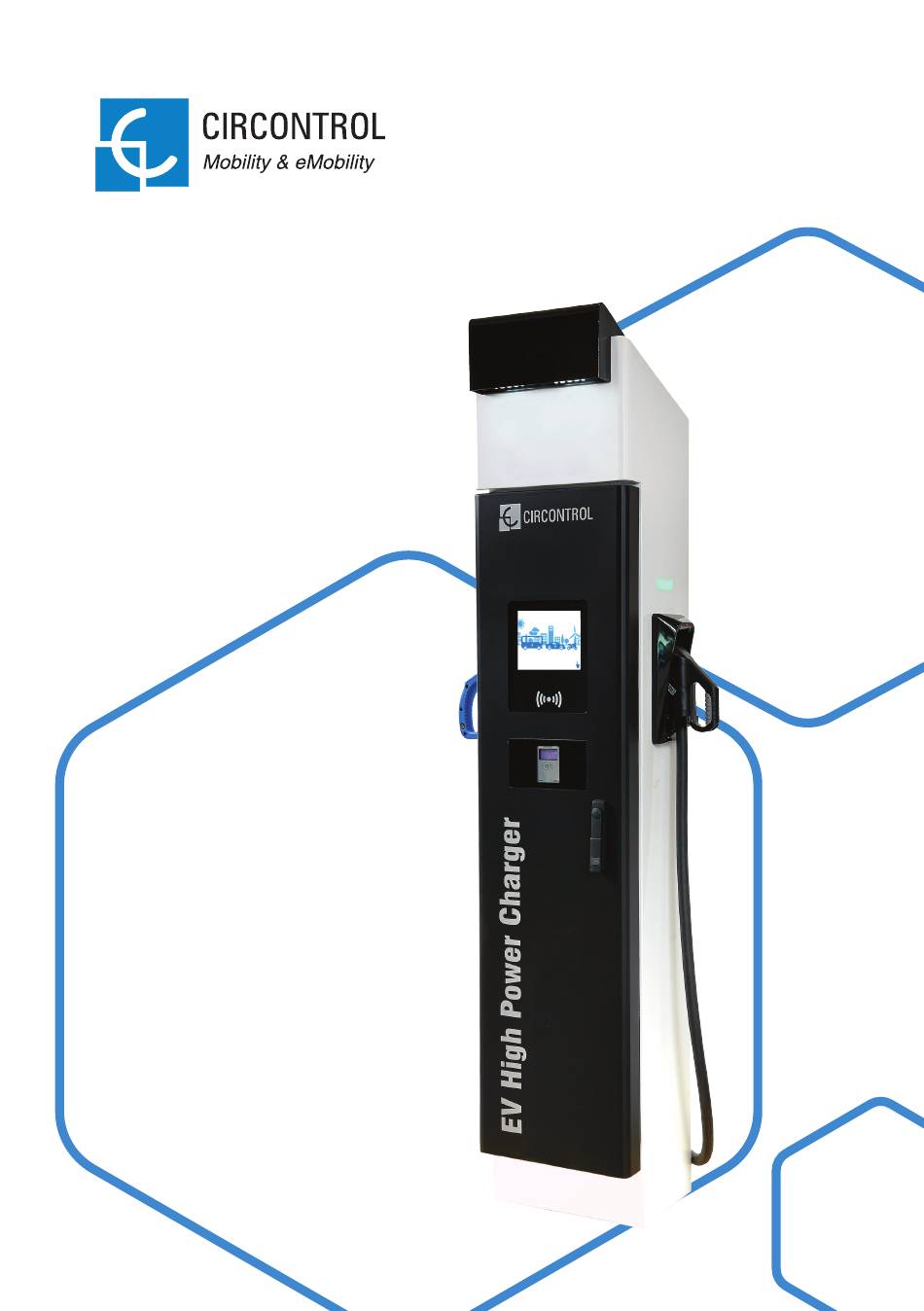

  • Page 1 Raption 150 Series Service Manual...
  • Page 3 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 5: Table Of Contents

    Contents 1 — So, Hello! A - Important safety instructions B - Work in a safe environment C - Personal Protective Equipment (PPE) D - Recommended tools 2 — Features A - Main features B - Dimensions C - Components overview 3 —...
  • Page 6 Raption 150 Service Manual 4 — Protection devices A - Disconnector B - RCD C - MCCBs D - MCBs E - RCBOs F - Backflow diode and Clixon G - Transient surge protector H - Isolation protection device 5 — Other components A - Heater system B - Ventilation system C - RFID reader...
  • Page 7 7 — Troubleshooting & Errors A - Troubleshooting introduction B - Log files C - Decoding the error D - Error code in remote E - Communications errors F - OCPP errors G - Power modules errors 8 — Maintenance 9 —...
  • Page 8 It is mandatory to follow the basic security information supplied in this manual to ensure safe and proper installation. Failure to follow safety instructions may involve personal injury, equipment damage and danger of death. CIRCONTROL is not responsible for events arising from such breach. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT...

  • Page 9: So, Hello

    • Use only Circontrol supplied spare parts. • Never handle electrical equipment when hands, feet, or body are wet or perspiring, or when standing on a wet...

  • Page 10: B - Work In A Safe Environment

    Raption 150 Service Manual Work in a safe environment It is recommended to be very cautious and work safely to control all potential electrical hazards. So, the safety rules shown below classify the work to be done depeding on the present electrical risk, that helps to control risks of injury or death from workplace hazards.
  • Page 11 Work without voltage It is essential to carry out the following steps in order to successfully perform the required tests: Disconnect the installation from its source. Check for absence of voltage. Test preparation by placing all the necessary measuring instruments and closing the doors totally or partially (as much as possible).

  • Page 12: C Personal Protective Equipment (Ppe)

    Raption 150 Service Manual Personal Protective Equipment (PPE) It is mandatory that all technical employees wear the following Personal Protective Equipment (PPE). It must be used for any electrical task such as the described above. INSULATING SAFETY SHOES INSULATING GLOVES Class 0: 1000V Dielectric boots recommended Class 0: 1000V AC/1500V DC...

  • Page 13: D Recommended Tools

    Recommended tools LAPTOP SWITCH MULTIMETER ALLEN TOOLS MULTI-TOOL TORX-TOOLS USB-RS485 SCREW DRIVERS ETHERNET CABLE RATCHET WRENCH...

  • Page 14: Features

    Raption 150 Service Manual Main features D I S P E N S E R 1 — Cover 2 — Courtesy Lights 3 — Screen 4 — CCS/CHA plug 5 — Emergency button 6 — RFID Reader 7 — Locking handle 8 —...
  • Page 15 Features P O W E R U N I T 1- Cover 2- Unit air inlet 3- Locking 4- Locking handle 5- Rear door handle 6- Rear panel 7- Eyebolts 8- Unit air 9- Front door 10-Front panel outlet...

  • Page 16: B Dimensions

    Raption 150 Service Manual Dimensions D I S P E N S E R • Units specified in millimeters:...
  • Page 17 P O W E R U N I T • Units specified in millimeters: 1000...

  • Page 18: C Components Overview

    Raption 150 Service Manual Components Overview D I S P E N S E R Dispenser can be divided in three diferent parts. The opening door, the control part and the connection and protection part. Dispenser door Control part Connection and proteccion part...
  • Page 19 P O W E R U N I T Power Unit has two doors, in the front and in the rear side. When it is opened from the front, power input supply and protections can be found. When opening from the rear side, there is the control part and the output connectors.
  • Page 20 Raption 150 Service Manual 1 — D I S P E N S E R D O O R 1 — Teltonika 2 — HMI touch 3 — Contactless RUT240 screen terminal 4 — Switch 5P 5 — Connector 6 — RFID Reader terminals...
  • Page 21 2 — C O N T R O L PA R T 1 — Output 2 — Output 3 — Isolation 4 — Lock 5 — Mode 4 contactors signal filter protector system for board for for CCS for CCS CCS cable 6 —...
  • Page 22 Raption 150 Service Manual 3 — C O N N E C T I O N A N D P R O T E C T I O N PA R T 1 — Power supply 2 — Connectors 3 — EMI filter 4 —...
  • Page 23 4 — P O W E R M O D U L E S B L O C K A A N D B 1- Power module 12.5kW (A8.1-A8.6) 2- Power module 12.5kW (A9.1-A9.6)
  • Page 24 Raption 150 Service Manual 5 — P U P O W E R I N P U T S U P P LY 1 — RCBO 2 — Service Schuko 3 — Overvoltage (Q05.3) protection 4 — Busbars 5 — Fuses (F05.1, 6 —...
  • Page 25 6 — R E L A Y S B OA R D S 1 — Output 2 — Supply and 3 — Input control...
  • Page 26 Raption 150 Service Manual 7 — P O W E R M O D U L E S P R O T E C T I O N 1 — RCD protection 2 — Current 3 — MCCB (Q06.1) (TO6.4) transformers (T06.3) 4 —...
  • Page 27 8 — C O N T R O L S I D E 1 — EMI Filter 2 — MID Meter for 3 — MID Meter 4 — UPS 5 — Nodes Power Block A for Power board Block B 6 —...
  • Page 28 Raption 150 Service Manual 9 — D C O U T P U T 1 — Output contactors 2 — Output Fuse CHA 3 — Backflow diode A - CHA (TO6.4) (T06.3) (Q06.1) 4 — Output contactors 5 — Output contactors 6 —...
  • Page 29 1 0 — O V E R V I E W B L O C K D I AG R A M Common:...
  • Page 30 Raption 150 Service Manual 1 1 — P O W E R U N I T B L O C K D I AG R A M...
  • Page 31 1 2 — D I S P E N S E R B L O C K D I AG R A M Service terminal refers to the laptop of a technician who is connected in the network.
  • Page 32 Raption 150 Service Manual PC Screen (HMI) The PC screen (HMI) and the RFID reader are located at the right door. Normally, at the RJ45 port it is connected the Ethernet cable coming from the router when it is installed. However, it is also here where the Service PC should be connected when Charging Station has to be configured.

  • Page 33: Control Devices

    Control devices Electrical scheme Screen has two RS485 connectors. In one of them there is the RFID reader and the other there is a bus of communicactions with many devices. RS485 Connector 1: RS485 Connector 2: • Distribuitor board • RFID Reader...
  • Page 34 Raption 150 Service Manual Raption 150 Service Manual Update Screen can be updated from the Setup Webpage. Find the details of the procedure in the User Manual. Firmware file can be obtained from the Expert Area.

  • Page 35: B Mode 4 Board

    Mode 4 Board Mode 4 board is controlling the communications of the Charging Station with the Electric vehicle. Also, most of the alarms like the emergency button, isolation protectors or clixon are managed by this board. Raption 150 mounts two Mode 4 boards. Every one manages the communications with the EV for each connector independently.
  • Page 36 Raption 150 Service Manual Raption 150 Service Manual Enable/disable power modules output Outputs Bender test, lock CCS, precharge, heater. Outputs for diode fan, modules. RS485-1-M communications with isolation detector device RS485-2-S communications with the screen CAN 1 communications with CHAdeMO cable CAN 2 communications with Expansion board Input thermostats from CCS cable Relay output CHA cable and CCS contactor...
  • Page 37 Electrical scheme Update Mode 4 board is updated automatically by the Screen. So, when Screen is updated, both components are getting a new firmware version, each one its corresponding. Check in the previous point, the procedure to update the Screen and find the necessary files in the Expert Area.

  • Page 38: Cccs Board

    Raption 150 Service Manual Raption 150 Service Manual CCS Board This board is in charge of the communications of the CCS connector. It works as a bridge between the EV and the Mode 4, translating the communications from PLC to CAN protocol. This CCS board is integrated in the Mode 4 control board.
  • Page 39 Electrical scheme Update There is a specific guide explaining the procedure to update this board. It can be updated manually following the steps described in the guide "How to update CCS board IoTecha M2ievse" which can be found in the Expert Area. Additionally, remote upgrade via Screen firmware update, same as the Mode 4 board, is expected to be implemented soon.

  • Page 40: D Distributor Board

    Raption 150 Service Manual Raption 150 Service Manual Distributor board This board works as a RJ45 centralizer of the internal communications of the charging station. There is one in the Dispenser and another one in the Power Unit. There must be a cable installed between them both during the commissioning of the Charging Station.

  • Page 41: E Supervisor Board

    Supervisor board Supervisor board is located in the Power Unit. It works as a communications centralizer of most of the components of the Power Unit via RS485 and CAN as well. It is connected in serial with the Nodes boards and manages them. Supervisor board also works as a centralizer of alarms of the Power Unit such as Tamper, Clixon or Overvoltage protection (when included).

  • Page 42: F Nodes Boards

    Raption 150 Service Manual Raption 150 Service Manual Nodes boards There are two Nodes boards. These boards are identically than Supervisors board in terms of hardware, however their functions are different. Each one of them controls one of the power blocks and can close the output contactors.
  • Page 43 Electrical scheme Nodes board A: Nodes board B:...

  • Page 44: G Relays Boards

    Raption 150 Service Manual Raption 150 Service Manual Relays boards Relays boards are managed by the Nodes boards. There are 4 boards of this type. Their function is to activate/deactivate the supply of the power modules. So each board can operate on three power modules. When new Charge Transaction starts these boards will close or remain open depending on the demand of the EV charging, so only will be activated the necessary modules to arrive to the target power.
  • Page 45 Electrical scheme...
  • Page 46 Raption 150 Service Manual Raption 150 Service Manual Disconnector Power Unit Main disconnector, located in the bottom of the Power Unit. This device isolates the Charging Station from the grid.

  • Page 47: Protection Devices

    Protection devices Dispenser Dispenser installs two disconnectors, one for each DC circuit.

  • Page 48: Brcd

    Raption 150 Service Manual Raption 150 Service Manual Composed by a compact system that includes a current transformer and differential relay that activates when current leakage is detected. There are two of them installed, one for each power block circuit (before the AC/ DC converters).

  • Page 49: Cmccbs

    MCCBs There are two MCCBs. Each one protects one power block. These devices receive the signal of the RCD and will trigger if there is a current leakage. When this occurs, the switch lever goes into the mid position. To rearm the device, make sure that the leakage cause is fixed/resolved and recover the error in the RCD.

  • Page 50: Dmcbs

    Raption 150 Service Manual Raption 150 Service Manual MCBs There are three MCCBs in the Charging Station, all of them located in the Dispenser. From the left to the right: • Q2-05: for supply of internal components. • Q2-06: for the heater. •...

  • Page 51: Ercbos

    RCBOs There are four RCBOs in the Raption, all of them located in the Power Unit. From the left to the right: • Q05-1: for ventilation/heating. • Q05-2: for the heater. • Q05-3: for service schuko. • Q12-1: for Dispenser's supply..

  • Page 52: F Backflow Diode And Clixon

    Raption 150 Service Manual Raption 150 Service Manual Backflow diode and Clixon It is installed when there is a CHAdeMO connector mounted in the Charging Station. Backflow diode protects the internal components of the Raption from any current that could come from the oposite side, from the EV to the Charging Station. This may occur in case there is a problem balancing the voltages, either on the EV or in the Charging Station side.
  • Page 53 Electrical scheme Backflow diode is located just after the power modules, when positive and negative wire are collected, and before the DC cables fo to the Dispenser. Clixon is located next to it and connected to the Supervisor board, sending an alarm if there is a temperature trouble.

  • Page 54: G Transient Surge Protector

    Raption 150 Service Manual Transient surge protector The Charging Station can be equipped with four pole transient surge protector as an opcional protection. It has four interchangeable cartridges based on varistor. Also, it is equipped with a visual indicator and a remote indicator. Remote indicator is not integrated, so make sure visually that the status of the cartridges is correct during maintenance tasks.

  • Page 55: H Isolation Protection Device

    Isolation protection device This device monitors the insulation of the Charging Station for electric vehicles for DC voltage between 0 and 1100Vdc.(CCS) or 0 and 500Vdc (CHA). In Raption 150, there are two isolation protectors, one for each connector. They are measuring constantly the resistance between positive wire to the ground and negative wire to the ground.
  • Page 56 RS485 communications. Check the Annexes to find the configuration steps in case service staff has to do the settings manually. When device is configured via software, ask support@circontrol.com to get the necessary files. Electrical scheme Isolation protector device for CCS:...
  • Page 57 Isolation protector device for CHA:: Additional function Bender does not only work as an Isolation Protector. It has a secondary function. It is measuring the Output Voltage in DC for both connectors and provides these values to the controller device, Mode 4 board.
  • Page 58 Raption 150 Service Manual Raption 150 Service Manual Heater system There are two heaters installed in the Charging Station, one in the Power Unit and another one in the Dispenser. In the Dispenser side, the Mode 4 boards manage the heater. These boards include a temperature sensor to measure the exact temperature inside of this cabinet.

  • Page 59: Other Components

    Other components Ventilation system Raption 150 is equipped with some fans in order to keep a safe temperature through different sections of it. There are 5 fans in the Charging Station: 1 — 2 in the Power Block A. 2 — 2 in the Power Block B. 3 —...

  • Page 60: Crfid Reader

    Raption 150 Service Manual RFID reader The RFID reader is a device that can send and receive radio signals with RFID tags to identify the end-user without physical contact between the Charging Station and the card. RS-485 Communications Operation LEDs RFID reader has a LED status indicator.

  • Page 61: Dac Meter

    AC meter There are 2 three-phase electrical energy meters, one for each power block. Both of them measure current and voltage that is supplied to the power modules. Electrical scheme...

  • Page 62: E Power Supplies

    Raption 150 Service Manual Power supplies There is a power supply of 12Vdc and another one of 24Vdc supplying most of the electronic components: fans, boards, screen, router, etc. Power supply 24Vdc Power supply 12Vdc Dispenser and Power Unit are both equipped with these power supplies, so there are 4 of them in total.

  • Page 63: Fups

    UPS provides enough supply to the control boards to perform a controlled stop of an on-going Charging Transaction, in case there is a blackout or the RCBO of the main supply triggers. There are two of these units in the Charging Station. One is located in the Power Unit while the other one is in the Dispenser.
  • Page 64 Raption 150 Service Manual Raption 150 Service Manual Output Fuses In the output side of the Power Unit, there are installed two fuses. The purpose of those fuses is to keep the equipment protected, avoiding a possible shortcircuit damage.
  • Page 65 Electrical scheme CHAdeMO side, Fuse + Clixon. CCS side, Fuse:...

  • Page 66: H Output Contactors

    Raption 150 Service Manual Raption 150 Service Manual Output Contactors Output contactors are located in the Power Unit. There are three groups of contactors.When contactors A are closed, Power Block A delivers energy to the Connector A. When contactors B are closed, Power Block B delivers energy to the Connector B.
  • Page 67 Electrical scheme...

  • Page 68: I Teltonika Rut

    Raption 150 Service Manual Teltonika RUT 240 Raption includes a router to allow the Charging Station to communicate and remote access. This device is used normally to establish communications with a CSMS so Raption can be remotely managed. It also allows remote access, which is very useful for maintenance, remote diagnosis and eventually, to adjust the settings of the Charging Station, such as tariffs or language.
  • Page 70 Raption 150 Service Manual Raption 150 Service Manual RFID Reader - Legic Alternative RFID reader Legic Advant / Legic Prime. This model is compliant of a higher number of ISO certifications. • LEGIC Advant • LEGIC Prime • ISO14443 A+B compatible to part 4: MIFARE DESFireEV13), MIFARE Plus S, X3), MIFARE Pro X3), MIFARE SmartMX3), SLE66Rxx (my-d move)3), SLE44R351), PayPass1), NTAG2xx4), •...

  • Page 71: Other Optional Components

    Other optional components Electrical scheme This RFID reader has two particular points. • It is supplied with 5Vdc, so it is necessary a power supply device converting from 24Vdc to 5Vdc. • It communicates via RS232 protocol.It is necessary to convert this signal to a RS485, so there is installed a converter in between.

  • Page 72: B Payment Terminal

    Raption 150 Service Manual Raption 150 Service Manual Payment terminal Raption can be equipped with a terminal payment system to allow the customers the payment by credit card. The payment terminal allows payment without a membership model and can operate with or without backoffice platform. When included, the settings are performed from the setup webpage, where the customer can configure some parameters.
  • Page 74 Raption 150 Service Manual Raption 150 Service Manual Troubleshooting introduction The Charging Station can report about different sort of errors, coming from different parts or devices. When the ‘Error screen’ appears, the ‘Information’ button has to be pressed in order to see the error message, as the one seen below, which needs to be decoded to understand what is happening to the Charging Station:...

  • Page 75: Troubleshooting & Errors

    Troubleshooting & Errors This section provides the necessary information to decode, indentify and understand the errors. However, eventually, Circontrol staff help may be needed support@circontrol.com to solve the issues. In that case, please, contact to get help. When contacting Circontrol, it is important to provide some background information regarding the issue.
  • Page 76 Stopping process. • Permanent error. 3 — Does the error appear with a specific car model? Circontrol performs interoperability tests periodically with the new brand cars of the market in order to ensure a correct compatibility between charging stations and EVs.
  • Page 77 Service staff can perform some basic checks on those situations where they don’t have the tools to decode the error or access to the EVSE. These checks can provide helpful information and eventually fix the issue. BASIC CHECKS • Verify that no MCBs have been trigered. •...

  • Page 78: B Log Files

    Raption 150 Service Manual Raption 150 Service Manual Log files Log files provide useful information about the Charging Station. All the steps it goes trough, the current status, detail about the charging session, error code, etc. All this information will be helpful when trying to locate and identify an error. However, there are two very important points to take into account: •...
  • Page 79 http://”IP ADDRESS”/services/cpi/record.xml: Then, to access to a specific register, for example nº2: http://”IP ADDRESS”/services/cpi/record.xml?id=2...

  • Page 80: C Decoding The Error

    Raption 150 Service Manual Decoding the error There is a specific order which has to be followed to decode the error. First step is to identify the parts of the error. Engine errors DC errors As indicated in the picture above there are ‘Engine errors’ and also ‘DC errors’. Errors from AC side are normally easier to identify.
  • Page 81 ENGINE ERRORS This part is divided in three different levels. Every level has its own code and a table for consulting the meaning of the code. The correct order to check these levels is: Socket: One plug may have more than one socket. Error can affect one socket and the plug still being available.
  • Page 82 Raption 150 Service Manual Raption 150 Service Manual C H A R G E P O I N T L E V E L Error Hexadecimal Decimal Description No error Invalid Configuration READER Reader Error. DISPLAY Display Error. TAMPER Tamper Error. TILT 0x10 Charge point is tilted.
  • Page 83 P L U G L E V E L Error Hexadecimal Decimal Description No error. Invalid Configuration. Charge Point error. Plug is inoperative. MASTER Check Charge point error affected. USER_INTERFACE User Interface error. LOCK Lock error. SUPPLY 0x10 Power supply dropped. 0X20 RCD tripped CONTACTOR...
  • Page 84 Raption 150 Service Manual Raption 150 Service Manual S O C K E T L E V E L Error Hexadecimal Decimal Description No error. Invalid Configuration. Plug error. Socket is inoperative. Check MASTER plug error affected. USER_INTERFACE User Interface error. LOCK Lock error.
  • Page 85 DC ERRORS This part has to be checked only after reviewing the Engine section. In some cases, Engine section does not provide enough information, describes a general error or is not conclusive. These situations require to continue investigating using the DC error. DC errors section is also divided in subparts.
  • Page 86 Raption 150 Service Manual D E C O D I N G T O O L To understand this DC error section, it is required a decoding tool. Circontrol support team, support@circontrol.com can provide an user profile if necessary. Open a web browser on the service PC and enter the following link and next image will appear.
  • Page 87 On the left part, it is displayed a menu in which you can choose according the topology of the error (if the error was displayed in the touch screen or through OCPP protocol).: TO U C H S C R E E N Value Description Charger Model...
  • Page 88 Raption 150 Service Manual At the time ‘Error subsystem’ is selected, it appears some extra gaps below to include more information of the error. Depending on the option chosen, the extra gaps to appear could be different. When an error is introduced, it appears a short description of the error. In case of the extra gaps mentioned above, in addition to the description of the error, if a click is pressed on it, extra boxes appear with possible causes of the error introduced and some advice to solve them.
  • Page 89 O C P P Value Description Error origin Type and responsible of error Module Part or component that causes the failure Error type Concrete description of failure Example of an error appeared.

  • Page 90: D Error Code In Remote

    Raption 150 Service Manual Raption 150 Service Manual Error code in remote As it has been shown at the beginning of this chapter, error can be consulted directly from the screen, by pressing the connector in fault status and the ‘Information’...
  • Page 91 With a few line breaks it can be turned into a more familiar look: Nov 8 09:39:18 raption user.info pss[306]: ------------------- VECTOR OF ERROR FLAGS OBJECTS ------------------- Error Flags Object -> Module Type: 31, Name: CCS2 Error flags: 0000 0000 0000 0000 0000 0000 0000 0020 Historical error flags: 0000 0000 0000 0000 0000 0000 0000 0120 Predecessor errors: 0 - 0 Status message flags: 0000 0000 0000 0000 0000 0001 0000 0001...

  • Page 92: E - Communications Errors

    Raption 150 Service Manual Raption 150 Service Manual Communication errors When an internal device cannot reach the main controller of the Charging Station, the Screen, a communications error will be generated. These types of errors can be generated by many reasons: •...

  • Page 93: Focpp Errors

    Can not get charge device name The internal application of the Charging Station is corrupted/lost or is not installed. It requires to upload a file provided by Circontrol support team within Configuration Update section on web page of the Charging Station.
  • Page 94 Raption 150 Service Manual Notifying Boot - 200 CS should check if charger is added in their side. Check Charging Station ID whithin OCPP configuration on CP side. http://ip_ address:8080/html/setup.html Notifying Boot - -1 There is some kind of filter on the network related with the size of the messages sent from the charger, maybe in the simcard provider side or in the CS.
  • Page 95 SSL/TLS error HTTPS URL’s requires a certificate that must to be uploaded to the OCPP integrations webpage. The Certificate uploaded is not correct. Time and Date are not correctly synchronised Getting valid public ID timeout Raption / eVolve Master: • The password of the modem (f.e.
  • Page 96 Raption 150 Service Manual No Data, get host by name failed in tcp_connect() Hostname cannot be resolved in Charging Station side:http://ip_address:8080/ html/setup.html Raption / eVolve Master: • Check ‘Enable DNS protection’ parameter in Teltonika router. • Check if DHCP=ON whithin Network section on web page from CP. Reboot required.
  • Page 97 OCPP 1.6 CS Connection FAILED. Fail reason: Underlying Transport Error Hostname cannot be resolved in Charging Station side:http://ip_address:8080/ html/setup.html Host URL introduced is not correct. Check it on OCPP configuration. Raption / eVolve Master: • Check 'Enable DNS protection' parameter in Teltonika router. •...
  • Page 98 Raption 150 Service Manual Raption 150 Service Manual CS Connection FAILED. Fail reason: Invalid HTTP status Charger reaches the CS, but it has rejected the Charging Station ID configured. • CS should check if charger is added in their side. •...

  • Page 99: G - Power Modules Errors

    Power modules errors LED lights placed in rectifier: 1 — LED named “OK”: Green/Yellow bi-color 2 — LED named “RFA”: Meaning of colours in relation with service: Colour System Status Green Everything ok No diagnostic or user interaction required Yellow Check following table for further diagnosis Replace rectifier Meaning of colours in relation with LED...
  • Page 100 Raption 150 Service Manual Raption 150 Service Manual The unit needs regular maintenance and part inspection during its life. Before starting with the maintenance or with the part replacement procedure, it is very important to disconnect Charging Station from any power source. Pay attention if you see the following symbols to prevent electrical hazards.

  • Page 101: Maintenance

    Maintenance The maintenance plan is based in years from start-up, hours of charging or standby, and cycles of charging. Depending on the group of components, it is necessary to apply a specific maintenance period. Check periods in the next table: Years from start-up* 6 months / 1 year /...
  • Page 102 Raption 150 Service Manual In order to update easily the content of the Annexes from this manual, it has been created the next list. All this material is available in Circontrol’s Expert Area where can be downloaded by being registered.

  • Page 103: Annexes

    Annexes Find all the documents from the List of Annexes in the Expert Area. If you have any trouble, ask support@circontrol.com for the requested file or document. https://expertarea.circontrol.com/...
  • Page 104 Raption 150 Service Manual GENERAL SPECIFICATIONS CE / Combo-2 (DIN 70121; ISO15118) Compliance IEC 61851-1; IEC 61851-23 CHAdeMO compatible Enclosure rating IP54 / IK10 Enclosure material Stainless steel Operating temperature -10 ºC to + 50 ºC Ambient temperature storage - 20 ºC to + 60 ºC Operating humidity 5 % to 95 % Non-condensing Rated diversity factor...

  • Page 105: Technical Data

    Technical Data POWER UNIT AC power supply 3P + N + PE AC Voltage 400 V AC +/- 10% Maximum AC input current 237 A / 160 A* Required power supply capacity 163 KVA / 110 kVA* Power Factor (pu) ›...
  • Page 106 Raption 150 Service Manual Models Specifications Raption 150 Models CCS250 CCS200 CHA125 CCS250 CHA200 CCS250 CCS250 Maximum output power CCS:150 kW CCS:150 kW CCS:150 kW CCS:150 kW CHA:50 kW CHA:50 kW CCS:150 kW Output voltage range CCS:100-920V CCS:100-920V CCS:100-920V CCS:100-920V CHA:100-500V CHA:100-500V CCS:100-920V...
  • Page 108 Raption 150 Service Manual Raption 150 Service Manual...

  • Page 109: Need Help

    Need help? In case of any query or need further information, please contact our Support Department support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941...
  • Page 110 CIRCONTROL Raption 150 Service MANUAL A comprehensive guide on how to service your Raption 150 Charging Station. V3.0, August edition 2022 CIRCONTROL S.A. - ALL RIGHTS RESERVED R540...

This manual is also suitable for:

Raption 150Raption 150 lite
