Modem configuration

1 — M O D E M O V E R V I E W
The 4G modem installed from factory in the Charge Point is: Teltonika RUT240
This device allows to the Charge Point connects over 4G networks to remotely view
or manage the Charge Point status. RUT240 is part of the RUT2xx series of compact
mobile routers with high speed wireless and Ethernet connections.
(*) WAN Ethernet port is set up as a LAN Ethernet port in order not to disconnect
modem from Charge Point during service issues.

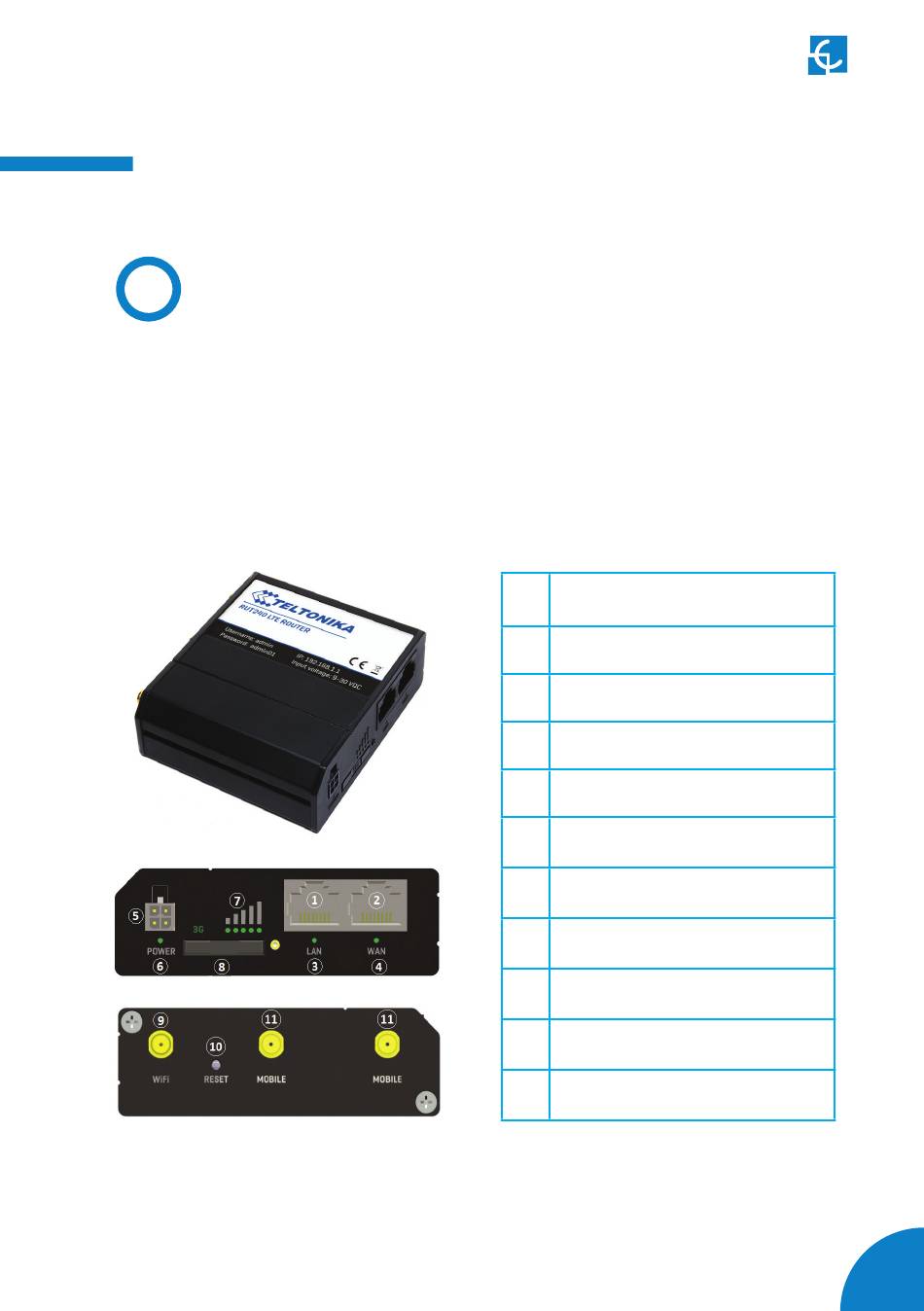

1 LAN Ethernet port
2 WAN Ethernet port*
3 LAN Led indicator
4 WAN Led indicator
5 Power connector
6 Power LED
7 Signal strength indication LEDs
8 SIM card holder
9 WiFi antenna connector
10 Reset button
11 LTE antenna connectors
