Raption Series User Manual

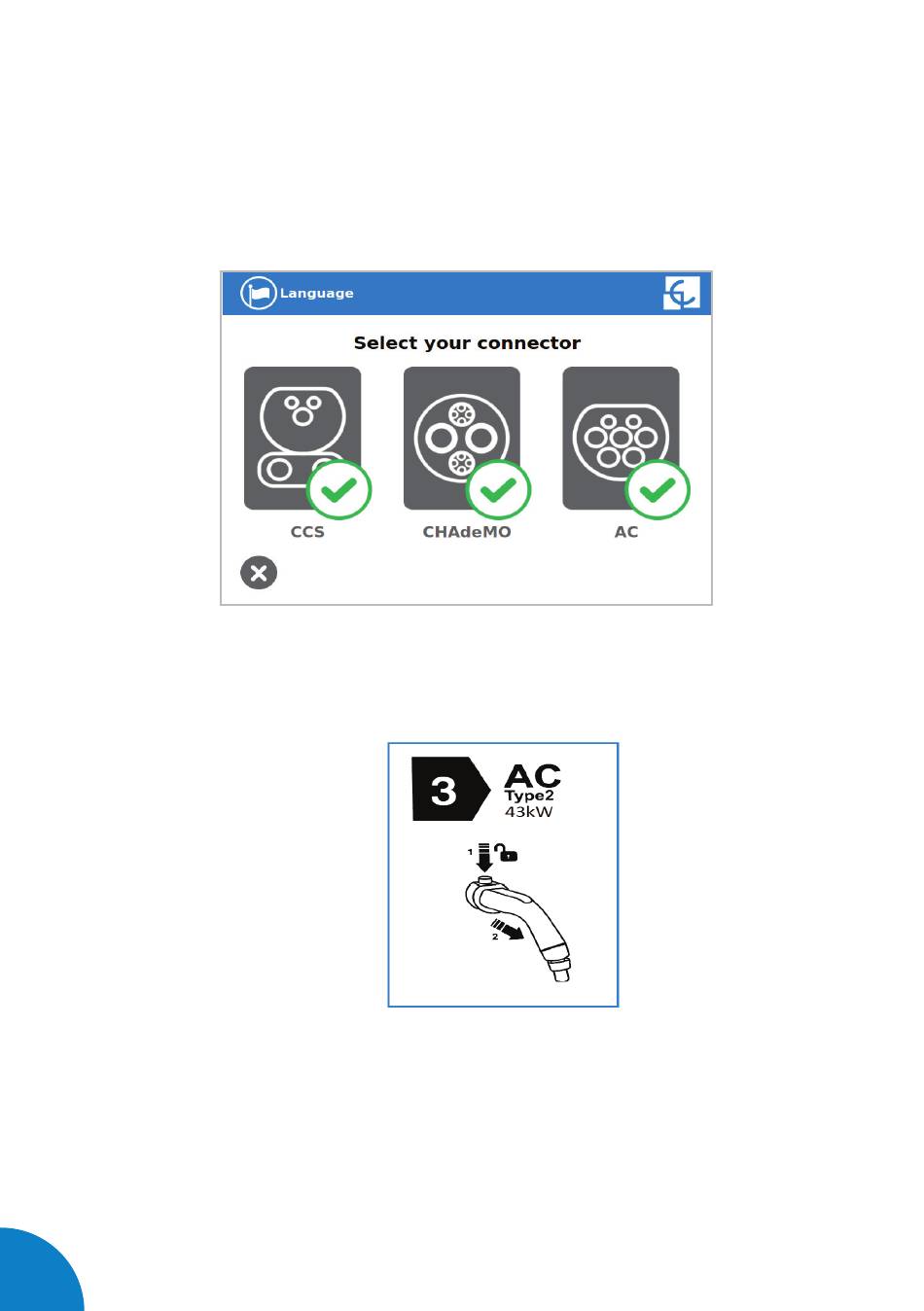

The connectors will be delivered right in the moment than the user push over the
'Connector touching button' when choose the option in the HMI screen:
At the AC side for every Charge Point (It is not an optional device) there is a manual
lock for keeping the connector, follow the indications shown on the label in order to
remove the AC connector.
1- Push over the upper plastic button in order to release the connector.
2- Pull back the connector.
09
