Raption Series

User Manual

Table of Contents

Need help?

Do you have a question about the Raption Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Circontrol Raption Series

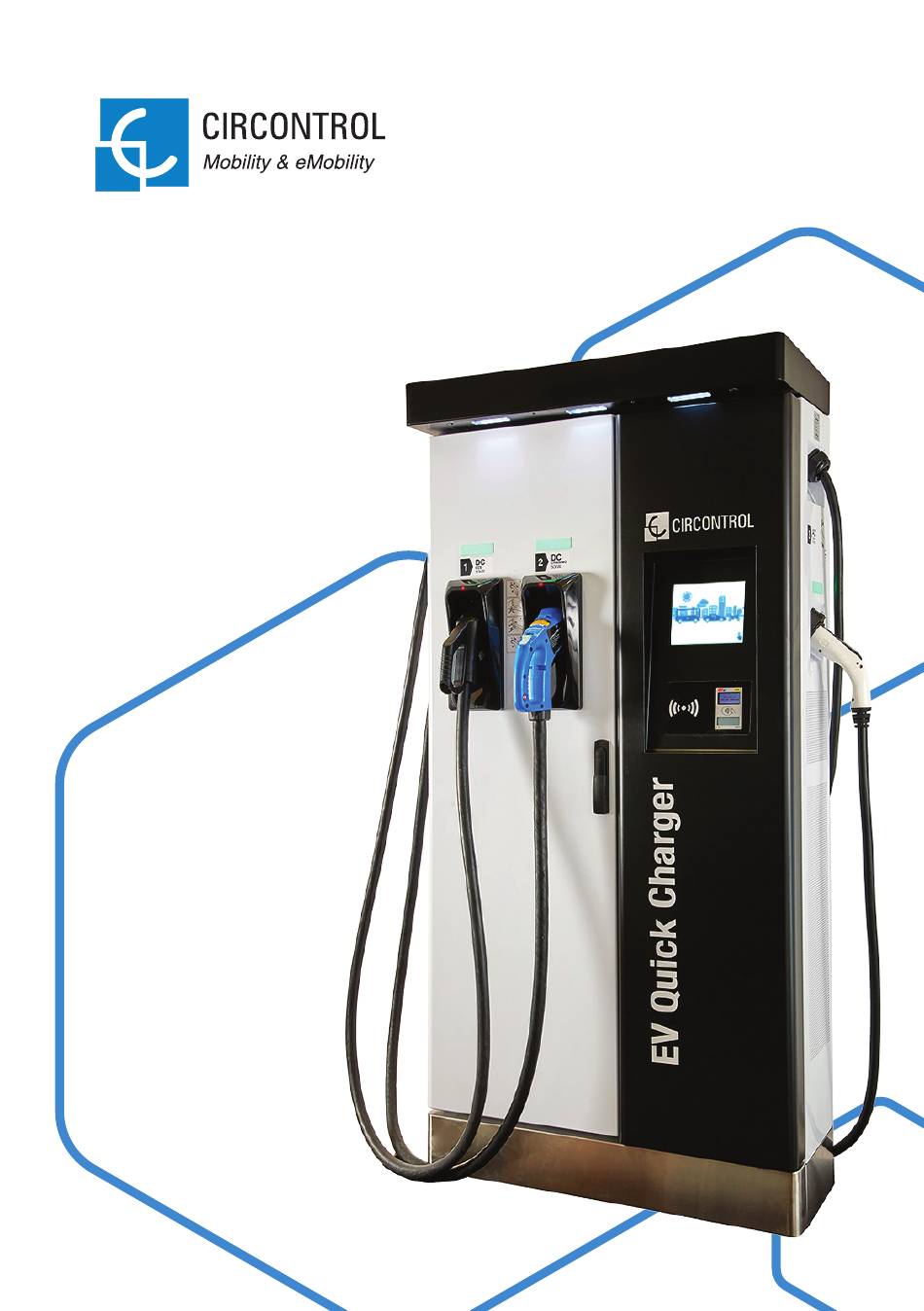

Page 1 Raption Series User Manual...
Page 3 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
Page 5: Table Of Contents
Here’s your guide to use and configure a Raption 1 — So, Hello! 2 — Features A - Main features B - Overview C - Dimensions D - Status Beacon lights E - Connectors 3 — How to use it? A - General B - Starting a charging session C - Special events starting a charge...
Page 6 Raption Series User Manual 4 — How to configure it? A - Introduction B - What is needed? C - Network topology D - LAN connection procedure 5 — Communications A - Introduction B - Modem configuration 6 — Setup Webpage...
Page 7 8 — OCPP 1.6 A - Introduction B- Before starting C- Configuration 9 — Monitoring 10 — Output power setup A - Introduction B - Maximun output power for DC C - Maximun output power for AC 11 — Technical Data A - Raption 50 Standard Model B - Raption 50 480Vac C - Raption 51 &...
Page 8 Charge Point and helps the user to perform charging with a high level of efficiency and safety. The CIRCONTROL Charge Point provides the fastest way to charge electric vehicles nowadays. Its innovative and original design provides a quick and intuitive way for recharging the electric vehicles, according to the current regulations.
Page 9: So, Hello
• Remove from service any item recovery processes. that has a fault that could be dan- gerous for users (broken connec- tors, caps that don’t close...). • Use only Circontrol supplied spare parts.
Page 10: Features
Raption Series User Manual Main features • HMI: there is a TFT colour touch screen of 8 inches, is the interface between the Charge Point and the user. Provides detailed information for starting and stopping the charge, including information concerning the recharge that is in progress (charge state of the battery, charging time remaining, etc).
Page 11: B Overview
Features Overview 4- CHAdeMO 1- Cover Exit AC cable * 3- AC light beacon 5- Unit air inlet connector 6- Power Modules 7- Decorative 8- Decorative rear 10- CHAdeMO 9- Handle air outlet front panel panel holder 12- AC holder or 13- CCS light 14- CHAdeMO light 11- CCS holder...
Page 12: C Dimensions
Raption Series User Manual Dimensions • Units specified in millimeters:...
Page 13: D - Status Beacon Lights
Status Beacon lights Over each connector there is a beacon light, it indicates the state of charge in which the socket/connector is located. Colour Status Description Green Available The connector or socket is available to start a charging session Blue Charging The connector or socket is performing a charging session...
Page 14: E Connectors
Raption Series User Manual Connectors The Charge Point is equipped with three connectors of different load; these can recharge a large range of vehicles: • AC (Mode 3): Type 2 tethered cable (63A/44kW)* or Type 2 socket (32A/22kW)** • DC (Mode 4): CHAdeMO, Tethered cable, 3m. Until 125 A / 50 kW •...
Page 15 Watch Out!! If your Charge Point is equipped with the ‘Mechanical connector locking’ accesory at DC holders, is not possible to pull back the connectors from holders without first unlocking it. There are one label placed between the CHAdeMO and the CCS holders explaining about this function.
Page 16 Raption Series User Manual The connectors will be delivered right in the moment than the user push over the ‘Connector touching button’ when choose the option in the HMI screen: At the AC side for every Charge Point (It is not an optional device) there is a manual lock for keeping the connector, follow the indications shown on the label in order to remove the AC connector.
Page 18 Raption Series User Manual General The first time the Charge Point is powered on, the system will take around 10 seconds for starting up, the screen will show next image: Version In the lower right corner, it shows the firmware version. After that 10 seconds have...
Page 19: How To Use It
How to use it ? Tap over the screensaver, and the HMI will skip to the next screen: Depending on the optionals chosen, the identification methods shown in this picture can vary. At this new screen, the Charge Point is asking for showing the identification method the user is going to use in order to start a charge transaction, as you can see there are three possible options.
Page 20 Raption Series User Manual Also, at this screen and during all the process is possible to change language, pressing on the top of the screen over the ‘Flag’ touch symbol: Next screen will appear, press over your language’s flag:...
Page 21: B Starting A Charging Session
Starting a charging session - Once you have shown your identification card, the HMI will show next screen: Wait while Charge Point performs identification. - If everything is correct and the user is authorized, the HMI will show next screen:...
Page 22 Raption Series User Manual - Now, the user can choose the connector, always depending of the sort of vehicle that you have and if the connector status is available: At any time is possible to press over this button in order to go back to the “identification screen”.
Page 23 2- Checking vehicle connection… Please wait - In a few seconds, the charging session will start and the HMI will show the charging process. Pressing over this button, the screen will go back to the “identification screen”.
Page 24: C Special Events Starting A Charge
Raption Series User Manual Special events starting a charge A - “Not authorized”: some Charge Points could be working under the supervision of the main management system, called Back Office. It can generate a whitelist in order to register new users, manage charging sessions, etc. If the user is not authorized, the HMI will show the following message: B - “Authorization failed”: if there is some communication problem with the Back...
Page 25 C - “Not authorized, Concurrent charge”: in this case, the identifier is already involved in another charge transaction: D - “Not authorized, Authorization expired”: is possible that the back office has put deadline to your identification card and this date is already expired:...
Page 26 Raption Series User Manual E - “Not authorized, Authorization blocked”: is possible that the back office has blocked temporarily your identification card. F – After the user has been properly authorized, just at the moment that has to choose the connector, the screen will show the connectors status. It could appear some problem.
Page 27 G– Almost all vehicles cannot charge if the shift lever is not in parking mode position. This situation can be detected by the Charge Point and it will be displayed by HMI as “Please, check vehicle gear shift position, put it in parking mode”. After check it, press over ‘Retry’...
Page 28: D Stopping A Charging Session
Raption Series User Manual Stopping a charging session The HMI is showing the charging process and next message “Show your identification to stop”, the session can be stopped by the same user that has started it. After showing the identification card, the Charge Point will allow you to stop the...
Page 29 Once you have stopped the charging session the HMI will show the summary screen,. Press over the ‘Exit’ touch button and disconnect your vehicle:...
Page 30: Charging Information
Raption Series User Manual Charging information Depending of the the connector used, the HMI screen can show different process information. The information is almost the same except for few details. The following images show the basic charging process information. 1- Language button: pressing over this button it is possible to change the HMI language.
Page 31: F Charging Summary
Charging summary 1- Language button: pressing over this button it is possible to change the HMI language. 2- Process instructions: different instructions can be displayed. 3- Energy charged: total energy charged at the end of the charging session. 4- Battery SOC: It indicates the final battery state of charge at the end of the charging session.
Page 32: Emergency Button
Raption Series User Manual Emergency button If for any reason the Emergency button is pressed, all in progress charge transactions will be stopped, the beacon lights will turn red and it will not be possible to start new charge transaction until the recovery process is completed successfully. All the power modules will shut down in order to protect the user and the own Charge Point.
Page 33: H Connectors Status
Connectors status The HMI screen shows a different symbols over the connector pictures, as you can see below: - It means that the connector is ready to be used. - This connector is out of service for any technical reason. Press over ‘Information’ touch button in order to get more information about it.
Page 34 Raption Series User Manual - The user cannot use this connector because another user is already using it. - This connector has been reserved and only will be able to use per the user that has made the reserve. NOTE: if the user that has reserved the Charge Point is...
Page 35: I Consulting The Connectors Status
Consulting the connectors status It is possible to press over each connector picture to get more information about the status: 1 — C O N N E C T O R AVA I L A B L E 2 — C O N N E C T O R I N E R R O R...
Page 36 Raption Series User Manual 3 — C O N N E C T O R D I S A B L E D 4 — C O N N E C T O R I N U S E...
Page 37 5 — C O N N E C T O R R E S E R V E D 6 — C O N N E C T O R B L O C K E D P E R R E S E R V E D *Applies only when simultaneously charge is not available.
Page 38 Raption Series User Manual 7 — C O N N E C T O R B L O C K E D P E R C H A R G I N G *Applies only when simultaneously charge is not available.
Page 40 Raption Series User Manual Introduction The Charge Point can be configured and monitored to establish owner preferences or specific setup using integrated Ethernet communication port allocated in HMI screen device (see below). Once Service PC is configured as bellow procedure and connection established with the Charge Point, direct access to the main setup page will be showed.
Page 41: How To Configure It
- Service PC running Microsoft Windows, at least Windows XP . - UTP Cable (Crossover recommended) - IPSetup.exe (*) - CirCarLife Scada Client (*) (*) In order to get the software needed, you can download it from http://circontrol. com/downloads/ or contact with support@circontrol.com...
Page 42: Network Topology
Raption Series User Manual Network topology Connecting the Service PC with Charge Point needs to be done with static IP address and TCP/IP v4 protocol. Next section shows how to do this configuration. Below image shows Ethernet connection topology and the IP addresses used in this guide as example.
Page 43: Dlan Connection Procedure
LAN connection procedure This section provides a step-by-step guide to connect the Service PC to the Charge Point in order to see real-time status. 1- On the Service PC click over the ‘Network icon’ next to the clock of the taskbar, and click on ‘Open Network and Sharing Center’...
Page 44 Raption Series User Manual 3- Make right click on ‘Local Area Connection’ and then click on ‘Properties’ 4- Select ‘Internet Protocol Version 4 (TCP/IP)’ option and click on ’Properties’...
Page 45 5- Setup IP address and subnet mask like as shown here below and click ‘OK’ twice to complete the assigning IP address process to the computer. 6- Now execute IPSetup.exe software provided on the Service PC...
Page 46 Raption Series User Manual 7- Enter the following parameters and click on ‘Configure’ • MAC of the Charge Point (see label on the cover’s screen) • IP address: i.e.(192.168.1.50) • Netmask: i.e. (255.255.255.0) • Gateway: leave default settings. 8- Wait 30 seconds approximately until the process is complete.
Page 47 9- The process will complete when the following message appears, click on ‘OK’ 10- If the message shown is the next one, check the following parameters and click on ‘OK’ • Check IP address entered. • Check the MAC of the device entered. •...
Page 48 Introduction This section describes how to install the SIM card and setting up the modem. The modem that has been installed in Raption Series is Teltonika RUT 240. Modem location The modem is installed inside the unit and the antenna is fixed outside, right on the Charge Point’s roof.
Page 49: Communications
Communications Modem configuration 1 — M O D E M O V E R V I E W The 4G modem installed from factory in the Charge Point is: Teltonika RUT240 This device allows to the Charge Point connects over 4G networks to remotely view or manage the Charge Point status.
Page 50 Raption Series User Manual 2 — C O N N E C T I O N S TAT U S L E D Explanation of connection status LED indication: • Signal strength status LED’s turned on: router is turning on •...
Page 51 3 — S I M C A R D I N S TA L L AT I O N Explanation of SIM card installation: Insert SIM card which was given by your ISP (Internet Service Provider). Correct SIM card orientation is shown in the picture. 1.
Page 52 Raption Series User Manual 4 — L O G G I N G I N After you’re complete with the setting up as described in the section above, you are ready to start logging into your router and start configuring it. This example shows how to connect through WiFi: For cibersecurity reasons, modem’s WiFi connection is...
Page 53 4.3 Open a web browser and type http://192.168.1.1 . Use the following parameters when prompted for authentication, and then either click Login with your mouse or press the Enter key. User name: admin Password: Admin001 You have now successfully logged into the RUT240!, from here on out you can configure almost any aspect of your router.
Page 54 1. If your SIM provider require any authentication ask them about what type, PAP or CHAP, select it on ‘Authentication method’ field and introduce a password and username. 2. If you need to do some custom over the modem configuration, ask the Circontrol Support staff in order to get the Teltonika modem manual.
Page 55 4.6 In order to know if the connection has been done properly, check next steps: Go to Status > Network > Mobile and pay attention to Data connection state, it has to be Connected Go to Status > Network > WAN and pay attention to IP address, the modem must has found a public IP address...
Page 56 Raption Series User Manual Go to Status > Network > LAN > DHCP Leases and pay attention to IP addresses At ‘DHCP Leases’ check that the modem has detected the automatic IP address and MAC number for both, your Service PC and the Charge Point.
Page 57 4.7 Go to Network > LAN > Static Leases Complete the fields with next information: Hostname - It can be written the name that you want for your Charge Point. It is highly recommended to name it keeping this structure: ChargePoint_xxxxxxxxxxxx, to identify it easier.
Page 58 Raption Series User Manual 4.8 Disconnect the MCB Q10.1 (Q14.3 in case of Raption 51, Raption 52 and Raption 100) inside the Charge Point in order to do a hard reset over the modem and the HMI screen, after 10 seconds switch ON again the MCB.
Page 59 4.10 Now, go again to Status > Network > LAN > DHCP Leases and confirm that the information written at the point 4.7 has been successfully recorded: Hostname - the name given for Charge Point MAC address - the MAC of the Charge Point IP address - 192.168.1.50...
Page 60 Raption Series User Manual 4.11 Go to Network > Firewall > Port Forwarding > New Port Forward Rule The ports that you can see in the table below are introduced in the modem by default, although only the named 50000 and 9191 are enabled:...
Page 61 4.12 Go to Network > Firewall > Traffic Rules Roll down and look for ‘Enable_HTTP_WAN’ and ‘Enable_HTTPS_WAN’ fields and enable these. Roll down again and push over ‘Save’ button.
Page 62 Raption Series User Manual 4.13 For ending with the modem logging is necessary to do a reboot: Go to System > Reboot and push over the ‘Reboot’ tab During the process, the system will show the progress, do not switch off the modem.
Page 63 4.15 It is necessary to check that the Teltonika RUT240 LTE modem option is chosen at Charge Point’s setup webpage: Make sure that your Service PC is still connected with the Charge point through wifi, open a web browser and type 192.168.1.50. Go to Configuration >...
Page 64 Raption Series User Manual Setup webpage allows managing network setup, upgrading devices and other options. Once the Service PC is already connected to Charge Point, it is possible to open Setup Webpage through the IP entered. In the example shown in the previous section, it has been set 192.168.1.50...
Page 65: Setup Webpage
Setup Webpage Dashboard COMMUNICATIONS As a relevant information, it shows: Value Description Short for Internet Protocol. Identifier that allows information to be sent between devices on a network. MAC Address Identifier of the network card of the Charge Point CHARGE POINT It is displayed if the Charge Point is available to be used or not.
Page 66: B Monitor
Raption Series User Manual Monitor In this section, it can be consulted the status of the Charge Point, the type of connectors it has and the availabilty of them. It is possible to start or stop a charging session, able or disable a connector or lock or unlock it remotely.
Page 67: C Historic
Historic This section provides information of every charge transaction started in the Charge Point. It can be checked date and hour of begin and end of a charge transaction, energy charged, alias of the user and type of charge used. All of this elements have the chance to be organised depending on the user needs.
Page 68: D Integrations
Raption Series User Manual Integrations Clicking over the ‘Integrations’ tab, user will be able to activate OCPP integrations. NOTE: the integration of the Charge Point needs a separate chapter. In the next chapters number 6 and 7 it is explained how to integrate OCPP.
Page 69: E Configuration
Configuration In this section, there can be adjusted many different settings related with the Charge Point, depending on the elements it has and level of security it is desirable to have. IDENTIFICATION METHOD It is possible to enable or disable the option to use the Charge Point with or without identification and also if the user is capable to stop charge transaction.
Page 70 Raption Series User Manual Enable ChargeBox Id option allows the system to differentiate every single charge point separately, in order to use this data by the back end system. As a Pre-authorisation amount, it can be configurated the amount of money that the bank blocks to the user once the charge transaction starts.
Page 71 CHARGE: The Charge Point is capable of balancing the available power based on the number of outlets in use. NOTE: Option only available in Master-Satellite solution, see Master- Satellite user manual for more information. Value Description Power Balance The Charge Point is capable of balancing the available power based on the number of outlets in use (only available in Master-Satellite solution).
Page 72 Raption Series User Manual Value Description Shared power It indicates the power available to divide between the Max.current supply (A) is the connected vehicles. The available power ONLY for AC outlets. OCPP-Smart The power balance is made via OCPP. Charging...
Page 73 COMMUNICATIONS This section provides basic configuration of the network parameters. DHCP server (router) means to enable or disable the IP address assignment. To be enabled when working with the integrated modems.
Page 74 Raption Series User Manual Short for Human Machine Interface. In this section, there can be adjusted many settings related with the Display. In General tab it is possible to adjust screen brightness and enable or disable the email support and timeout. Also, in the Charge Point can be uploaded up to 20 languages between the wide variety able to choose.
Page 75 In Screensaver tab it is possible to adjust timeout and brightness and enable or disable advertisements, what lets customise the Screensaver image by uploading a file. TARIFFS In this section, it can be adjusted the cost of a charge transaction in the Raption station. These settings are just displayed to inform the customer.
Page 76 Raption Series User Manual There are few parameters that can be adjusted: Value Description Currency Choose the proper currency according to the area the Charge Point is installed Price Limit Maximum cost of the charge transaction Fixed service fee Price of a new charge transaction...
Page 77 SECURITY Value Description ENABLE: Information transferred between Charge Point and laptop is Allow only secure strictly encrypted. connections Once enabled, it must be done some modifications in modem configuration, as explained below. DISABLED: not possible to assure secure connections between Charge Point and laptop.
Page 78 Raption Series User Manual Configure modem to allow secure connections: After you’re complete with the setting up as described in the section 5, you are ready to start logging into your router and start configuring it. 1. Go to Network > Firewall > Port Forwarding > Port Forwarding Rules Locate the port named “Enable_ HTTPS_WAN_PASSTHROUGH”...
Page 79 2. Go to Network > Firewall > Port Forwarding > New Port Forward Rule At the bottom part of the screen, add a new port forward rule with the following parameters and once introduced click Add button: Name: Enable_HTTPS_WAN_OCPP Protocol: TCP External port: 8443 Internal IP: 192.168.1.50 Internal port: 8443...
Page 80 Raption Series User Manual 3. Go to Network > Firewall > Traffic Rules Locate the port named “Enable_ HTTPS_WAN” and click Edit button. Once in Edit screen, insert 192.168.1.50 in "Destination address" field and 443 in "Destination port" field; then click Save button.
Page 81 4. Go to Network > Firewall > Traffic Rules At the bottom part of the screen, add a new traffic rule with the following parameters and once introduced click Add button: Name: OCPP Protocol: All Destination address: 192.168.1.50 Destination port: 8443 Check that the new line appears and tap enable check in case is disabled.
Page 82: Maintenance
In this section, it can be consulted the status of the devices which are communicating via RS-485. UPDATES Through this tab, the Charge Point firmware and the application can be upgraded remotely. To obtain the latest firmware version or need any special configuration update, please contact CIRCONTROL Support Department.
Page 83 DIAGNOSTICS Clicking over the ‘HW Testing’ tab, it appears to enable or disable Grid test option. That means HMI shows a test screen to check that touch function works properly. The logs shown in this section are automatically produced by the Charge Point. It is a detailed list of the charging sessions, system performance or user activities.
Page 84: System Status
Raption Series User Manual SYSTEM STATUS The information shown in this section is basically relative to the state of the PC of the Charge Point. It is necessary for the technical service staff but does not show any information regarding to the external connection of the Charge Point or to the charging session.
Page 85 Next, we will explain the different sections of the 'Date and time' and 'Reset' Value Description Time Zone Select the regional time for the Charge Point according to the location Time Current date and time of the Charge Point Primary NTP Server Synchronize the time through internet automatically Secondary NTP Server...
Page 86 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.5 in the Circontrol Charge Points.
Page 87: Ocpp 1.5
OCPP 1.5 Before starting Check following steps in order to ensure the correct function of OCPP 1.5: Go to the Setup Webpage > ‘Configuration’ tab > ‘Communications’ tab Once in ‘General’ section, ‘Public IP source’ establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.
Page 88 Raption Series User Manual Go to the Setup Webpage > ‘Integrations’ tab > ‘General’ tab Choose the option selected under ‘Available integrations’ according to your backend policies as shown in the picture: Charge Point supports different versions of OCPP but only one can be enabled at the same time.
Page 89: C Configuration
Configuration Go to the Setup Webpage > ‘Integrations’ tab > ‘Network’ tab In this section it is possible to modify some parameters related with network. Value Description Incoming OCPP Incoming listening port for remote request (internal) TCP Port (Internal) Incoming OCPP Incoming listening port for remote request (public) TCP Port (External) Protocol...
Page 90 Raption Series User Manual Go to the Setup Webpage > ‘Integrations’ tab > ‘Settings’ tab Check OCPP Settings according to the backend policies, please contact to the Central System to get the configuration parameters: Before making any changes read following table and...
Page 91 Value Description ENABLED: Synchronization of date and time. DISABLED: Synchronization of date and time. Use OCPP time synchronization *NOTE: Date and Time is sent from backend on each heartbeat response. PARTIAL: Sends partial energy consumption while vehicle is charging. Energy for MeterValues TOTAL: sends the actual count of the total accumulated energy meter.
Page 92 Raption Series User Manual Value Description ID Tag Endianness Storage type for system data. Able to choose between (LITTLE>BIG) ENABLED: Send power (Power.Active.Import) and energy (Energy.Active.Import.Register) consumed by the vehicle within meter values requests. Include Power Active Import in MeterValues DISABLED: Only enrgy consumed is sent within meter values request.
Page 93 Value Description ENABLED: If StatusNotification, StartNotification or StopNotification are not received correctly by the backend, the Charge Point retries again to send those requests until it is received correctly. Retry after CS internal DISABLED: The Charge Point is not allowed to retry after error an internal error.
Page 94 Raption Series User Manual Go to the Setup Webpage > ‘Integrations’ tab > ‘SSL Certificates’ tab When working with ‘secure’ connections, HTTPS, a certificate from the backoffice (normally a ‘bundle’ file) may be needed to assure proper communication with the charging station.
Page 95 Go to the Setup Webpage > ‘Integrations’ tab > ‘Configuration keys’ tab Value Description Heartbeat interval Number of seconds between Heartbeats. *NOTE: setting this value to 0 disables the Heartbeat. Metervalues Number of seconds between MeterValue during an ongoing sample interval Charge Transaction.
Page 96 Raption Series User Manual Go to the Setup Webpage > Integrations > ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded...
Page 98 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.6 in the Circontrol Charge Points.
Page 99: Ocpp 1.6
OCPP 1.6 Before starting Check following steps in order to ensure the correct function of OCPP 1.6: Go to the Setup Webpage > ‘Integrations’ tab > ‘General’ tab Once in ‘General’ section, Public IP source establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.
Page 100: C Configuration
Raption Series User Manual Configuration Go to the Setup Webpage > ‘Integrations’ tab > ‘General’ tab Charge Point supports different versions of OCPP but only one can be enabled at the same time. Go back to setup web page and click on the ‘Integrations’ tab, choose the option selected under ‘Available integrations’...
Page 101 Value Description Charge Point ID Charge Point identifier Basic Set an authentication if required, being the options 'Enabled' and Authentication 'Disabled' Connection URL URL address of the central system CS-Password Introduce CS-Password if required...
Page 102 Raption Series User Manual Go to the Setup Webpage > Integrations > ‘Settings’ tab Once OCPP 1.6 option is selected, a link appears allowing access to the OCPP configuration. Please, click on the link button as shown in the picture:...
Page 103 Value Description ENABLED: Synchronization of date and time Use OCPP time synchronization DISABLED: Synchronization of date and time *NOTE: Date and Time is sent from backend on each heartbeat response. PARTIAL: Consumed value of energy by the vehicle sent between Energy for Start/ Stop transaction start and stop.
Page 104 Raption Series User Manual Go to the Setup Webpage > Integrations > ‘SSL certificates’ tab For WSS connections is needed a Central System certificate. Upload it in this section. To obtain the latest certificates, please contact Central System you are working with.
Page 105 Go to the Setup Webpage > Integrations > ‘Configuration keys’ tab...
Page 106 Raption Series User Manual Value Description ENABLED: maintain a local list of all presented identifiers that Authorisation cache have been successfully authorized by the Central System. DISABLED: authorization for presented identifiers is requested directly to the Central System ENABLED: the Charge Point asks for authorization when the...
Page 107 Value Description ENABLED: during offline period locally-authorized identifiers are Local authorisation off-line allowed to start charging DISABLED: during offline period locally-authorized identifiers are NOT allowed to start charging ENABLED: stop existing Charge Transaction after response from Stop transaction on invalid ID Central System when user is blocked, expired or invalid.
Page 108 Raption Series User Manual Go to the Setup Webpage > Integrations > ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded...
Page 109 Go to the Setup Webpage > Integrations > ‘Security’ tab In this chapter could be introduced a user and password in order to enter in this section. It is possible this option to be changed whenever is desired. NOTE: Old password is 1234 by default.
Page 110 The IP address assigned in the section 4, will be useful to connect with the Charge Point in order to monitor the real-time status. The main way to connect is using the CirCarLife client software (Supplied by Circontrol Support Department).
Page 111: Monitoring
Monitoring...
Page 112 Raption Series User Manual Introduction This section shows how to manage the output power delivered by the Charge Point for DC and AC. To do this action you have to keep connected through the program CirCarLife Client software. Limiting the output power will be useful if the input power supply for the Charging Point is not enough powerful to feed and keep a good level of charge for electric vehicles.
Page 113: Output Power Setup
Output power setup Maximum output power for DC Steps: 1- Execute CirCarLife Client software 2- Push on ‘General’ tab and after on ‘Connect’ tab...
Page 114 Raption Series User Manual 3- Enter the IP address given to the Charge Point and port number , after, press over ‘Ok’ 4- Press on the ‘Device’ tab icon at the TOOLBAR and after click on ‘DC-Mode 4’: NOTE: inside DC-mode 4 is necessary to modify the output power for both DC charges...
Page 115 5- Once the ‘DC-Mode4’ device is already opened, press over the ‘CHAdeMO- General 1’ tab: 6- Once the ‘CHAdeMO-General 1’ is already opened, press over ‘Setup’ tab:...
Page 116 Raption Series User Manual 7- The pop-up window below appears, at ‘Limit Power’ tab it is possible to set the maximum DC power output, it can be selected from 10000 W until 50000 W. Click ‘OK’ to confirm changes. NOTE: It is mandatory to write the same variables for CHAdeMo as for Combo (CCS).
Page 117 8- After changing the CHAdeMO output power, we are going to change the CSS output power, press over ‘Combo - General 1’ tab and then over ‘Setup’ tab: 9- Force the ‘Limit power’ variable between 10000 W until 50000 W as has been shown in the previous step 7 for CHAdeMO.
Page 118: C - Maximun Output Power For Ac
Raption Series User Manual Maximum output power for AC For setting the maximum output power for AC is necessary to use de software ‘Charge Point Setup’, ask for it to the CIRCONTROL technical support staff. Steps: 1- Execute Charge Point Setup 2- Introduce the Charge Point’s IP and push over ‘Connect’...
Page 120: A Raption 50 Standard Model
Raption Series User Manual Raption 50 Standard Model GENERAL DATA AC Power Supply 3P + N + PE AC Voltage 400V AC +/- 10% Power Factor >0.98 Efficiency 95 % at nominal output power Frequency 50 / 60 Hz Electrical input protection...
Page 121: Technical Data
Technical Data Cable Length 3 m (all cables) Lights for status indication RGB colour indicator Dimensions (D x W x H) 355x940x1800 mm (without cable engaged) Weight 235 kg Cooling system Air cooling fans Operational noise level < 55 dBA AC Meter Compliant with the EN 50470-1 and EN 50470-3 (MID European standards) or IEC 62052-11...
Page 122 Raption Series User Manual...
Page 123 Models Specifications MODELS CCS T2C32 CCS T2S32 Maximum AC input current 76 A (38 A*) 108 A (70 A*) 108 A (70 A*) Required power supply 53 kVA (26 kVA*) 75 kVA (48 kVA*) 75 kVA (48 kVA*) capacity Maximum output power 50 kW (25 kW*) DC:50 kW (25 kW*) DC:50 kW (25 kW*)
Page 124: B Raption 50 480Vac
Raption Series User Manual Raption 50 480Vac ADDITIONAL SPECIFICATIONS Power supply III 3P + N + PE Voltage range III 480/277 Vac +/- 10% Power supply II Voltage range II 208-240 Vac +/- 10% Frequency 60Hz...
Page 125 Models Specifications MODELS CCS CHA T2S32 CCS CHA T2C32 CCS CHA Maximum AC input current 108 A 108 A 76 A Required power supply capa- 75 kVA 75 kVA 53 kVA city DC:50 kW (@400 VDC) DC:50 kW (@400 VDC) 50 kW Maximum output power AC:22 kW...
Page 126: C Raption 51 & Raption
Raption Series User Manual Raption 51 & Raption 52 ADDITIONAL SPECIFICATIONS Raption 51 Power output DC of 50 kW (non upgradable) Raption 52 Power output DC of 50kW (upgradable up to 100kW) Output voltage range 150 -920 Vdc...
Page 127 Models Specifications MODELS CCS T2C32 CCS T2S32 Maximum AC input current 76 A 108 A 108 A Required power supply 53 kVA 75 kVA 75 kVA capacity Maximum output power 50 kW (@400 VDC) DC:50 kW (@400 VDC) DC:50 kW (@400 VDC) AC:22 kW AC:22 kW Output voltage range...
Page 128: D Raption 100 Standard Model
Raption Series User Manual Raption 100 Standard Model GENERAL DATA AC Power Supply 3P + N + PE AC Voltage 400V AC +/- 10% Power Factor >0.98 Efficiency 95 % at nominal output power Frequency 50 / 60 Hz Electrical input protection...
Page 129 Cable length 3 m (all cables) Lights for status indication RGB colour indicator Dimensions (D x W x H) 355x940x1800 mm (without cable engaged) Weight 255 kg Cooling system Air cooling fans Operational noise level < 55 dBA AC Meter Compliant with the EN 50470-1 and EN 50470-3 (MID Euro- pean standards) or IEC 62052-11 Wireless Comunication EU...
Page 130 Raption Series User Manual...
Page 131 Models Specifications Models CCS T2C32 CCS T2S32 Maximum AC input 160 A 192 A 192 A current Required power supply 110 kVA 132 kVA 132 kVA capacity Maximum output power 100 kW (@400 VDC) DC:100 kW (@400 VDC) DC:100 kW (@400 VDC) AC:22 kW AC:22 kW Output voltage range...
Page 132: E - Raption 100 480Vac
Raption Series User Manual Raption 100 480Vac ADDITIONAL SPECIFICATIONS Power supply III 3P + N + PE Voltage range III 480/277 Vac +/- 10% Power supply II Voltage range II 208-240 Vac +/- 10% Frequency 60Hz...
Page 133 Models Specifications Models CCS T2C32 CCS T2S32 Maximum AC input 160 A 192 A 192 A current Required power supply 110 kVA 132 kVA 132 kVA capacity Maximum output power 100 kW (@400 VDC) DC:100 kW (@400 VDC) DC:100 kW (@400 VDC) AC:22 kW AC:22 kW Output voltage range...
Page 134 Raption Series User Manual...
Page 135: Need Help
Need help? In case of any query or need further information, please contact our Support Department support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941...
Page 136 CIRCONTROL Raption Series USER MANUAL A comprehensive guide on how to use and configure your Raption Charging Station. V5.0, September edition 2022 R542 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
