Raption Series User Manual

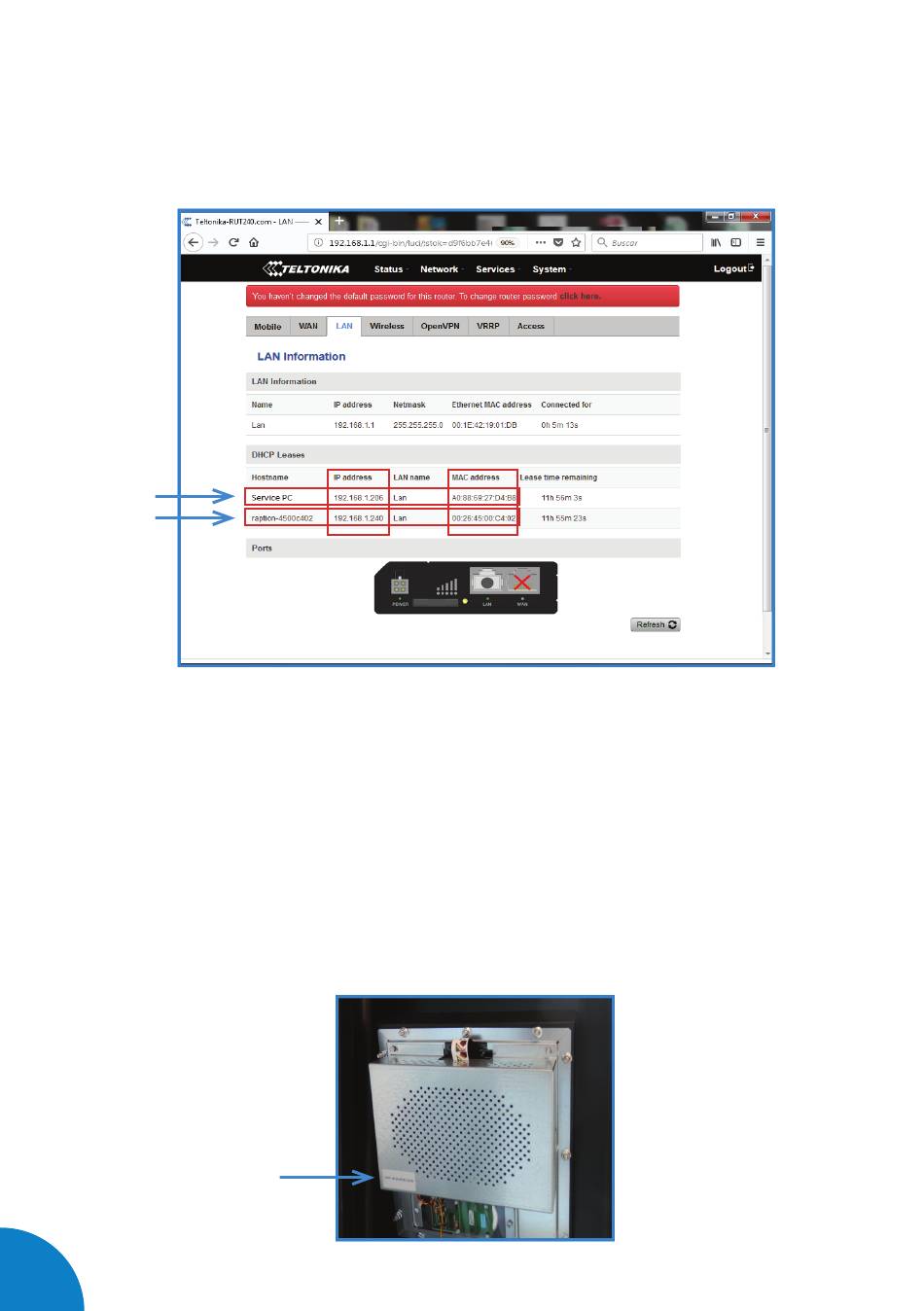

Go to Status > Network > LAN > DHCP Leases and pay attention to IP addresses
At 'DHCP Leases' check that the modem has detected the automatic IP address and
MAC number for both, your Service PC and the Charge Point.
NOTES:
1. If the modem has not detected the automatic IP address, switch off the Q10.1
circuit breaker for Raption 50 (Q14.3 in case of Raption 51, Raption 52 and Raption
100) , wait for 10 seconds and switch on again. Connect again your Service PC to the
access point named ChargePoint_xxxxxxxxxxxx, and repeat the steps 4.3 y 4.6.
2. To make sure that the Charge Point' s MAC number is correct, it can be seen in one
label behind the HMI screen.
49
