F Charging Summary - Circontrol Raption Series User Manual

Charging summary
F
1
2
3
4
5

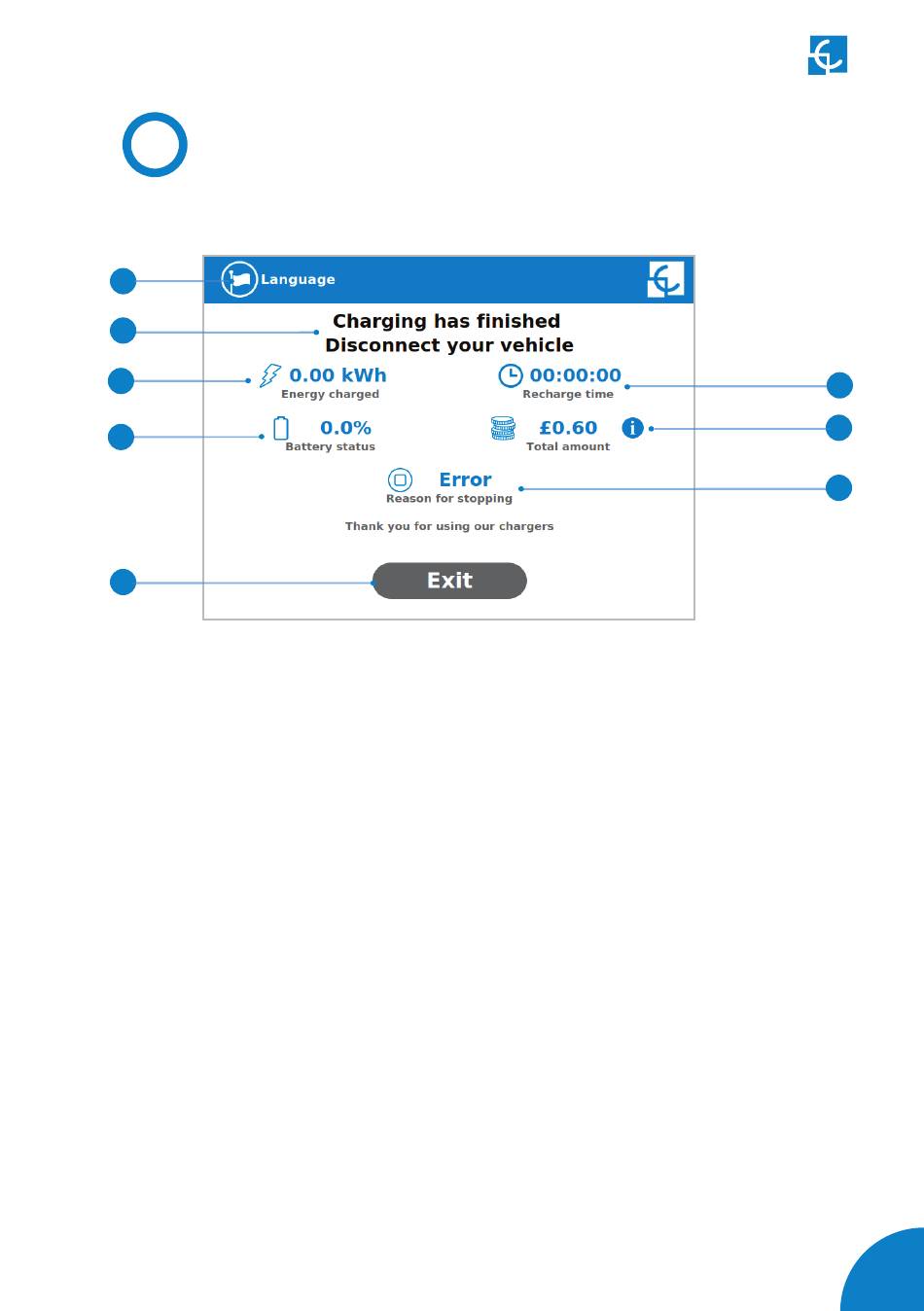

1- Language button: pressing over this button it is possible to change the HMI language.
2- Process instructions: different instructions can be displayed.
3- Energy charged: total energy charged at the end of the charging session.
4- Battery SOC: It indicates the final battery state of charge at the end of the charging
session.
5- Exit button: It has to be pressed in order to finish the charging session. After
pressing, the HMI screen will go back to the "identification screen".
6- Recharge time: total recharging time at the end of the charging session.
7- Information button: pressing over this button you can get information about the
charging session tariff applied.
8- Stop reason: It shows why the charging session has been stopped.
6
7
8
