E Connectors - Circontrol Raption Series User Manual

Raption Series User Manual
E
Connectors

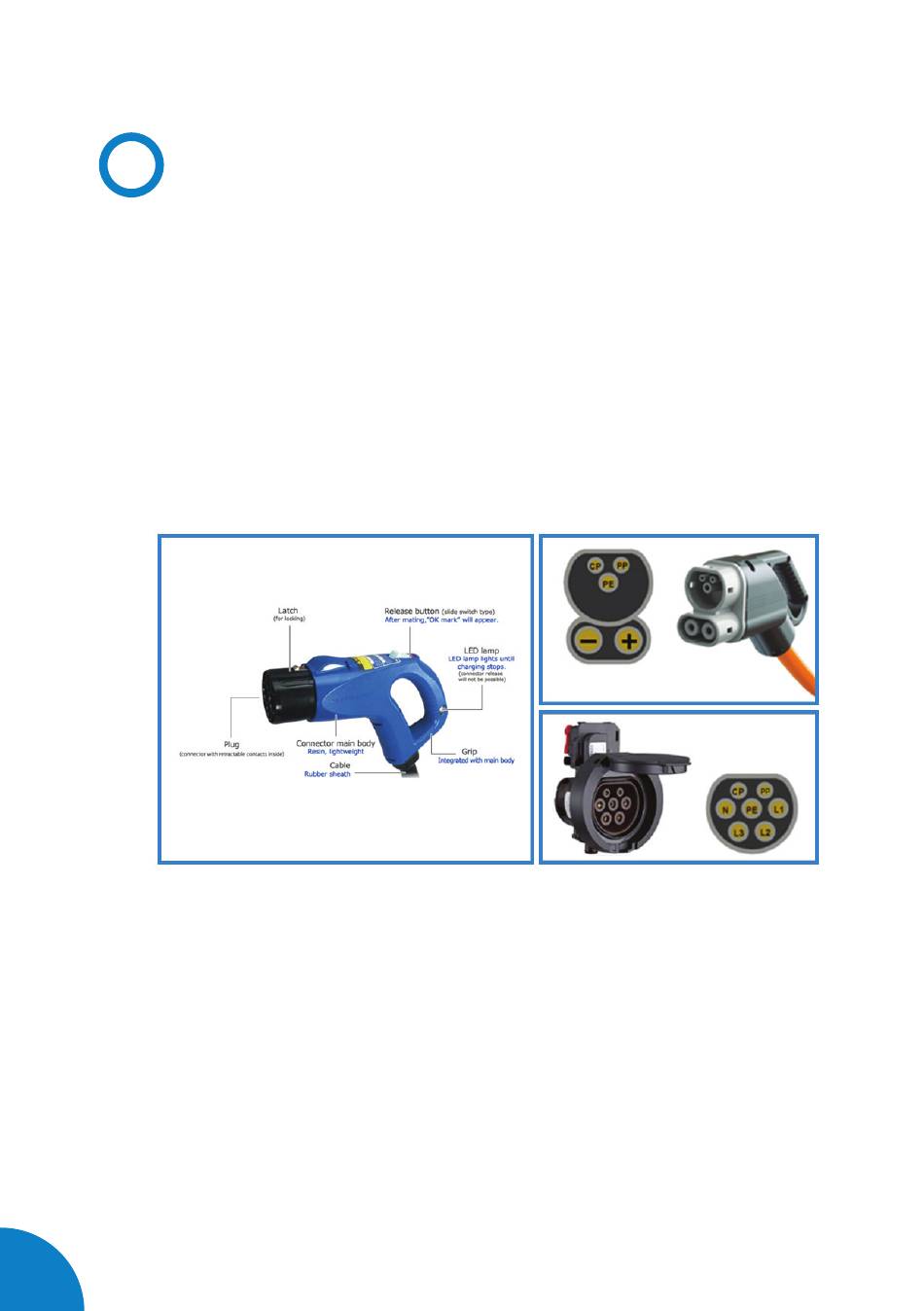

The Charge Point is equipped with three connectors of different load; these can
recharge a large range of vehicles:
• AC (Mode 3): Type 2 tethered cable (63A/44kW)* or Type 2 socket (32A/22kW)**
• DC (Mode 4): CHAdeMO, Tethered cable, 3m. Until 125 A / 50 kW
• DC (Mode 4): Combo 2 (CCS), Tethered cable, 3m. Until 125 A / 50 kW
(*) Only available in Raption 50 Standard Model, Raption 51 and Raption 52.
(**) Depending on the model, the components can vary.
The following considerations, before using this Charge Point, must be considered.
Of the three types of charges that the Charge Point can perform, it can carry out:
• Only AC
• Only DC CHAdeMO
• Only DC CCS 2
• Simultaneous, AC and one DC connector at the same time
